SC-VECTOR
Advantages:
- Compatible to:

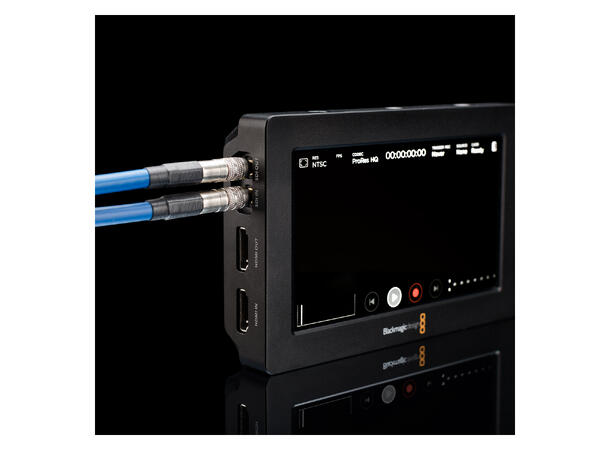

- Blackmagic Video Assist
- Blackmagic Microstudio Camera
- Blackmagic DeckLink Quad 2
- AJA KONA 3G
- AJA KONA 4
Application:

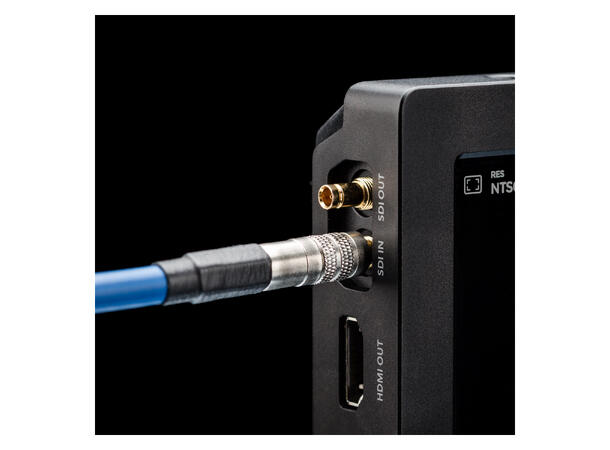

- Adapter cable for SDI in / out
Configuration:

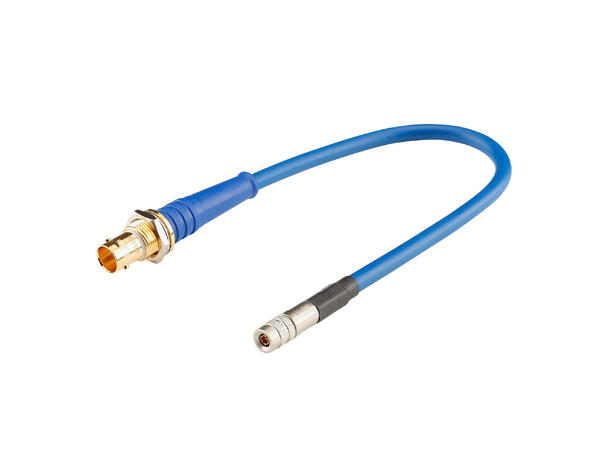

0,50 m video cable SC-Vector (RCB); 1 x 0,80; PVC Ø 6,00 mm; blue (600-0162)
1 x , straight (HI-DIN1.0/2.3)
0,05 x BTM095/TR
1 x HICON BNC 3G-SDI crimp-female connector 0.8/3.7, ground isolated, thread 1/2', gold (BNC0.8/3.7FEH)
1 x Sleeve supports for BNC59, BNC0.6 / 3,7, BNC0.8 / 3.8, BNC0.66 / 3.2 blue (KS59-BL)
0,05 x BTM095/TR
Specifications:
| EAN | 4049371331807 |
|---|
| Colour | blue |
|---|
| Length m | 0,5 |
|---|
| Available since | V07.1 |
|---|
| Article number | VTBER |
|---|
| Brand | Sommer cable |
|---|
| Application | video |
|---|
| Inner conductor | 1 |
|---|
| Inner conductor mm² | 0,50 |
|---|
| Inner conductor Ø mm | 0,8 |
|---|
| AWG | 20 |
|---|
| diameter Ø mm | 6 |
|---|
| Type | BNC |
|---|
| Type | DIN 1023 |
|---|
| Type (detailed) | BNC0.8/3.7FEH |
|---|
| Type (detailed) | 75 Ohm 2-piece DIN 1.0 / 2.3 |
|---|
