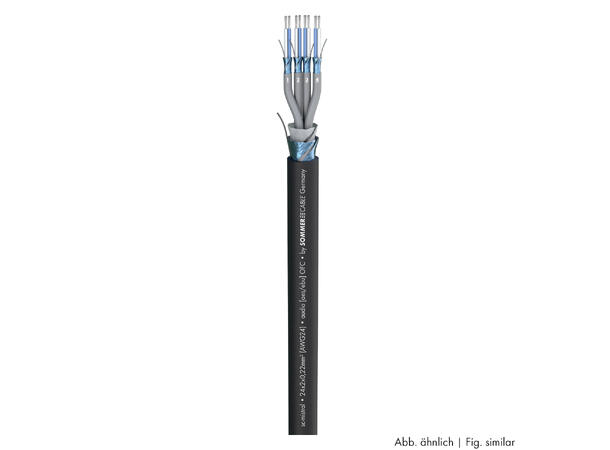

SOMMER Mistral MCF12 Multikabel

sort | 2 x 0,22 mm², 12 par

Varenr: 141238
Alt. varenr: 100-0101-12
175,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Antall par
2
2
4
4
8
8
12
12
16
16
24
24
32
32
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Almost as old as Methuselah...

that’s the SC-Mistral MCF multipair. We have been making it for almost 10 years using the same proven technology. The SC-Mistral MCF features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8.

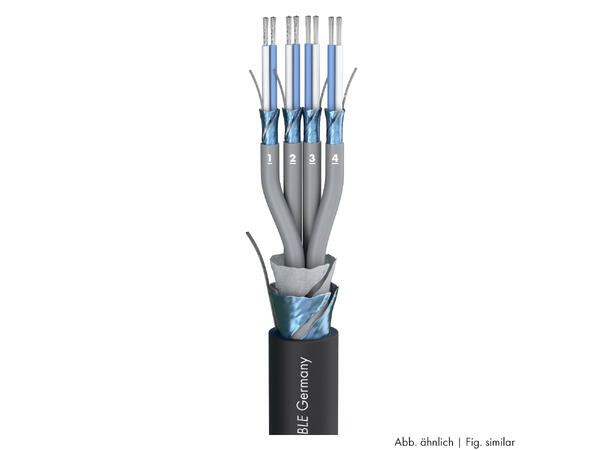

The wire pairs of the SC-Mistral MCF have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The SC-Mistral MCF is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket.


Advantages:

  • Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve
  • Very flexible and tread-resistant owing to the use of a rubberlike jacket material
  • Simple and fast handling due to the use of compound foil and a pre-twisted drain wire
  • High bending cycles due to the tightly stranded Cu litz wires
  • Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs
  • High transmission quality even with excess distances (low capacitance!)
  • Affordable price

Application:

  • Ideal for studio installation and permanent installation
  • Fixed installation in theatres, public buildings etc.
  • Construction of dependable cable reel systems


Specifications:

Article number100-0101-12
NameSC-Mistral MCF12
EAN4049371000734

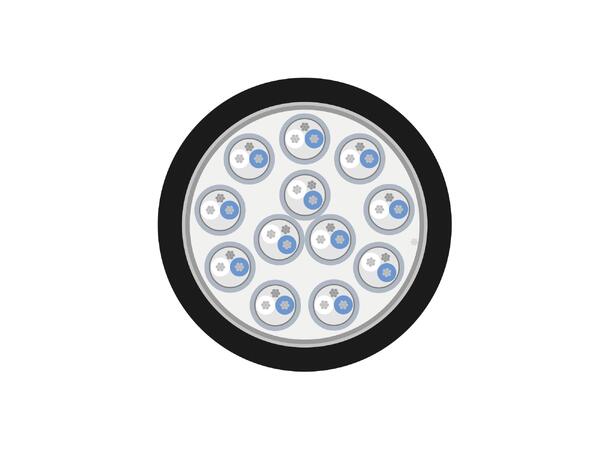

Construction12(2LI2Y0,22mm²)(ST)YF(ST)Y
Jacket Ø mm17,60
Number of Channels (audio)12
Weight per 1 m g338
Fire load per m kWh1,78
Width mm17,6
Height mm17,6
Article number100-0101
NameSC-Mistral MCF
PropertiesOFC oxygen free copper
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
Application areaMobile outdoor / indoor
Application areaInstallation
Application areaStudio / Broadcast
ApplicationMultipair
Colourblack
Colour detailedblack, mat
Signal transmissionsymmetrical
Number of Channels (audio)2
Number of Channels (audio)16
Number of Channels (audio)4
Number of Channels (audio)24
Number of Channels (audio)8
Number of Channels (audio)32
Number of Channels (audio)12
Inner conductor (audio)2
Inner conductor (audio) mm²0,22
Inner conductor Ø (audio) mm0,53
AWG (audio)24
ShieldingAL / PT foil + total foil shielding + filler strand
Shielding factor %100
Copper strands (audio)7
Copper strand Ø (audio) mm0,20
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,60
UV-resistantyes
Style variantround
Packingbulk stock
Temperature min. °C-30
Temperature max. °C70
Capac. cond./cond. per 1 m (audio) pF46
Capacity wire/wire at 1 ft. (audio) pF14,0208
Capac. cond./shield. per 1 m (audio) pF85
Capacity wire/electic screen at 1 ft. (audio) pF25,908
Impedance O110
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O80
Conductor resistance per 1000 ft. O24,384
Shield. resistance per 1 km O75
Shield. resistance per 1000 ft. O22,86
BPVo-EuroclassFca
