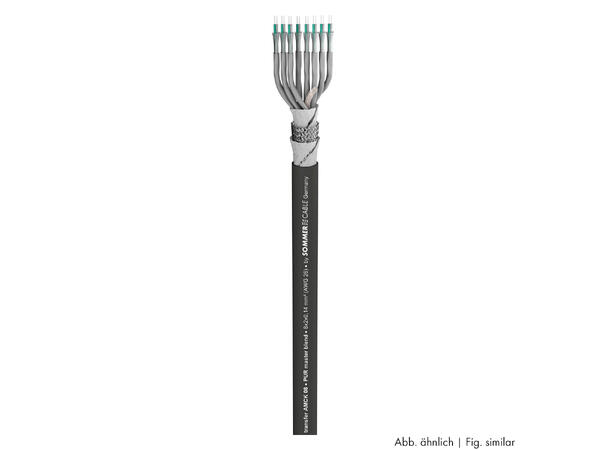

SOMMER Transfer AMCK32 Multikabel

PUR, sort | 2 x 0,14 mm², 32 par

Varenr: 141253
Alt. varenr: 100-0401-32
513,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Antall par
8
8
12
12
16
16
32
32
48
48
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

5 years on probation...

this is what all sound people, broadcasting and TV personnel have been waiting for! Together with leading sound companies and employees from different broadcasting stations our technicians have developed a new multipair cable for tough outdoor applications.
As of now the new SC-Transfer AMCK HIGHFLEX Multipair with the ”MASTER BLEND“ PUR jacket is available from stock.
This jacket is so notch-resistant and robust that we can grant you a 5 year warranty on the bulkware!
To keep it that way in the winter, we have fitted a high-quality, coldresistant and sturdy PUR jacket (PMB). This guarantees temperature stability down to –40 °C, furthermore it is also very heat- and notchresistant.
The PUR jacket and the wire insulation of a special TPC-ET were made for extreme applications, i.e. bending, dragging on the ground and even heavy tugging won’t barely harm this cable.
Of course, this cable can also be used as a high-quality stage or installation cable.


Advantages:

  • Super small in diameter and very robust
  • Extra paired insulation with a numbered PVC sleeve

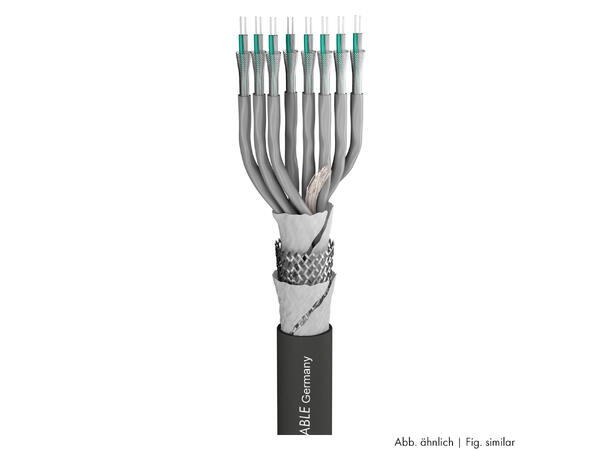

  • Excellent shielding against interference due to the dense overall screen made of a tinned Cu mesh plus a helical Cu mesh around each wire pair
  • Very good audio transmission due to the tightly stranded copper litz wires

Application:

  • Reelable cable for broadcasting and OB van
  • Permanent indoor and outdoor installation
  • Extremely robust stage cable for high-quality stagebox systems
  • Perfect studio line due to the high protection against interference


Specifications:

Article number100-0401-32
NameSC-Transfer AMCK32
EAN4049371000949
Construction32(2LI2Y0,14mm²)DYCY
Jacket Ø mm18,60
Number of Channels (audio)32
Weight per 1 m g478
Fire load per m kWh1,12
Width mm18,6
Height mm18,6
Article number100-0401
NameSC-Transfer AMCK
PropertiesPUR
PropertiesAnalog
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaInstallation
ApplicationMultipair
Colourblack
Colour detailedblack
Signal transmissionsymmetrical
Jacket materialPUR Master-Blend
Jacket material (audio)PUR, Master Blend
Number of Channels (audio)12
Number of Channels (audio)16
Number of Channels (audio)32
Number of Channels (audio)8
Number of Channels (audio)48
Inner conductor (audio)2
Inner conductor (audio) mm²0,14
Inner conductor Ø (audio) mm0,42
AWG (audio)26
ShieldingCopper spiral in pairs, overall shielding copper braiding,
Shielding factor %90
Copper strands (audio)18
Copper strand Ø (audio) mm0,10
Conductor insulation materialPE
Conductor insulation Ø mm0,85
UV-resistantyes
Style variantround
Packingbulk stock
Temperature min. °C-40
Temperature max. °C70
Capac. cond./cond. per 1 m (audio) pF85
Capacity wire/wire at 1 ft. (audio) pF25,908
Capac. cond./shield. per 1 m (audio) pF140
Capacity wire/electic screen at 1 ft. (audio) pF42,672
Impedance O75
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O138
Conductor resistance per 1000 ft. O42,0624
Shield. resistance per 1 km O125
Shield. resistance per 1000 ft. O38,1
BPVo-EuroclassFca
