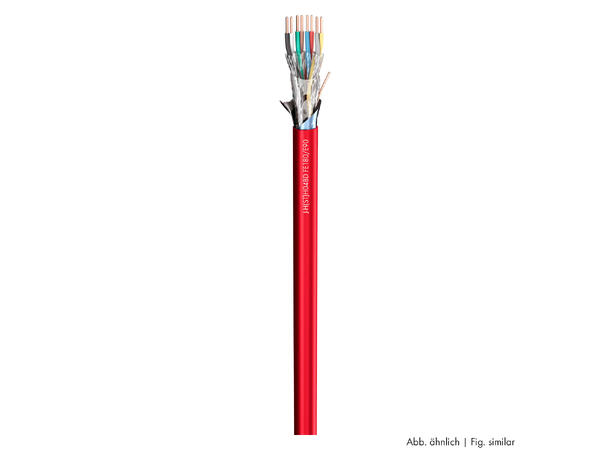

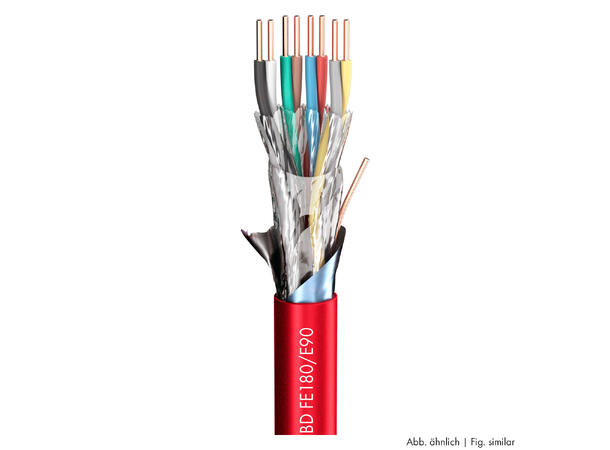

SOMMER Logicable S BD MODFS08 Multikabel

HM1 FRNC, rød | 2 x 0,50 mm², 8 par

Varenr: 141295

Alt. varenr: 100-1173-08

175,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Antall par

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Fire at will…

for our safety cable Logicable Safety BD with E30 – E90 functional preservation. This cable has become an installation standard in public buildings and industrial facilities to transmit audio, control and test signals. Due to the use of a special polymer it complies with the fire protection requirements according to DIN VDE 4102 part 12, E30 – E90 and FE180 (DIN VDE 0472, part 814). Please note that cables of this type are not suitable for mobile applications. Functional preservation depends on the installation technique.
Non-flammability in compliance with DIN VDE 0482 part 266-2, EN 50266-2 and IEC 60332-3. Freedom of halogens and gases (no corrosive gases) in compliance with DIN VDE 0482 parts 267-2 EN50267-2 and IEC 60754-2. Low smoke density in compliance with DIN VDE 0482 parts 268, EN 50268 and IEC 61034. Flame resistant in connection with water at 650 °C: 15 minutes (BS8367; W).

Not suitable for the use of power current and for underground installation.

Advantages:

Available in 2- to 12-wire version
Complies with the high fire protection requirements according to DIN VDE 4102 part 12, E30 – E90, and other relevant DIN standards.
Perfect protection against external electrical interferences and prevention of a flame transmission

Application:

Transmission of measuring, control and data signals in fire prone rooms.
Fixed installation in building technology

Specifications:

Article number	100-1173-08
Name	Logicable Safety BD MODFS08
EAN	4049371006613
Construction	JE-H(ST)H(8 x 2 x 0,8)Bd FE180/E90
Jacket Ø mm	17,90
Number of Channels (audio)	8
Inner conductor Ø (audio) mm	0,80
Weight per 1 m g	300
Fire load per m kWh	0,7
Width mm	18,9
Height mm	18,9
Loop resistance per km O	75
Loop resistance per 1000 ft. O	22,86
Article number	100-1173
Name	Logicable Safety BD
Properties	OFC oxygen free copper
Properties	FRNC flame retardant
Properties	Protection class E90
Properties	Halogen-free / LSZH
Properties	Protection class E30
Properties	Analog
Application area	ELA 100 V
Application area	Installation
Application	Fire alarm cable
Colour	red
Colour detailed	red
Signal transmission	symmetrical
Jacket material	HM1 FRNC
Jacket material (audio)	Flame retardant and halogen-free polymer HM1
Inner conductor (audio)	2
Inner conductor (audio) mm²	0,50
Inner conductor Ø (audio) mm	0,80
AWG (audio)	20
Shielding	AL / PT foil
Shielding factor %	100
Conductor insulation material	silicone E12
Style variant	round
Packing	bulk stock
Temperature min. °C	-20
Temperature max. °C	90
Width mm	7,9
Height mm	7,9
Capac. cond./cond. per 1 m (audio) pF	110
Capacity wire/wire at 1 ft. (audio) pF	33,528
Capac. cond./shield. per 1 m (audio) pF	250
Capacity wire/electic screen at 1 ft. (audio) pF	76,2
Impedance O	105
Insulation resist. per 1 km GO	500
Insulation resist. per 1000 feet GO	152,4
Insulation resist. per 1 km (audio) GO	500
Insulation resist. per 1000 feet (audio) GO	152,4
Loop resistance per km O	75
Loop resistance per 1000 ft. O	22,86
BPVo-Euroclass	Fca
