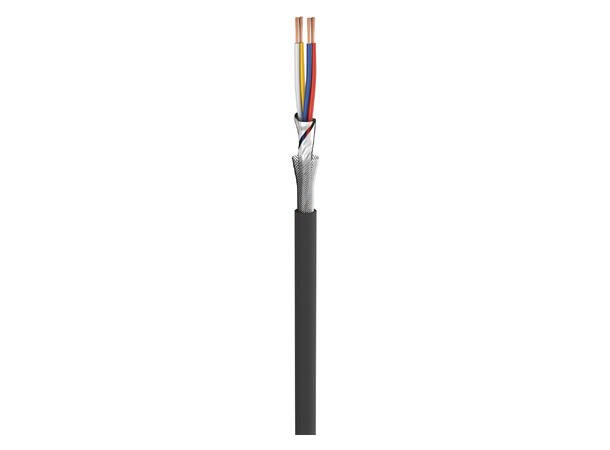

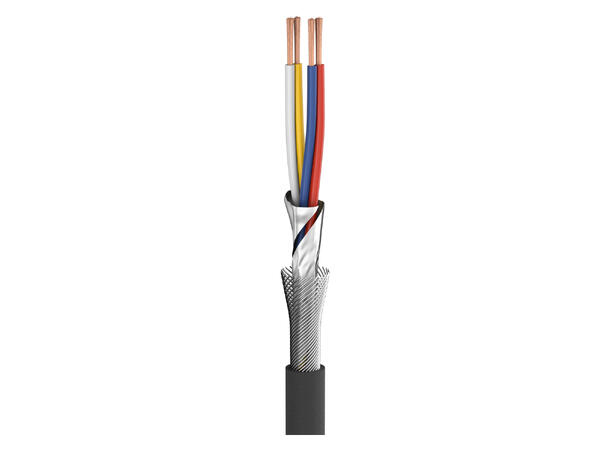

SOMMER Square 4-Core MKII Mikrofonkabel

4 x 0,20 mm², PVC, uten påskrift

Varenr: 141331

Alt. varenr: 200-0301NE

39,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Farge

Sort

Sort, uten påskrift

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

The sound director...

Advantages:

Extremely noise-free due to the crossover connection of the 4 single wires
Suitable as a phantom power supply and stereo cable due to its 2 extra conductors
Very good transmission safety and linear sound transmission
Extremely robust and good tensile strength due to the thick PVC jacket
100 % shielding owing to dense helical copper mesh screen plus additional
metallised fleece foil

Application:

Professional studio and microphone technology
Connection of effects and control units which require a return signal
Professional MIDI-technology, transfer cable
High-end connection of hifi components

Specifications:

Article number	200-0301NE
Name	SC-Square 4-Core MKII
EAN	4049371193368
Properties	OFC oxygen free copper
Properties	Analog
Application area	Installation
Application area	Mobile outdoor / indoor
Application area	Stage / live
Application	Microphone Cable
Colour	black
Colour detailed	without imprint
Signal transmission	symmetrical
Construction	(4LI2Y0,20mm²)(ST)DY
Jacket material	PVC
Jacket Ø mm	6,50
Number of Channels (audio)	1
Inner conductor (audio)	4
Inner conductor (audio) mm²	0,20
Inner conductor Ø (audio) mm	0,50
AWG (audio)	24
Shielding	Copper spiral shielding tin-plated + conductive fleece-foil
Shielding factor %	100
Copper strands (audio)	102
Copper strand Ø (audio) mm	0,05
Conductor insulation material	PE
Weight per 1 m g	53
UV-resistant	yes
Fire load per m kWh	0,22
Style variant	round
Packing	500 m spool
Packing	100 m spool
Temperature min. °C	-25
Temperature max. °C	70
Width mm	6,5
Height mm	6,5
Capac. cond./cond. per 1 m (audio) pF	65
Capacity wire/wire at 1 ft. (audio) pF	19,812
Capac. cond./shield. per 1 m (audio) pF	120
Capacity wire/electic screen at 1 ft. (audio) pF	36,576
Impedance O	95
Insulation resist. per 1 km GO	0,2
Insulation resist. per 1000 feet GO	0,061
Insulation resist. per 1 km (audio) GO	0,2
Insulation resist. per 1000 feet (audio) GO	0,061
Conductor resistance per 1 km O	98
Conductor resistance per 1000 ft. O	29,8704
Shield. resistance per 1 km O	20
Shield. resistance per 1000 ft. O	6,096
BPVo-Euroclass	Fca
