SOMMER Scuba 14 Mikrofonkabel 2 x 0,14 mm², PVC Ø 3,80 mm, grå SOMMER Scuba 14 Mikrofonkabel 2 x 0,14 mm², PVC Ø 3,80 mm, grå

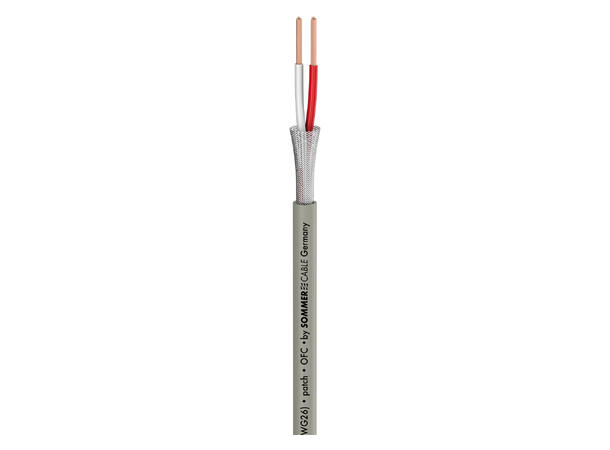

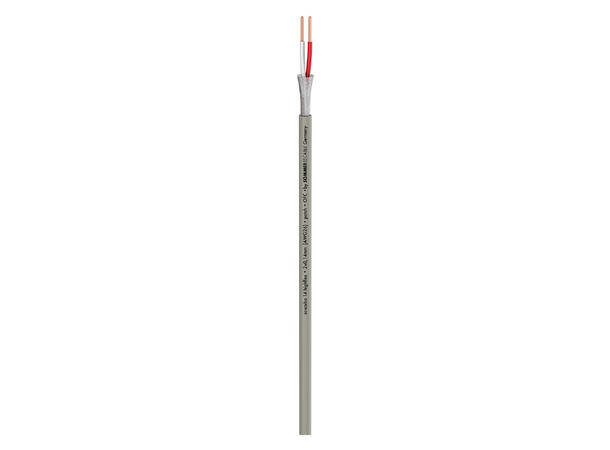

SOMMER Scuba 14 Mikrofonkabel

2 x 0,14 mm², PVC Ø 3,80 mm, grå

Varenr: 141335
Alt. varenr: 200-0316
19,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Rød
Rød
Grønn
Grønn
Grå
Grå
Gul
Gul

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Through thick and thin...

the new SC-Scuba 14 HIGHFLEX will be right by your side. It is very thin, space-saving, flexible and ideally suited for connectors with a small diameter, e.g. LEMO patchboards, mini jacks, RCA etc. (and thus perfect for patch cables) and rack cabling. Their diameter and wire construction has been designed according to common broadcasting standards and a dense copper mesh screen with90 % shielding coverage protects the cable from interference. For reasons of clarity we offer the SC-Scuba 14 HIGHFLEX in five different jacket colors.


Advantages:

  • Very thin, high tensile strength and flexibility
  • Available in five different colours
  • Good shielding due to the dense Cu mesh screen
  • Affordable price

Application:

  • Patch cabling (LEMO), gooseneck microphone cable
  • Home recording
  • Rack and console cabling


Specifications:

Article number200-0316
NameSC-Scuba 14
EAN4049371002035
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStudio / Broadcast
ApplicationPatch & Microphone Cable
Colourgrey
Colour detailedgrey
Signal transmissionsymmetrical
Construction(2LI2Y0,14mm²)CY
Jacket materialPVC
Jacket Ø mm3,80
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²0,14
Inner conductor Ø (audio) mm0,42
AWG (audio)26
ShieldingCopper braiding shield., tin-plated, with 0.10 mm indiv. strand
Shielding factor %90
Copper strands (audio)18
Copper strand Ø (audio) mm0,10
Conductor insulation materialPE
Conductor insulation Ø mm1,15
Weight per 1 m g25
Fire load per m kWh0,09
Style variantround
Packing100 m spool
Packing500 m spool
Temperature min. °C-25
Temperature max. °C70
Width mm3,8
Height mm3,8
Capac. cond./cond. per 1 m (audio) pF65
Capacity wire/wire at 1 ft. (audio) pF19,812
Capac. cond./shield. per 1 m (audio) pF130
Capacity wire/electic screen at 1 ft. (audio) pF39,624
Impedance O100
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O135
Conductor resistance per 1000 ft. O41,148
Shield. resistance per 1 km O30
Shield. resistance per 1000 ft. O9,144
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
