SOMMER Goblin Mikrofonkabel 2 x 0,14 mm², PVC, sort SOMMER Goblin Mikrofonkabel 2 x 0,14 mm², PVC, sort SOMMER Goblin Mikrofonkabel 2 x 0,14 mm², PVC, sort

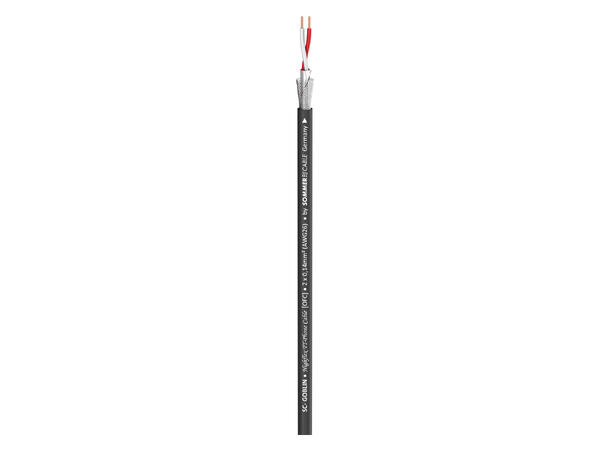

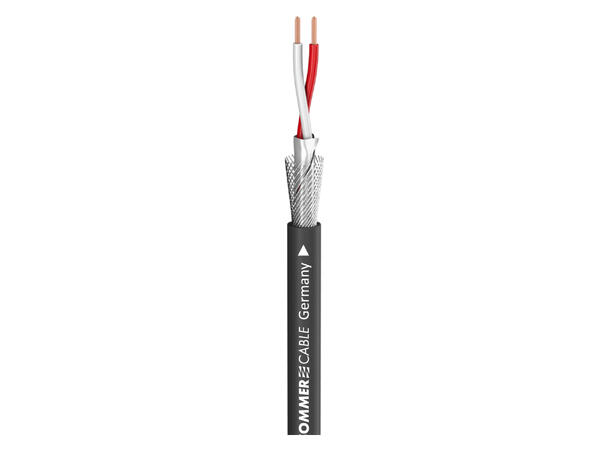

SOMMER Goblin Mikrofonkabel

2 x 0,14 mm², PVC, sort

Varenr: 141339
Alt. varenr: 200-0351
21,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Hvit
Hvit
Hvit, uten påskrift
Hvit, uten påskrift
Sort
Sort
Blå
Blå
Rød
Rød
Lys grå
Lys grå

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

No less, but lesser...

and easy to handle since it is available in four colors. Otherwise the technical and electrical construction is similar to the SC-SOURCE cable.
With its the small diameter it fits virtually all current TT-phone and B-gauge connectors and can also be used for Y-adapter cables. Due to its carefully designed shielding the cable offers the extra benefit of an amazing tread resistance and tensile strength. The white version is recommended for the unobtrusive installation in churches.


Advantages:

  • Ideal for patch cables owing to its small outside diameter of 4.6 mm
  • Very good tensile strength due to the dual shielding construction and special
    PVC jacket
  • Linear sound transmission due to the special-designed conductor pairs and the
    copper litz wire stranding
  • 100 % shielding due to a metallised fleece plus additional
    helical copper mesh screen

Application:

  • Professional studio patch connection
  • High-quality mini microphone cable
  • High-class phono and RCA connections
  • Long-distance MIDI cabling
  • Interior rack wiring and connection of audio components and effects devices


Specifications:

Article number200-0351
NameSC-Goblin
EAN4049371002059
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStudio / Broadcast
Application areaInstallation
ApplicationPatch & Microphone Cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical

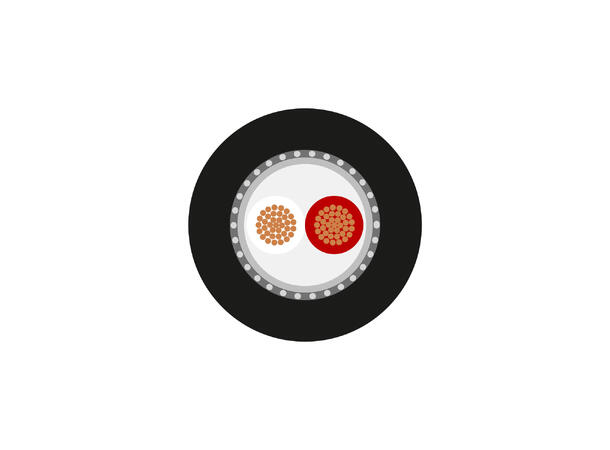

Construction(2LI2Y0,14mm²)(ST)DY
Jacket materialPVC
Jacket Ø mm4,60
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²0,14
Inner conductor Ø (audio) mm0,42
AWG (audio)26
ShieldingCopper spiral sleeve tin-plated + metalic fleece
Shielding factor %100
Copper strands (audio)18
Copper strand Ø (audio) mm0,10
Conductor insulation materialPE
Conductor insulation Ø mm1,05
Weight per 1 m g27
UV-resistantyes
Fire load per m kWh0,1
Style variantround
Packing100 m spool
Temperature min. °C-25
Temperature max. °C70
Width mm4,6
Height mm4,6
Capac. cond./cond. per 1 m (audio) pF65
Capacity wire/wire at 1 ft. (audio) pF19,812
Capac. cond./shield. per 1 m (audio) pF120
Capacity wire/electic screen at 1 ft. (audio) pF36,576
Insulation resist. per 1 km GO0,2
Insulation resist. per 1000 feet GO0,061
Insulation resist. per 1 km (audio) GO0,2
Insulation resist. per 1000 feet (audio) GO0,061
Conductor resistance per 1 km O140
Conductor resistance per 1000 ft. O42,672
Shield. resistance per 1 km O30
Shield. resistance per 1000 ft. O9,144
BPVo-EuroclassFca
