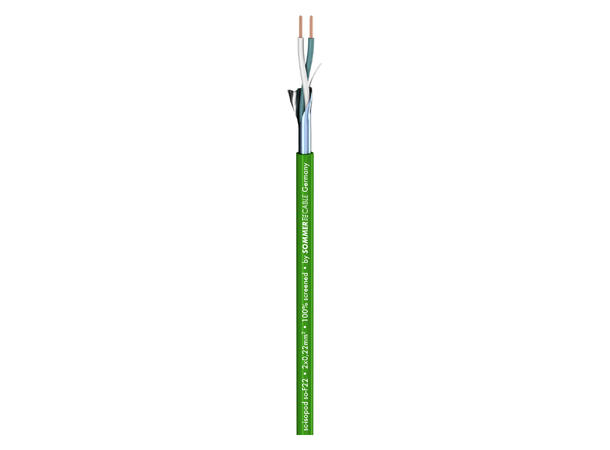

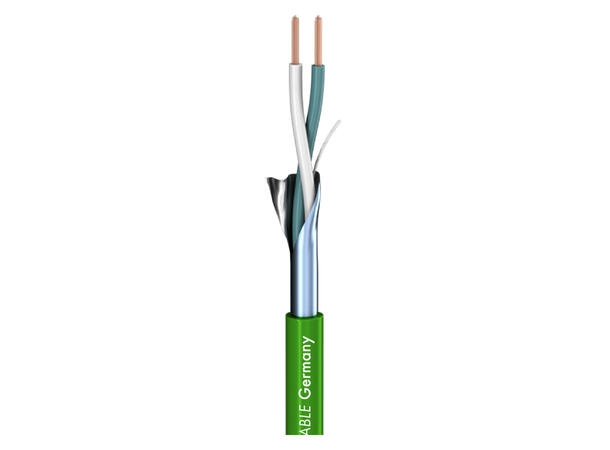

SOMMER Isopod SO-F22 Patchkabel

2 x 0,22 mm², PVC Ø 3,30 mm, grønn

Varenr: 141350

Alt. varenr: 200-0404

13,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Farge

Hvit

Sort

Blå

Rød

Grønn

Grå

Lilla

Oransje

Gul

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

200m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Article number	200-0404
Name	SC-Isopod SO-F22
EAN	4049371004527
Properties	Analog
Properties	OFC oxygen free copper
Application area	Installation
Application	Patch cable
Colour	green
Colour detailed	green
Signal transmission	symmetrical
Construction	(2LI2Y0,22mm²)(ST)Y
Jacket material	PVC
Jacket Ø mm	3,30
Number of Channels (audio)	1
Inner conductor (audio)	2
Inner conductor (audio) mm²	0,22
Inner conductor Ø (audio) mm	0,53
AWG (audio)	24
Shielding	AL / PT foil + AL / PT foil + filler strand, tin-plated
Shielding factor %	100
Copper strands (audio)	7
Copper strand Ø (audio) mm	0,20
Conductor insulation material	PE
Conductor insulation Ø mm	1,12
Weight per 1 m g	16
Fire load per m kWh	0,05
Style variant	round
Packing	200 m spool
Temperature min. °C	-25
Temperature max. °C	70
Width mm	3,3
Height mm	3,3
Capac. cond./cond. per 1 m (audio) pF	74
Capacity wire/wire at 1 ft. (audio) pF	22,5552
Capac. cond./shield. per 1 m (audio) pF	143
Capacity wire/electic screen at 1 ft. (audio) pF	43,5864
Insulation resist. per 1 km GO	0,2
Insulation resist. per 1000 feet GO	0,061
Insulation resist. per 1 km (audio) GO	0,2
Insulation resist. per 1000 feet (audio) GO	0,061
Conductor resistance per 1 km O	88
Conductor resistance per 1000 ft. O	26,8224
Shield. resistance per 1 km O	75
Shield. resistance per 1000 ft. O	22,86
BPVo-Euroclass	Fca
