SOMMER Monocat Power 414 Hybridkabel pwr: 3x2,50mm², 4x CAT.7, DMX: 2x0,25mm² SOMMER Monocat Power 414 Hybridkabel pwr: 3x2,50mm², 4x CAT.7, DMX: 2x0,25mm² SOMMER Monocat Power 414 Hybridkabel pwr: 3x2,50mm², 4x CAT.7, DMX: 2x0,25mm²

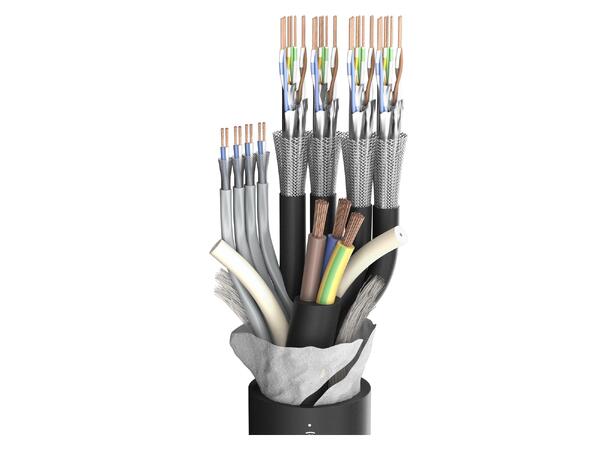

SOMMER Monocat Power 414 Hybridkabel

pwr: 3x2,50mm², 4x CAT.7, DMX: 2x0,25mm²

Varenr: 141376
Alt. varenr: 500-0191-4
604,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ikke på lager i Oslo. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Thicker and bigger …

Apart from the combi lines 110C (CAT+Power), 111C (CAT+Power+DMX), 202 (2xCAT+2xDMX) and 212 (2xCAT+2xDMX+Power) we also offer the extended variants SC-MONOCAT POWER 414 and 810. In addition to the power line, the SC-MONOCAT POWER 414 has four CAT and four DMX lines each, the SC-MONOCAT POWER 810 with its super robust, notch and cold resistant PUR jacket has eight CAT lines.


Advantages:

  • LAN signal transmission incl. mains supply in one cable
  • LAN cable also usable as an additional control line
  • LAN line suitable for audio transmission

Application:

  • Mobile applications
  • Control of DMX lighting consoles
  • Analogue + digital audio multipair with LAN and power supply
  • Permanent Installation


Specifications:

Article number500-0191-4
NameSC-Monocat Power 414
EAN4049371166379
PropertiesOFC oxygen free copper
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaInstallation
Application areaStudio / Broadcast
Applicationhybrid cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical

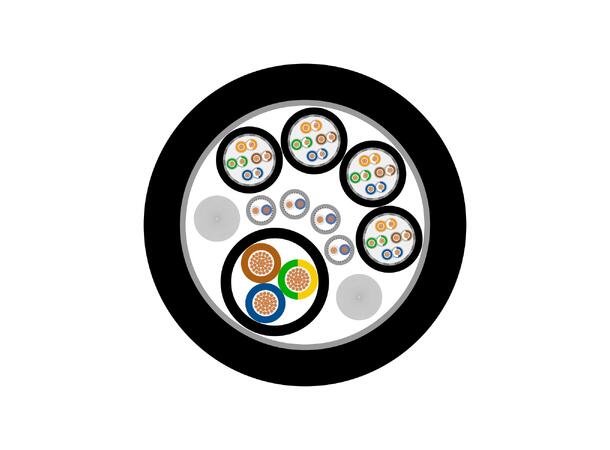

Construction(3LIY3x2,5mm²)Y+4x(4x(2x0,51mm))(ST)CY+4x(2x(2LI2YS0,25mm²)ST))CYY
Construction (power)(3LIY3x2,5mm²)Y
Construction (AES/EBU, DMX)4x(2x(2LI2YS0,25mm²)ST))
Construction (network)4x(4x(2x0,51mm))(ST)CY
Jacket materialPVC
Jacket Ø mm27,00
Number of Channels (power)1
Number of Channels (AES/EBU, DMX)4
Number of Channels (network)4
Inner conductor (power)3
Inner conductor (AES/EBU, DMX)2
Inner conductor (network)8
Inner conductor (power) mm²2,50
Inner conductor (AES/EBU, DMX) mm²0,25
Inner conductor Ø (network) mm0,51
AWG (AES/EBU, DMX)23
Shielding (AES/EBU, DMX)Copper braiding tin-plated
Shielding (network)AL / PT-foil + Copper braiding tin-plated
Shielding factor %100
Conductor insulation materialFoam / Skin-PE
Weight per 1 m g850
UV-resistantyes
Fire load per m kWh3,25
Style variantround
Packingbulk stock
CAT-TypeCAT.7
Max. section length m110
Temperature min. °C-20
Temperature max. °C75
Width mm27
Height mm27
Capacity wire/wire at 1m (network) pF44
Capacity wire/wire at 1 ft. (network) pF13,4112
Impedance (network) O100
Insulation resist. per 1km (power) GO5
Insulation resist. per 1000 feet (power) GO1,524
Test voltage V2000
Nominal voltage (power) V500
Operating voltage (power) V300
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
