SOMMER Binary 434 DMX512 DMX-kabel 4 x 0,34 mm², PVC Ø 7,00 mm, grå SOMMER Binary 434 DMX512 DMX-kabel 4 x 0,34 mm², PVC Ø 7,00 mm, grå SOMMER Binary 434 DMX512 DMX-kabel 4 x 0,34 mm², PVC Ø 7,00 mm, grå

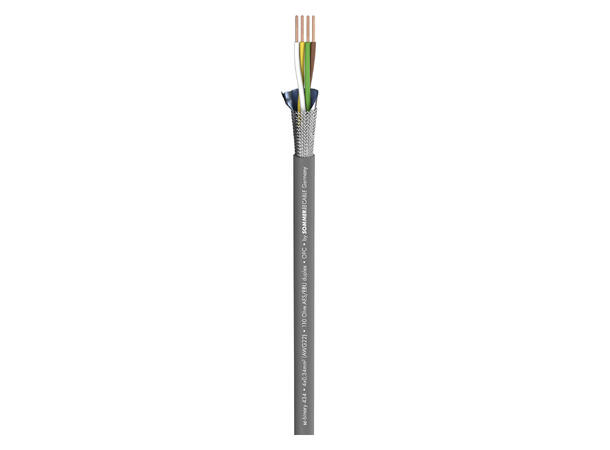

SOMMER Binary 434 DMX512 DMX-kabel

4 x 0,34 mm², PVC Ø 7,00 mm, grå

Varenr: 141398
Alt. varenr: 540-0056
47,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Grå
Grå

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

One step forward, one step back...

round and round, don’t break your neck! When data need to be passed back and forth, a digital cable with a check-back channel should be used. The wave impedance of this cable is also specified at 110 O. Two of the 4 wires are responsible for the check-back function. The sturdy jacket is suitable both for outdoor and permanent installation.

Colour coding according to DIN 47100.

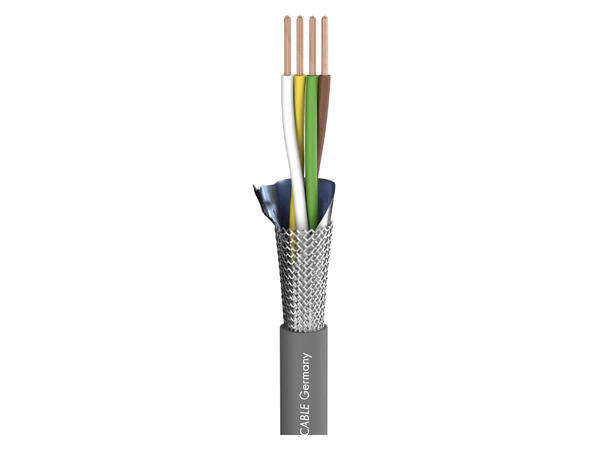

Due to the dual shielding (AL/PT foil + copper braiding) and wire coding it conforms with the generally applicable guidelines (VDE 0812/VDE 0207). Transmission rate 256 Kbs according to EIA 485 standard.


Advantages:

  • Digital transmission over long distances due to the DMX and AES/EBU standards
  • Excellent protection against electric interference (Cu mesh screen + AL/PT foil)
  • Extremely robust due to the special tough jacket

Application:

  • Networking of scanners and lighting systems with check-back function
  • Connection of digital control units and devices of all kinds


Specifications:

Article number540-0056
NameBinary 434 DMX512
EAN4049371002394
PropertiesOFC oxygen free copper
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
Application areaStage / live
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaELA 100 V
ApplicationDMX
Colourgrey
Colour detailedgrey
Signal transmissionsymmetrical

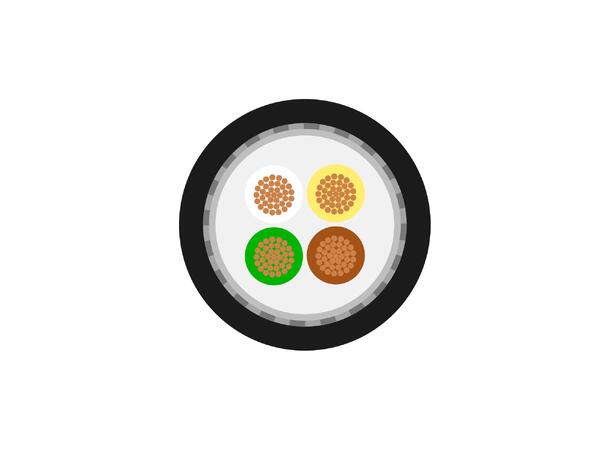

Construction2(2LI2YS0,34mm²)(ST)CY
Jacket materialPVC
Jacket Ø mm7,00
Number of Channels (AES/EBU, DMX)1
Inner conductor (AES/EBU, DMX)4
Inner conductor (AES/EBU, DMX) mm²0,34
Inner conductor Ø (AES/EBU, DMX) mm0,66
AWG (AES/EBU, DMX)22
ShieldingCopper-cross mesh, tined + AL / PT foil
Shielding factor %100
Copper strands (AES/EBU, DMX)7
Copper strand Ø (AES/EBU, DMX) mm0,25
Conductor insulation materialPE
Conductor insulation Ø mm1,70
Weight per 1 m g65
Fire load per m kWh0,22
Style variantround
Packing100 m spool
Temperature min. °C-25
Temperature max. °C70
Width mm7
Height mm7
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF58
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF17,6784
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF100
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF30,48
Impedance O110
Insulation resist. per 1 km GO5
Insulation resist. per 1000 feet GO1,524
Insulation resist. per 1 km (AES/EBU, DMX) GO5
Insulation resist. per 1000 feet (AES/EBU, DMX) GO1,524
Conductor resistance per 1 km O53
Conductor resistance per 1000 ft. O16,1544
Shield. resistance per 1 km O15
Shield. resistance per 1000 ft. O4,572
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
