It‘s better to be on the safe side...
Advantages:
- Short twist pitch and high-quality insulation
- Great durability due to special jacket compound
- Length overprint on cable
Application:
- Connection of computers and media technical equipment
Specifications:
| Article number | 580-0056 |
|---|
| Name | SC-Mercator CAT.5e |
|---|
| EAN | 4049371002462 |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Halogen-free / LSZH |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Installation |
|---|
| Application | Cat.5e |
|---|
| Colour | grey |
|---|
| Colour detailed | grey |
|---|

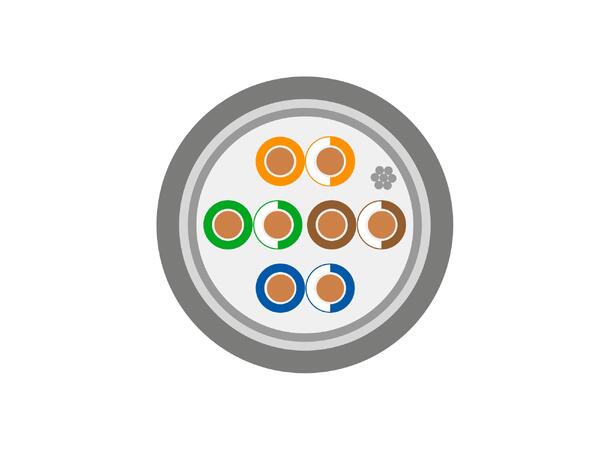

| Construction | J02Y(ST)CY 4x2x0,51mm/300MHz |
|---|
| Construction (network) | J02Y(ST)CY 4x2x0,51mm/300MHz |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 6,10 |
|---|
| Number of Channels (network) | 1 |
|---|
| Inner conductor (network) | 8 |
|---|
| Inner conductor Ø (network) mm | 0,51 |
|---|
| AWG (network) | 24 |
|---|
| Shielding | AL / PT foil + filler strand |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (network) | 1 |
|---|
| Copper strand Ø (network) mm | 0,51 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Conductor insulation Ø mm | 1,02 |
|---|
| Weight per 1 m g | 40 |
|---|
| Fire load per m kWh | 0,19 |
|---|
| Style variant | round |
|---|
| Packing | 100 m spool |
|---|
| Packing | 500 m spool |
|---|
| CAT-Type | CAT.5e |
|---|
| Max. section length m | 100 |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 75 |
|---|
| Width mm | 6,1 |
|---|
| Height mm | 6,1 |
|---|
| Capacity wire/wire at 1m (network) pF | 49 |
|---|
| Capacity wire/wire at 1 ft. (network) pF | 14,9352 |
|---|
| Impedance O | 100 |
|---|
| Insulation resist. per 1 km GO | 5 |
|---|
| Insulation resist. per 1000 feet GO | 1,524 |
|---|
| Insulation resist. per 1 km (network) GO | 5 |
|---|
| Insulation resist. per 1000 feet (network) GO | 1,524 |
|---|
| Loop resistance per km O | 260 |
|---|
| Loop resistance per 1000 ft. O | 79,248 |
|---|
| Max. delay (skew) | 20 ns @ 100 MHz |
|---|
| BPVo-Euroclass | Fca |
|---|
