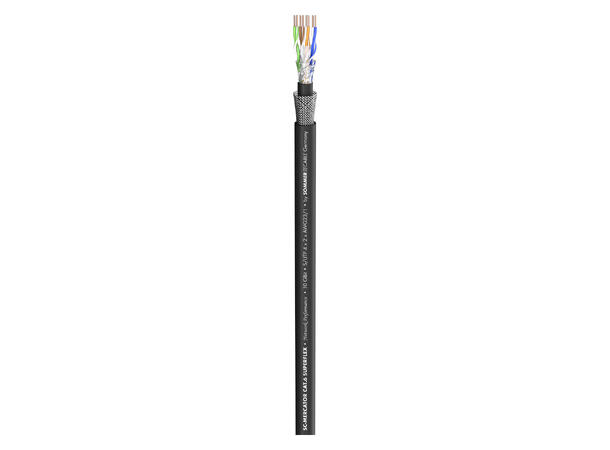

SOMMER Mercator CAT.6 PUR Superflex PUR, sort, Ø 8,00 mm

SOMMER Mercator CAT.6 PUR Superflex

PUR, sort, Ø 8,00 mm

Varenr: 141409

Alt. varenr: 580-0201

68,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m

500 på lager i Oslo

Beskrivelse

CATlike agility and mobility...

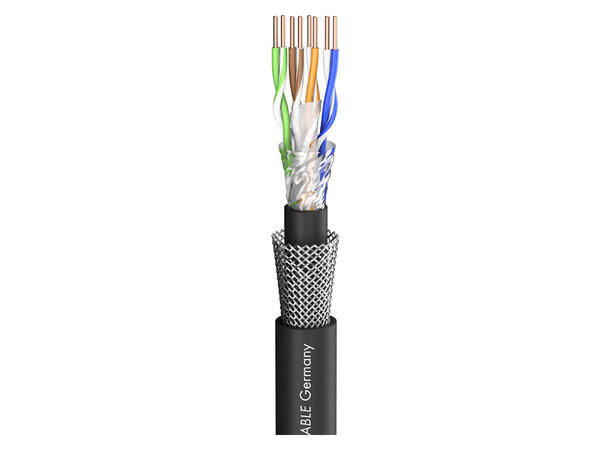

The SC-Mercator CAT.6 SUPERFLEX is the ideal cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in the OB van. Due to its large AWG23/1 cross-section, network signals can also be transmitted easily over distances > 100 m (328 ft.). The double-jacket design results in an unprecedented flexibility. The outer jacket is made of an extremely notch and tread resistant and also cold flexible PUR compound, whereas the inner jacket consists of a highly flexible S-PVC. Between the two jackets is a braided shield of tin-plated copper. This construction makes the cable extremely flexible and very easy to reel.

Advantages:

Safe data transfer due to high-quality insulation and shielding
Great durability due to a special, extremely robust jacket compound
Resistant to outdoor temperatures
easy to wind

Miscellaneous:

Ultra flexible and easy-to-reel network cable with a large wire cross-section for outdoor applications.
Outstanding network performance also for cable lengths >100 m (328 ft.).
Double-jacket construction: The outer jacket is made of an extremely notch and tread resistant and also cold flexible PUR compound, whereas the inner jacket consists of a highly flexible S-PVC. Between the two jackets is a braided shield of tin-plated copper with >80 % coverage.
Great durability due to a special, extremely robust jacket compound

Application:

For mobile OB van use and outdoor applications
For mobile sound, light or video transmissions
For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions

Specifications:

Article number	580-0201
Name	SC-MERCATOR CAT.6 PUR SUPERFLEX
EAN	4049371264198
Properties	FRNC flame retardant
Properties	Digital 110 O AES / EBU
Properties	Halogen-free / LSZH
Properties	OFC oxygen free copper
Properties	PUR
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application area	Installation
Application	Cat.6
Colour	black
Colour detailed	black

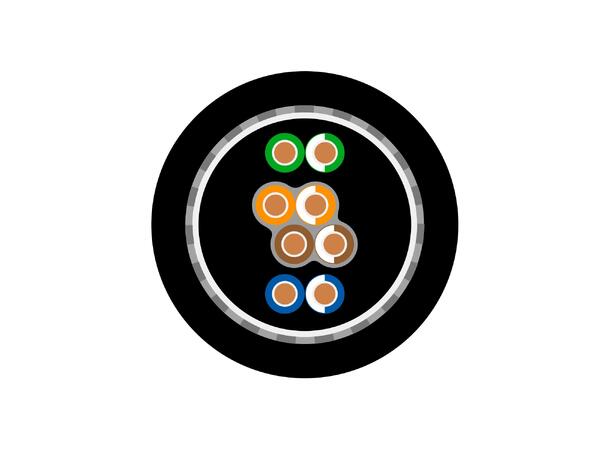

Construction	S/UTP 4x2x0.57 mm
Construction (network)	S/UTP 4x2x0.57 mm
Jacket material	PUR
Jacket material (network)	PVC
Jacket Ø mm	8,00
Jacket Ø (network) mm	6,20
Number of Channels (network)	1
Inner conductor (network)	8
Inner conductor (network) mm²	0,26
AWG (network)	23
Shielding	Copper braiding tin-plated (total)
Shielding factor %	80
Copper strands (network)	1
Copper strand Ø (network) mm	0,57
Conductor insulation material	Foam / Skin-PE
Weight per 1 m g	78
UV-resistant	yes
Fire load per m kWh	0,24
Style variant	round
Packing	100 m spool
Packing	500 m spool
CAT-Type	CAT.6
Velocity factor	0,75
Temperature min. °C	-40
Temperature max. °C	80
Width mm	8
Height mm	8
Capacity wire/wire at 1m (network) pF	76
Capacity wire/wire at 1 ft. (network) pF	23,1648
Impedance O	100
Insulation resist. per 1 km GO	2
Insulation resist. per 1000 feet GO	0,6096
Insulation resist. per 1 km (network) GO	2
Insulation resist. per 1000 feet (network) GO	0,6096
Max. delay (skew)	14 ns @100 MHz/100 m
Old article number	580-0251
BPVo-Euroclass	Fca
