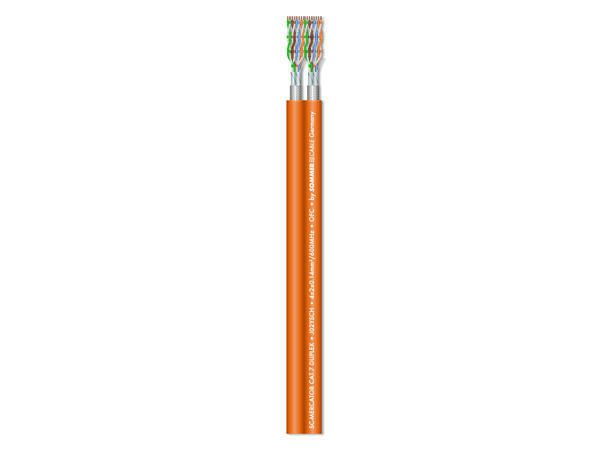

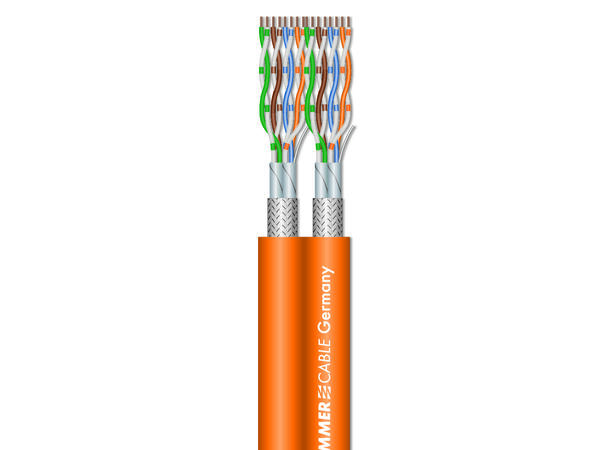

SOMMER Mercator CAT.7 DUPLEX

2 x CAT.7, FRNC, 17 x 8,5 mm, oransje

Varenr: 141417
Alt. varenr: 580-0255F
83,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

It‘s better to be on the safe side...

for computer cables are produced in such great quantities that due to the tremendous pricing pressure, the quality often falls by the wayside. This results in a poor transmission and an expensive, time-robbing fault tracing. We deliver a high-quality version with a short twist pitch and a durable FRNC jacket. The perfect installation line for the transmission of high Class F bitrates in compliance with the
approbation (FAST ETHERNET, ATM155 Protocols, EN 50173 2ed, EN 50288-1, EN 50288-5-1, IEC 61156-5, ISO/IEC 11801 2ed). It is downward compatible with all existing network protocols CAT.5, CAT.6 und CAT.6a.


Advantages:

  • Short twist pitch and high-quality insulation
  • Great durability due to special jacket compound
  • Length overprint on cable

Application:

  • Connection of computers and media technical equipment


Specifications:

Article number580-0295F
NameSC-Mercator CAT.7 DUPLEX
EAN4049371002479
PropertiesOFC oxygen free copper
PropertiesFRNC flame retardant
PropertiesHalogen-free / LSZH
PropertiesDigital 110 O AES / EBU
Application areaInstallation
Application areaStudio / Broadcast
ApplicationDMX & Power
Colourorange
Colour detailedorange

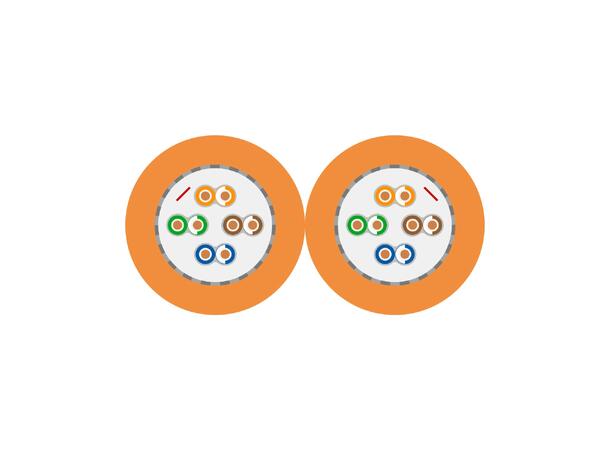

ConstructionJ02YSCH 4x2x0,57mm
Construction (network)J02YSCH 4x2x0,57mm
Jacket materialFRNC
Jacket Ø mm7,60
Number of Channels (network)2
Inner conductor (network)8
Inner conductor Ø (network) mm0,57
AWG (network)23
ShieldingAL / PT-foil +Copper braiding
Shielding (network)Copper braiding + AL / PT foil
Shielding factor %100
Copper strands (network)1
Copper strand Ø (network) mm0,57
Conductor insulation materialSkin / Foam / Skin-PE
Weight per 1 m g140
Fire load per m kWh0,21
Style variantround
Packing100 m spool
Packing500 m spool
CAT-TypeCAT.7
Max. section length m150
Temperature min. °C-20
Temperature max. °C70
Width mm17
Height mm8,5
Capacity wire/wire at 1m (network) pF43
Capacity wire/wire at 1 ft. (network) pF13,1064
Impedance O100
Loop resistance per km O145
Loop resistance per 1000 ft. O44,196
Max. delay (skew)15 ns @ 100 MHz
BPVo-EuroclassFca
