SOMMER Mercator Multipair CAT.7 4 x CAT.7, PVC Ø 22,50 mm, sort SOMMER Mercator Multipair CAT.7 4 x CAT.7, PVC Ø 22,50 mm, sort SOMMER Mercator Multipair CAT.7 4 x CAT.7, PVC Ø 22,50 mm, sort

SOMMER Mercator Multipair CAT.7

4 x CAT.7, PVC Ø 22,50 mm, sort

Varenr: 141418
Alt. varenr: 580-0311-04
335,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Cable mono culture...

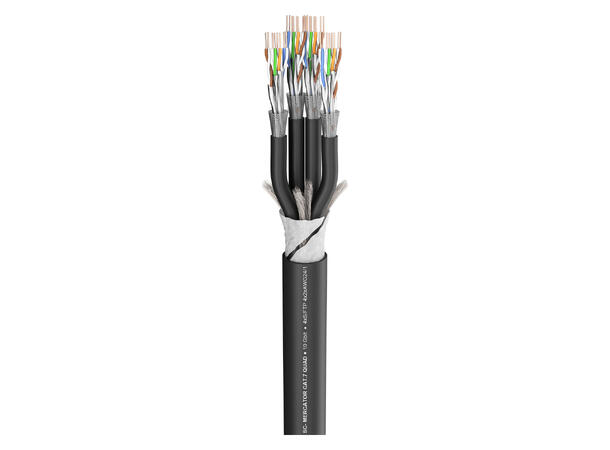

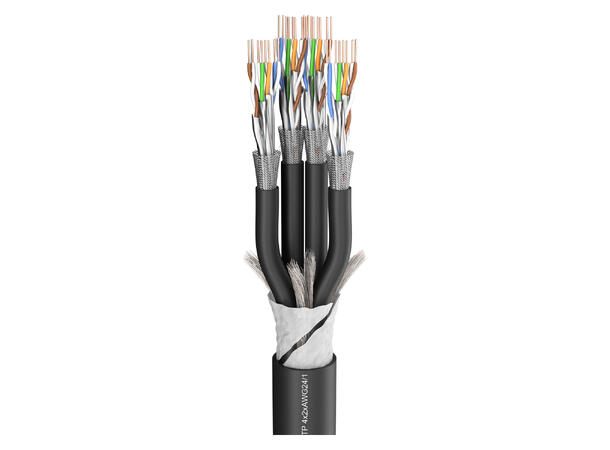

is what we did with the SC-Mercator 4 x CAT.7. Here we have packed no less than four CAT.7 lines in a highly flexible and robust Strong PVC jacket. Due to the fine litz construction of the single wires the overall construction achieves a good flexibility. Each of the network lines is shielded against external interferences by an overall screen made of a braided copper mesh plus a foil screen per wire pair (PimF).
With the 10 Gbit-capable SC-Mercator 4 x CAT.7 up to 4 high-speed ethernet or compatible signals can be transmitted simultaneously.


Advantages:

  • Four high-speed lines in one robust jacket
  • Full CAT.6a functionality / 10 GBit
  • Redundant transmission capability
  • Highly flexible due to fine litz construction

Application:

  • Linking of sound and light direction via separate networks
  • For quick and efficient cabling, e.g. of LED video wall systems
  • For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions


Specifications:

Article number580-0311-04
NameSC-Mercator
EAN4049371081498
PropertiesDigital 110 O AES / EBU
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaStage / live
Application areaInstallation
ApplicationMultipair Cat.7
Colourblack
Colour detailedblack

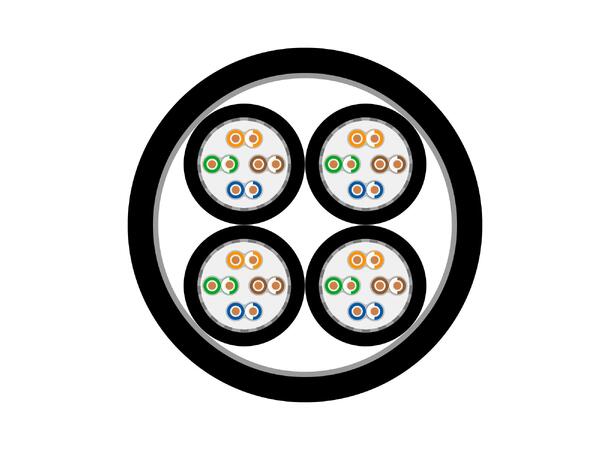

Construction4 x S/FTP 4x2x0,51mm
Construction (network)SFTP 4x2x0,51mm
Jacket materialPVC
Jacket Ø mm22,50
Number of Channels (network)4
Inner conductor (network)8
Inner conductor Ø (network) mm0,53
AWG (network)24
ShieldingPimF, Copper braiding tin-plated
Shielding factor %100
Copper strands (network)1
Copper strand Ø (network) mm0,20
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,38
Weight per 1 m g380
UV-resistantyes
Fire load per m kWh0,15
Style variantround
Packing100 m spool
Packing500 m spool
CAT-TypeCAT.7
Max. section length m140
Velocity factor0,77
Temperature min. °C-20
Temperature max. °C60
Width mm22,5
Height mm22,5
Capacity wire/wire at 1m (network) pF45
Capacity wire/wire at 1 ft. (network) pF13,716
Impedance O100
Insulation resist. per 1 km GO5
Insulation resist. per 1000 feet GO1,524
Insulation resist. per 1 km (network) GO5
Insulation resist. per 1000 feet (network) GO1,524
Loop resistance per km O190
Loop resistance per 1000 ft. O57,912
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
