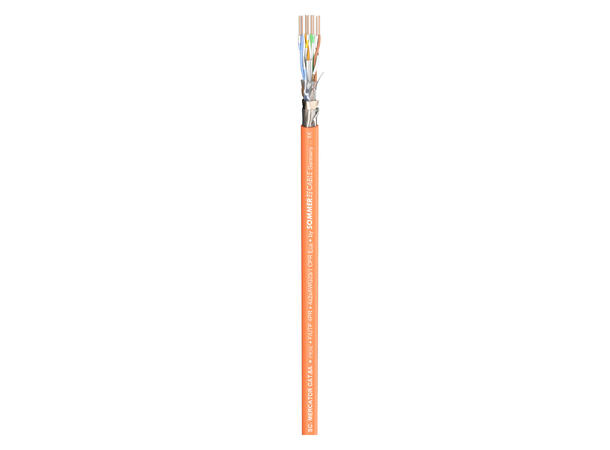

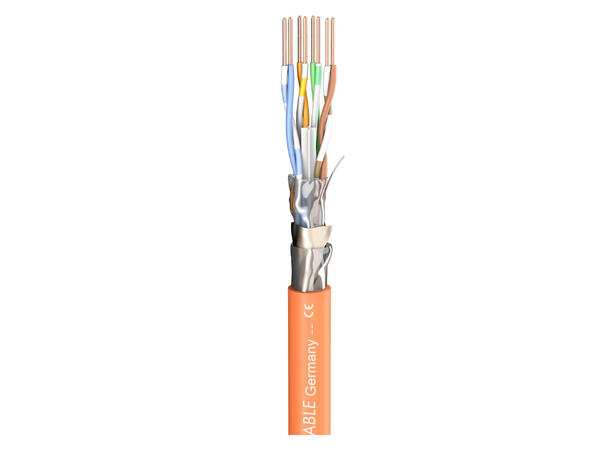

SOMMER Mercator CAT.6a CPR-Version FRNC, oransje, Ø 7,10 mm, Eca SOMMER Mercator CAT.6a CPR-Version FRNC, oransje, Ø 7,10 mm, Eca SOMMER Mercator CAT.6a CPR-Version FRNC, oransje, Ø 7,10 mm, Eca

SOMMER Mercator CAT.6a CPR-Version

FRNC, oransje, Ø 7,10 mm, Eca

Varenr: 141420
Alt. varenr: 580-0465FC
35,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseTilbehørLenker & dokumenter
Beskrivelse

It‘s better to be on the safe side...

We deliver a high-quality 4-twisted pair CAT version with a short twist pitch and a durable FRNC jacket. The CAT.6a distinguishes itself from the CAT.5e cable by a higher transmission frequency of 500 MHz (EN 50173-1, EN 50288-5-1, IEC 61156-5, ISO/IEC 11801-2ed, TIA/EIA 568-B.2-10 Draft 5.0) which is achieved by a special insulation of the opposite wire pairs.
The SC-Mercator CAT.6a CPR-Version has been designed for 10 Gbit (10GBASE-T) and is downward compatible with all existing network protocols (10/100/1000 Mbit). Thus the SC-Mercator CAT.6a CPR-Version can also be used for CAT.5 (100 MHz), CAT.5e (250 MHz) and CAT.6 (350 MHz) transmissions.
For mobile CAT.6 and CAT.6a applications we recommend our SC-MERCATOR CAT.7 PUR, see the following pages.


Advantages:

  • Short twist pitch and high-quality insulation
  • Great durability due to special LSZH jacket

Application:

  • Connection of computers and media technical equipment in the 10/100/1000 Mbit and 10 Gbit network standard


Specifications:

Article number580-0465FC
NameSC-Mercator CAT.6a CPR-Version
EAN4049371378321
PropertiesFRNC flame retardant
PropertiesOFC oxygen free copper
PropertiesDigital 110 O AES / EBU
PropertiesHalogen-free / LSZH
Application areaStudio / Broadcast
Application areaInstallation
ApplicationCat.6a
Colourorange
Colour detailedorange

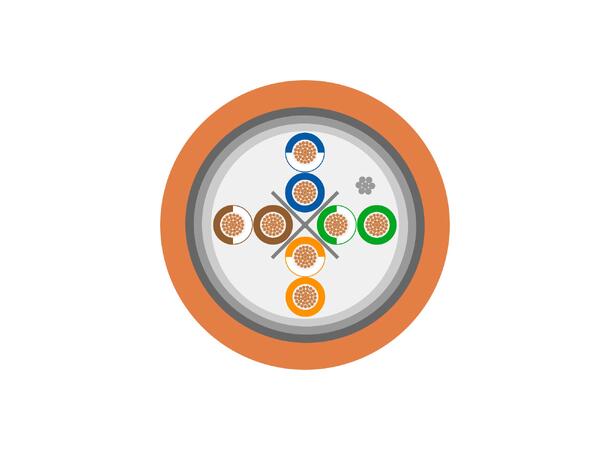

ConstructionFTP LSZH 4x2x0,57mm
Construction (network)FTP LSZH 4x2x0,57mm
Jacket materialFRNC
Jacket Ø mm7,10
Number of Channels (network)1
Inner conductor (network)1
Inner conductor Ø (network) mm0,57
AWG (network)23
ShieldingAL / PT foil + filler strand
Shielding factor %100
Copper strands (network)1
Copper strand Ø (network) mm0,57
Conductor insulation materialFoam / Skin-PE
Weight per 1 m g59
Fire load per m kWh0,15
Style variantround
Packing100 m spool
Packing500 m spool
CAT-TypeCAT.6a
Max. section length m100
Velocity factor0,75
Temperature min. °C-20
Temperature max. °C75
Width mm7,1
Height mm7,1
Capacity wire/wire at 1m (network) pF47
Capacity wire/wire at 1 ft. (network) pF14,3256
Impedance O100
Loop resistance per km O150
Loop resistance per 1000 ft. O45,72
Max. delay (skew)25 ns @ 100 MHz/100 m
BPVo-EuroclassEca
