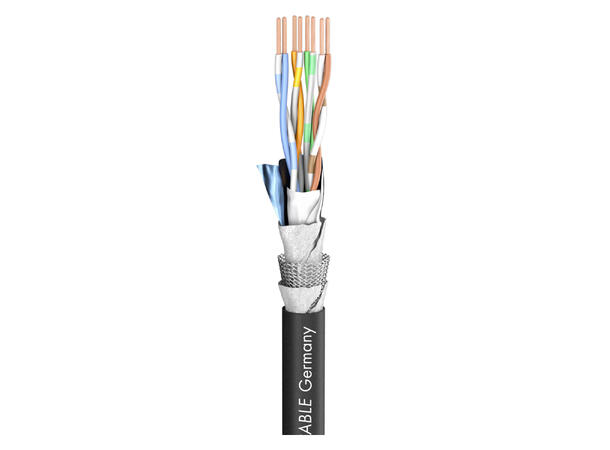

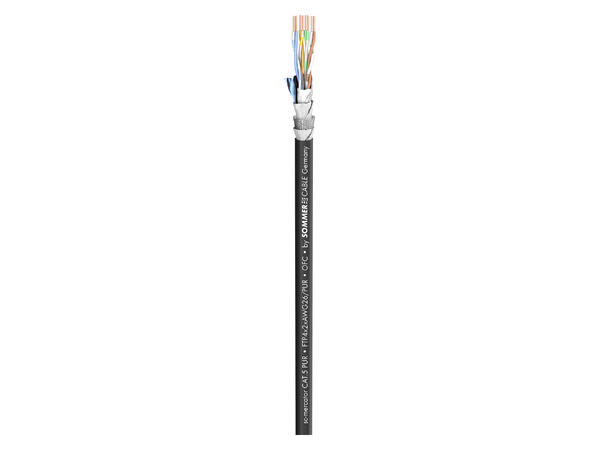

SOMMER Mercator CAT.5 PUR PUR-FRNC, sort, Ø 6,20 mm

SOMMER Mercator CAT.5 PUR

PUR-FRNC, sort, Ø 6,20 mm

Varenr: 141421

Alt. varenr: 581-0051

86,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Cat-Mobile is not a roaming cat...

but a CAT.5 PUR Twisted Pair for mobile and movable applications! The SC-Mercator CAT.5 PUR is the perfect cable for mobile and movable outdoor applications. On the cable reel, in the OB van, on cable slides and even in cable carriers it will stand out with its high bending cycles and great durability. The halogen-free and flame-retardant PUR jacket (according to IEC60332.1) makes it extremely notch- and cold-resistant. A silicone-like hose on the stranded wire pairs guarantees lasting transmission quality and optimal tread resistance. Of course, the cable is RJ45-compatible. Its smallest bending radius is 40 mm and according to the editorial staff at “Ethersound“, the maximum transmission length is 67 m.

Advantages:

Safe data transfer due to short twist pitch and high-quality insulation
Great durability due to a special, extremely robust jacket compound
Resistant to outdoor temperatures
Easy to reel

Application:

Connection of computers and media technical equipment
For mobile OB van use and outdoor applications

Specifications:

Article number	581-0051
Name	SC-Mercator CAT.5 PUR
EAN	4049371003513
Properties	PUR
Properties	FRNC flame retardant
Properties	Digital 110 O AES / EBU
Properties	Halogen-free / LSZH
Properties	OFC oxygen free copper
Application area	Installation
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application	Cat.5
Colour	black
Colour detailed	black

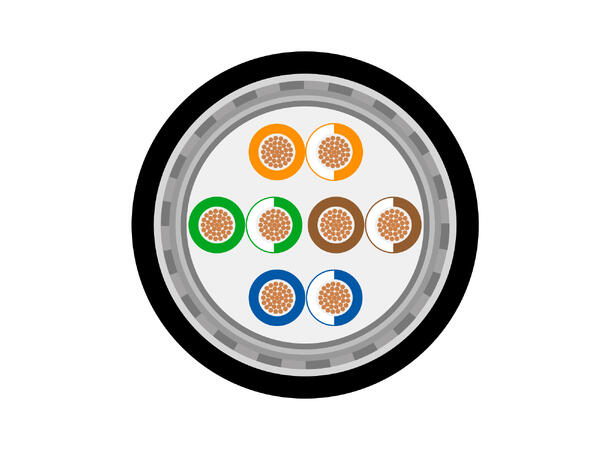

Construction	SFTP4x2x0,15mm²
Construction (network)	SFTP 4x2x0,15mm²
Jacket material	PUR-FRNC
Jacket Ø mm	6,20
Number of Channels (network)	1
Inner conductor (network)	8
Inner conductor (network) mm²	0,15
AWG (network)	26
Shielding	AL / PT-foil + copper braiding 90 % tin-plated
Shielding factor %	100
Copper strands (network)	19
Copper strand Ø (network) mm	0,10
Conductor insulation material	Foam / Skin-PE
Weight per 1 m g	50
UV-resistant	yes
Fire load per m kWh	0,11
Style variant	round
Packing	100 m spool
Packing	500 m spool
CAT-Type	CAT.5
Max. section length m	65
Velocity factor	0,73
Temperature min. °C	-15
Temperature max. °C	70
Width mm	6,2
Height mm	6,2
Capacity wire/wire at 1m (network) pF	48
Capacity wire/wire at 1 ft. (network) pF	14,6304
Impedance O	100
Insulation resist. per 1 km GO	5
Insulation resist. per 1000 feet GO	1,524
Insulation resist. per 1 km (network) GO	5
Insulation resist. per 1000 feet (network) GO	1,524
Loop resistance per km O	142
Loop resistance per 1000 ft. O	43,2816
BPVo-Euroclass	Fca
