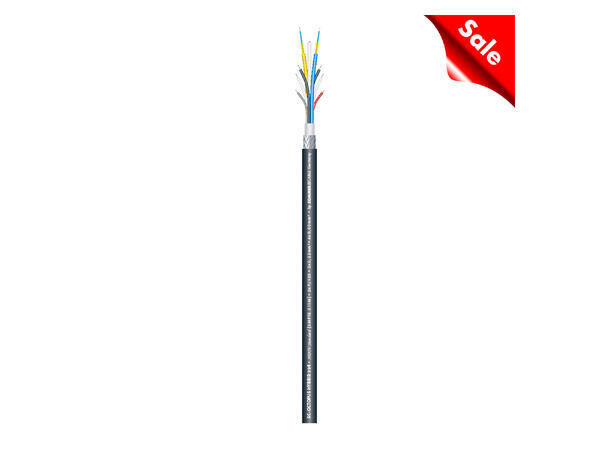

SOMMER Octopus Hybrid224 TPU Hybridkabel power/fiber/control, TPU Ø 9,20 mm, sort SOMMER Octopus Hybrid224 TPU Hybridkabel power/fiber/control, TPU Ø 9,20 mm, sort

SOMMER Octopus Hybrid224 TPU Hybridkabel

power/fiber/control, TPU Ø 9,20 mm, sort

Varenr: 141476
Alt. varenr: 591-2241TPU
152,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ytterkappe, materiale
PUR
PUR
TPU
TPU
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Fiber goes Hollywood...

and thus paves the way for vast transmission lengths in digital broadcasting & studio camera technology.
In addition to the two singlemode 9/125 µm fibers for image and sound, 2 control and 4 power wires are provided for camera control and power. A stainless steel rope has been integrated as strain relief. The TPU cable is particularly suitable for fixed installation. Alternatively, a PUR version (591-2241) is available for mobile applications such as for use in OB vans. The bandwidth at 1km is 600 MHz at 1300 nm.


Advantages:

  • Picture, sound, power and control transmission in one cable
  • Built-in strain relief, highly rugged
  • Suitable for 10 Gbit service – high-quality, fast and robust connection for the transmission of digital signals
  • Indoor and outdoor transmissions with long transmission lengths

Application:

  • For fixed installation
  • Connection of digital cameras for broadcasting, studio and film industry


Specifications:

Article number591-2241TPU
NameSC-Octopus Hybrid 224 TPU
Application areaInstallation
Application areaStudio / Broadcast
Colourblack
Colour detailedblack
Construction((2x9/125H+4x20AWG2Y+2xAWG24)2Y)(ZN)B11Y
Construction (power)4 x 0,50 mm²
Construction (control)2LI2Y0,22mm²Y
Jacket materialTPU
Jacket material (power)TPE
Jacket material (control)TPE
Jacket Ø mm9,20
Jacket Ø (power) mm1,50
Jacket Ø (control) mm1,10
Number of Channels (power)4
Number of Channels (control)2
Inner conductor (power)1
Inner conductor (power) mm²0,50
Inner conductors (control) mm²0,22
Inner conductor Ø (power) mm0,80
Inner conductor Ø (control) mm0,53
ShieldingTin-plated Cu braid, steel rope
Shielding factor %90
Weight per 1 m g115.8
UV-resistantyes
Style variantround
Packingbulk stock
Core (fiber) µm9
Cladding (fiber) µm125
Fibres2
QualityOS2 (Typ G.652.D)
Temperature min. °C-40
Temperature max. °C70
Max. tensile force kN0,7
Width mm9,2
Height mm9,2
BPVo-EuroclassFca
