Our endurance test champion...
Advantages:
- Enormously powerful and clear sound image with bass, guitar and keyboard

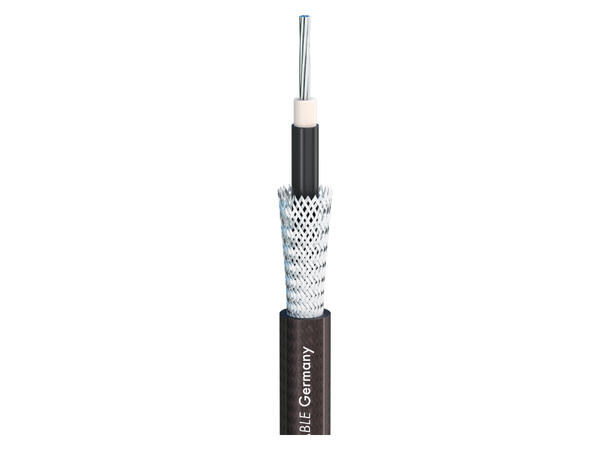

- Dual shielding by a combination of a copper mesh screen plus conductive
carbon screen - Low-loss transmission due to low capacitance and large wire gauge
- Very flexible and easy to reel because of its fine single litz design
- Extremely durable and sturdy due to a special high-quality PVC jacket compound
Application:
- High quality guitar and bass cable for studio and stage
- Unbalanced cable for keyboards, samplers, mixing desks etc.
- Connection lead for CD/DVD/BluRay player/recorder
Specifications:
| Article number | 300-0071 |
|---|
| Name | SC-Spirit XXL |
|---|
| EAN | 4049371004626 |
|---|
| Properties | Analog |
|---|
| Properties | OFC oxygen free copper |
|---|
| Application area | Stage / live |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application | Instrument Cable |
|---|
| Colour | black-tranparent |
|---|
| Colour detailed | black, transparent |
|---|
| Signal transmission | asymmetrical |
|---|

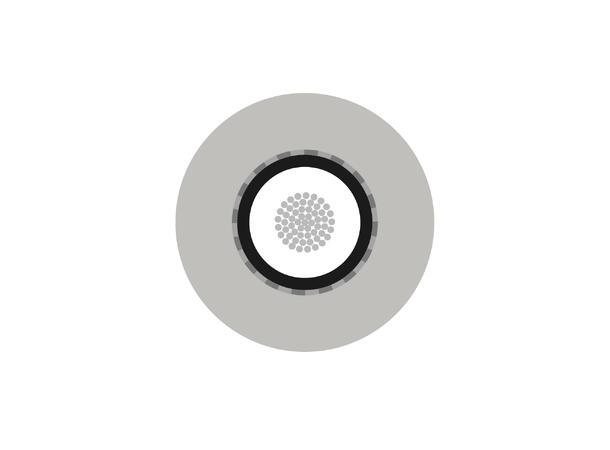

| Construction | LI2Y(LS)CY 1x0,75mm² |
|---|
| Jacket material | PVC |
|---|
| Jacket material (audio) | transp. PVC |
|---|
| Jacket Ø mm | 6,80 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 1 |
|---|
| Inner conductor (audio) mm² | 0,75 |
|---|
| Inner conductor Ø (audio) mm | 0,98 |
|---|
| AWG (audio) | 18 |
|---|
| Shielding | Copper spiral tin-plated + semiconductor |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (audio) | 42 |
|---|
| Copper strand Ø (audio) mm | 0,15 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Conductor insulation Ø mm | 3,10 |
|---|
| Weight per 1 m g | 52 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,26 |
|---|
| Style variant | round |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -30 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 6,8 |
|---|
| Height mm | 6,8 |
|---|
| Capac. cond./shield. per 1 m (audio) pF | 86 |
|---|
| Capacity wire/electic screen at 1 ft. (audio) pF | 26,2128 |
|---|
| Insulation resist. per 1 km GO | 0,05 |
|---|
| Insulation resist. per 1000 feet GO | 0,0152 |
|---|
| Insulation resist. per 1 km (audio) GO | 0,05 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,0152 |
|---|
| Conductor resistance per 1 km O | 25 |
|---|
| Conductor resistance per 1000 ft. O | 7,62 |
|---|
| BPVo-Euroclass | Fca |
|---|
