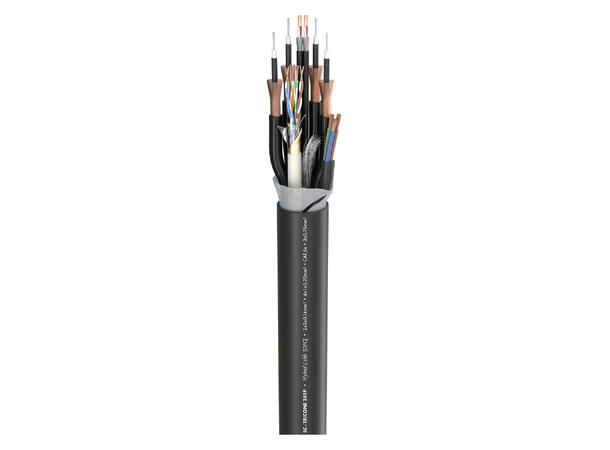

SOMMER TRICONE 241P Hybridkabel power/audio/CAT.5e, PVC Ø 21,80 mm, sort SOMMER TRICONE 241P Hybridkabel power/audio/CAT.5e, PVC Ø 21,80 mm, sort SOMMER TRICONE 241P Hybridkabel power/audio/CAT.5e, PVC Ø 21,80 mm, sort

SOMMER TRICONE 241P Hybridkabel

power/audio/CAT.5e, PVC Ø 21,80 mm, sort

Varenr: 141508
Alt. varenr: 301-2413
326,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Two-Four-One – the allround carefree package...

for guitarists to realise the 4-cable method and other features. The SC-TRICONE 241P is the optimal connection between instrument, amp, effects device and MIDI equipment. It contains four full-fledged, double-shielded instrument lines, perfect for
an effects send/return connection before the amp plus an effects send/return loop between pre and power amp. So we have included two balanced lines for connecting MIDI signals, effects send/return or for amp switching resp. In addition the SC-TRICONE 241P has a CAT.5e network line for switching control devices and a power line with 3 x 0,75 mm² wire cross-section to supply your effects board.


Advantages:

  • Compact all-in-one wiring in a flexible round jacket
  • Also available ready-made for instant use
  • High-quality single components with shielded AF and instrument lines

Application:

  • High-quality multicore connection for the discerning guitarist
  • Complete wiring for amps, MIDI components, effects boards
  • Versatile use for patch or rack wiring


Specifications:

Article number301-2413
NameSC-TRICONE 241P
EAN4049371215718
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaInstallation
Application areaMobile outdoor / indoor
Application areaStage / live
Applicationhybrid cable
Colourblack
Colour detailedblack
Construction (audio)(2LI2Y0,14mm²)CY
Construction (power)3 x 0,75 mm²
Construction (network)LI2Y(ST) 4x2x0,14mm²/300MHz
Construction (instrument)4 x LI2Y(LS)DY1x0,22mm²
Jacket materialPVC
Jacket Ø mm21,80
Jacket Ø (audio) mm3,80
Jacket Ø (power) mm5,60
Jacket Ø (network) mm5,70
Jacket Ø (instrument) mm5,90
Number of Channels (audio)2
Number of Channels (power)1
Number of Channels (network)1
Number of Channels (instrument)1
Inner conductor (audio)2
Inner conductor (power)3
Inner conductor (network)8
Inner conductor4
Inner conductor (audio) mm²0,14
Inner conductor (power) mm²0,75
Inner conductor (network) mm²0,14
Inner conductor mm²0,14
Inner conductor Ø (audio) mm0,42
Inner conductor Ø (power) mm0,98
Inner conductor Ø (network) mm0,42
AWG (audio)26
AWG (power)18
AWG (network)26
AWG (instrument)24
Shielding (audio)Copper braiding
Shielding (network)AL / PT foil + filler strand
Shielding (instrument)Copper braided shielding + semiconductor
Shielding factor %100
Copper strands (audio)18
Copper strands (network)19
Copper strands (instrument)28
Copper strand Ø (audio) mm0,10
Copper strand Ø (network) mm0,10
Copper strand Ø (instrument) mm0,1
Wire insulation material (audio)PE
Wire insulation material (instrument)Foam/Skin-PE
Conductor insulation Ø (audio) mm1,15
Wire insulation material Ø (instrument) mm1,80
Weight per 1 m g460
Fire load per m kWh3,4
Style variantround
Packingbulk stock
CAT-TypeCAT.5e
Temperature min. °C-15
Temperature max. °C75
Width mm21,8
Height mm21,8
Capac. cond./cond. per 1 m (audio) pF65
Capacity wire/wire at 1 ft. (audio) pF19,812
Capacity wire/wire at 1m (network) pF48
Capacity wire/wire at 1 ft. (network) pF14,6304
Capac. cond./shield. per 1 m (audio) pF130
Capacity wire/electic screen at 1 ft. (audio) pF39,624
Capacity wire/electic screen at 1m (instrument) pF130
Capacity wire/electic screen at 1 ft. (instrument) pF39,624
Impedance (network) O100
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Insulation resist. per 1 km (network) GO5
Insulation resist. per 1000 feet (network) GO1,524
Insulation resist. per 1km (instrument) GO1
Insulation resist. per 1000 feet (instrument) GO0,3048
Conductor resistance per 1 km (audio) O135
Conductor resistance per 1000 ft. (audio) O41,148
Conductor resistance per 1 km (network) O142
Conductor resistance per 1000 ft. (network) O43,2816
Conductor resistance per 1 km (instrument) O90
Conductor resistance per 1000 ft. (instrument) O27,432
Max. delay (skew)480 ns @ 100 MHz/100 m
BPVo-EuroclassFca
