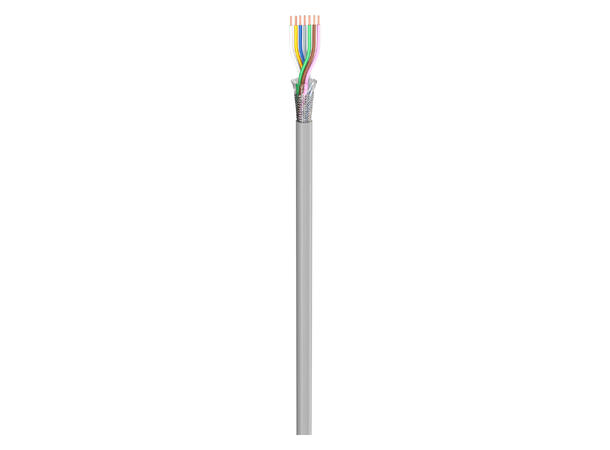

SOMMER Control Flex Kontrollkabel

7 x0,14mm², PVC FH, Ø 4,80mm, grå, Eca

Varenr: 141538

Alt. varenr: 380-0056-07014

28,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Ledere

2 x 0,14 mm2

2 x 0,25 mm2

2 x 0,34 mm2

2 x 0,50 mm2

2 x 0,75 mm2

3 x 0,14 mm2

3 x 0,25 mm2

3 x 0,34 mm2

3 x 0,50 mm2

3 x 0,75 mm2

4 x 0,14 mm2

4 x 0,25 mm2

4 x 0,34 mm2

4 x 0,50 mm2

4 x 0,75 mm2

5 x 0,14 mm2

5 x 0,25 mm2

5 x 0,34 mm2

5 x 0,50 mm2

5 x 0,75 mm2

6 x 0,14 mm2

6 x 0,25 mm2

6 x 0,34 mm2

6 x 0,50 mm2

6 x 0,75 mm2

7 x 0,14 mm2

7 x 0,25 mm2

7 x 0,34 mm2

7 x 0,50 mm2

7 x 0,75 mm2

8 x 0,14 mm2

8 x 0,25 mm2

8 x 0,34 mm2

8 x 0,50 mm2

8 x 0,75 mm2

10 x 0,14 mm2

10 x 0,25 mm2

10 x 0,34 mm2

10 x 0,50 mm2

10 x 0,75 mm2

12 x 0,14 mm2

12 x 0,25 mm2

12 x 0,34 mm2

12 x 0,50 mm2

12 x 0,75 mm2

14 x 0,14 mm2

16 x 0,14 mm2

16 x 0,25 mm2

16 x 0,50 mm2

18 x 0,14 mm2

18 x 0,34 mm2

18 x 0,75 mm2

25 x 0,14 mm2

25 x 0,25 mm2

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Paying the taxman...

Advantages:

Available from stock in seven different wire gauges
Remains flexible in moving conditions down to –10 °C (fixed installation -30 °C)
Largely oil-resistant
Self-extinguishing and flame-retardant in compliance with VDE 0472, Part 804, test type B
Very easy handling

Application:

Fixed installation in building technology
Signal line, control engineering
Transmission of the RS232 and RS422 standards
Speaker Cable for ELA technology

Specifications:

	1
Article number	380-0056-07014
Name	SC-Control Flex
EAN	4049371004954
Properties	OFC oxygen free copper
Properties	Analog
Application area	Mobile outdoor / indoor
Application area	ELA 100 V
Application area	Installation
Application area	Studio / Broadcast
Application	control lead
Colour	grey
Colour detailed	grey
Construction	LIY-CY
Jacket material	PVC, flame-retardant
Jacket material (control)	PVC, flame-retardant and self-extinguishing accord.
Jacket Ø mm	4,80
Number of Channels (control)	7
Inner conductors (control) mm²	0,14
Inner conductor Ø (control) mm	0,42
AWG (control)	25
Shielding	Copper braiding tin-plated
Shielding factor %	90
Copper strands (control)	18
Copper strand Ø (control) mm	0,10
Conductor insulation material	PVC, flame-retardant and self-extinguishing accord.
Weight per 1 m g	44
Style variant	round
Packing	500 m spool
Packing	100 m spool
Temperature min. °C	-30
Temperature max. °C	80
Width mm	4,8
Height mm	4,8
Capacity wire/wire at 1m (control) pF	120
Capacity wire/wire at 1 ft. (control) pF	36,576
Capacity wire/electic screen at 1m (control) pF	240
Capacity wire/electic screen at 1 ft. (control) pF	73,152
Insulation resist. per 1 km GO	0,2
Insulation resist. per 1000 feet GO	0,061
Insulation resist. per 1 km (control) GO	0,2
Insulation resist. per 1000 feet (control) GO	0,061
Conductor resistance per 1 km O	138
Conductor resistance per 1000 ft. O	42,0624
