Her er du nå: Lyd, lys & scene   >   Lys   >   Strømdistribusjon   >   Kabel   >   SOMMER Rubberflex Strømkabel

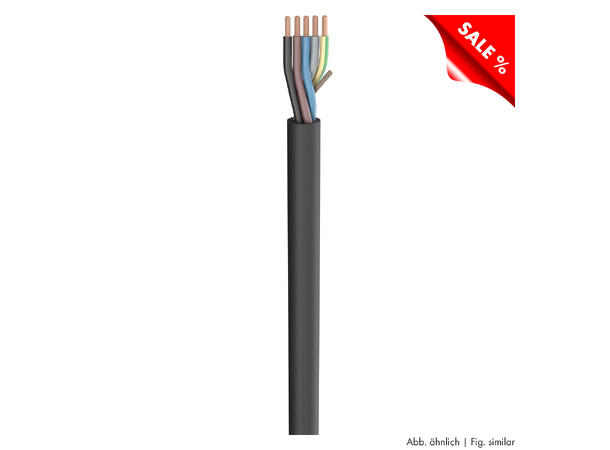

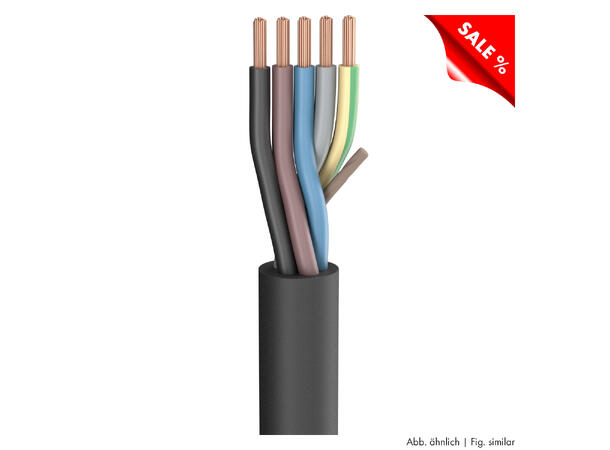

SOMMER Rubberflex Strømkabel 5 x 25,00 mm², gummi, Ø 36,00 mm, sort SOMMER Rubberflex Strømkabel 5 x 25,00 mm², gummi, Ø 36,00 mm, sort

SOMMER Rubberflex Strømkabel

5 x 25,00 mm², gummi, Ø 36,00 mm, sort

Varenr: 141580
Alt. varenr: 700-0101-05250
597,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ledere
3 x 4,00 mm2
3 x 4,00 mm2
5 x 2,50 mm2
5 x 2,50 mm2
5 x 25,00 mm2
5 x 25,00 mm2
5 x 6,00 mm2
5 x 6,00 mm2
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

You won‘t make a mistake...

if you go with the flow, for the H07RN-F rubber jacket lead is one of the best-selling cables on the world market. It can be used as a power line for audio components, spotlights and heavy machinery (mechanical engineering) and outdoors as well. This cable is very robust, highly flexible and has an extremely wear-resistant and durable Polychloropene jacket.

Approved according to VDE 0282, Part 4/HD 22.453, in conformity with the EC Low-Voltage Directive 73/23/EWG.


Advantages:

  • Extremely dependable due to flame-retardant Polychloropene jacket
    (polychloroprene rubber)
  • Very flexible owing to fine litz wire stranding in compliance with VDE 0293
  • Also suitable for outdoor use

Application:

  • Power lead for all types of electrical appliances
  • Audio technology (light dimmers, spotlights, amplifiers, racks ...)
  • Mechanical engineering and agricultural machinery


Specifications:

Article number700-0101-05250
NameSC-Rubberflex
EAN4049371006262
Application areaInstallation
Application areaMobile outdoor / indoor
Application areaStage / live
ApplicationRubber Sleeve Cable
Colourblack
Colour detailedblack
ConstructionH07RN-F 5x25,0mm²
Jacket materialrubber
Jacket Ø mm36,00
Number of Channels (power)1
Inner conductor (power)5
Inner conductor (power) mm²25,00
Inner conductor Ø (power) mm5,64
AWG (power)3
Conductor insulation materialrubber
Weight per 1 m g2078
UV-resistantyes
Style variantround
Packingbulk stock
Temperature min. °C-30
Temperature max. °C60
Width mm36
Height mm36
Insulation resist. per 1 km GO0,001
Insulation resist. per 1000 feet GO0,0003
Insulation resist. per 1km (power) GO0,001
Insulation resist. per 1000 feet (power) GO0,0003
Test voltage V2000
BPVo-EuroclassFca
