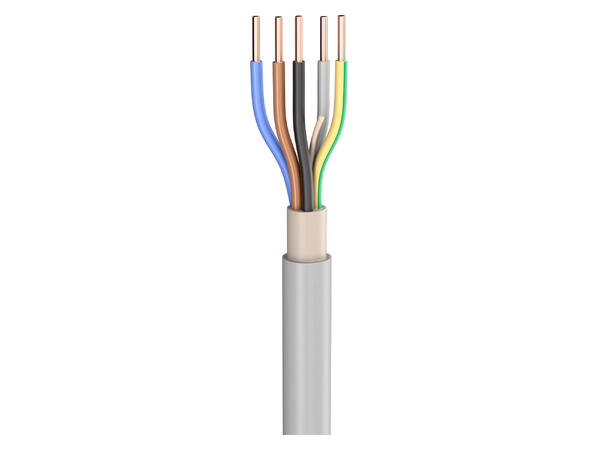

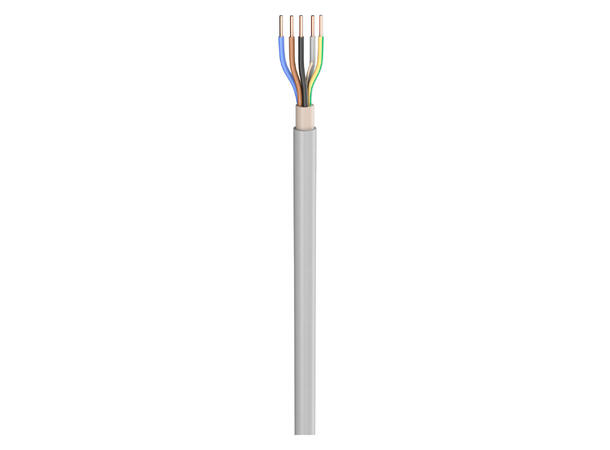

SOMMER NYM-J Strømkabel

5x 16,00mm², PVC FH, Ø 22,70mm, grå

Varenr: 141606

Alt. varenr: 720-0016-05160

565,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Ledere

1 x 1,50 mm2

1 x 2,50 mm2

1 x 4,00 mm2

1 x 6,00 mm2

3 x 1,50 mm2

3 x 2,50 mm2

3 x 4,00 mm2

3 x 6,00 mm2

4 x 10,00 mm2

4 x 1,50 mm2

4 x 16,00 mm2

4 x 2,50 mm2

4 x 25,00 mm2

4 x 35,00 mm2

4 x 4,00 mm2

4 x 6,00 mm2

5 x 10,00 mm2

5 x 1,50 mm2

5 x 16,00 mm2

5 x 2,50 mm2

5 x 25,00 mm2

5 x 4,00 mm2

5 x 6,00 mm2

7 x 1,50 mm2

7 x 2,50 mm2

1 x 10,00 mm2

1 x 16,00 mm2

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Take your NYMs easy...

for these PVC jacketed lines are simply suitable for all kinds of indoor and outdoor installations (surface and flush mounting) as long as they are not exposed to direct sunlight. The wires are colour-coded according to VDE 0293 and stranded in layers. These leads comply with the EC Low-Voltage Directive EWG93/68/ or EWG73/23 resp. The NYM-J lines have an additional green-yellow protective earth conductor.

Advantages:

Complies with the VDE 0250, VDE 0482-332-1-2 / IEC 60332-1 standards and other requirements
mobile application up to +5°C

Application:

for industrial and home installations
for indoor and outdoor laying

Specifications:

Article number	720-0016-05160
Name	NYM-J
EAN	4049371051699
Properties	OFC oxygen free copper
Properties	Analog
Application area	ELA 100 V
Application area	Installation
Application	Power Lead
Colour	grey
Colour detailed	grey
Construction	NYM-J
Jacket material	PVC, flame-retardant
Jacket material (power)	PVC, flame retardant and self-extinguishing
Jacket Ø mm	22,70
Number of Channels (power)	1
Inner conductor (power)	5
Inner conductor (power) mm²	16,00
Inner conductor Ø (power) mm	4,51
AWG (power)	5
Copper strands (power)	1
Copper strand Ø (power) mm	2,76
Conductor insulation material	PVC
Weight per 1 m g	1225
Style variant	round
Packing	bulk stock
Temperature min. °C	-40
Temperature max. °C	70
Width mm	22,7
Height mm	22,7
Insulation resist. per 1 km GO	0,02
Insulation resist. per 1000 feet GO	0,0061
Insulation resist. per 1km (power) GO	0,02
Insulation resist. per 1000 feet (power) GO	0,0061
Test voltage V	2000
Nominal voltage (power) V	500
Operating voltage (power) V	350
Old article number	720-0011-05160
