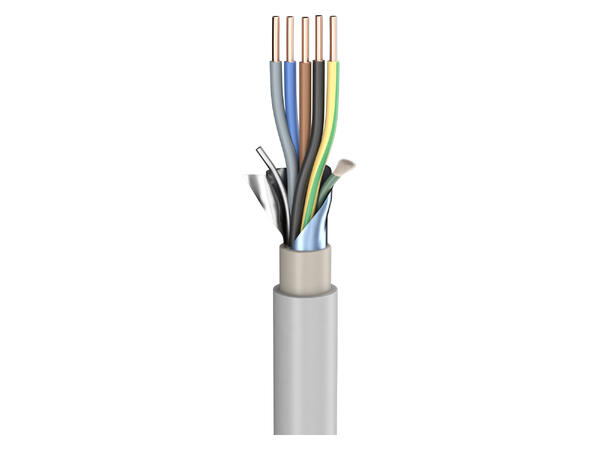

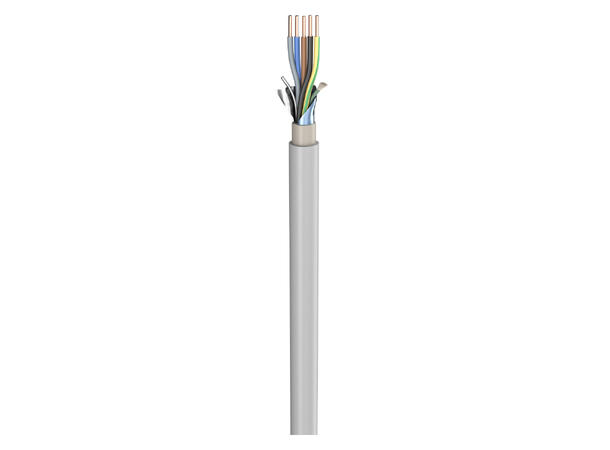

SOMMER (N)YM-(ST)-J Strømkabel

5x 4,00mm², PVC FH, Ø 14,90mm, grå

Varenr: 141625

Alt. varenr: 720-0056-05040

145,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Ledere

3 x 1,50 mm2

3 x 2,50 mm2

3 x 4,00 mm2

4 x 1,50 mm2

4 x 2,50 mm2

4 x 4,00 mm2

5 x 10,00 mm2

5 x 1,50 mm2

5 x 2,50 mm2

5 x 4,00 mm2

5 x 6,00 mm2

7 x 1,50 mm2

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

EMC shielding against electromagnetic interfering signals
Complies with the VDE 0250, VDE 0482-332-1-2 / IEC 60332-1 standards and other requirements
mobile application up to +5°C

For all installations – especially in sensitive locations like e.g. hospitals, server rooms, studios
For surface and flush mounting as well as wet rooms

Article number	720-0056-05040
Name	(N)YM-(ST)-J
EAN	4049371051880
Properties	Analog
Properties	OFC oxygen free copper
Application area	ELA 100 V
Application area	Installation
Application	Power Lead
Colour	grey
Colour detailed	grey
Construction	(N)YM-(ST)-J
Jacket material	PVC, flame-retardant
Jacket material (power)	PVC, flame retardant and self-extinguishing
Jacket Ø mm	14,90
Number of Channels (power)	1
Inner conductor (power)	5
Inner conductor (power) mm²	4,00
Inner conductor Ø (power) mm	2,26
AWG (power)	11
Shielding	AL / PT-foil + Tinned drain wire
Copper strands (power)	1
Copper strand Ø (power) mm	2,26
Conductor insulation material	PVC
Weight per 1 m g	428
Style variant	round
Packing	bulk stock
Temperature min. °C	-40
Temperature max. °C	70
Width mm	14,9
Height mm	14,9
Insulation resist. per 1 km GO	0,02
Insulation resist. per 1000 feet GO	0,0061
Insulation resist. per 1km (power) GO	0,02
Insulation resist. per 1000 feet (power) GO	0,0061
Test voltage V	2000
Nominal voltage (power) V	500
Operating voltage (power) V	350
Old article number	720-0051-05040
BPVo-Euroclass	Fca
