Especially for permanent installations...
The halogen-free and highly fire-resistant CPR version is recommended; electrically and technically it equals the SC-ELEPHANT ROBUST with PVC jacket.
Advantages:
- Loss-free transmission due to the special litz stranding technology
- Compatible with CA-COM 8-pin, NL8, LKS19, and EP5 connectors
- Easy to use due to well-insulated, numbered wires
Miscellaneous:
Application:
Specifications:
| Article number | 490-0051-840FC |
|---|

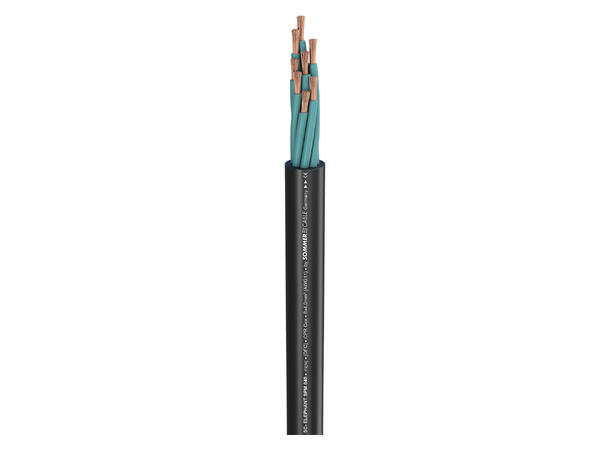

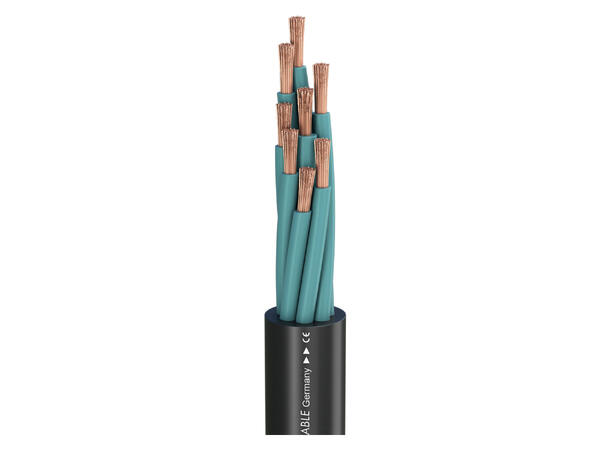

| Name | Elephant Robust SPM840 CPR |
|---|
| EAN | 4049371403658 |
|---|
| Properties | FRNC flame retardant |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Analog |
|---|
| Properties | Halogen-free / LSZH |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Installation |
|---|
| Application area | Stage / live |
|---|
| Application area | ELA 100 V |
|---|
| Application | Speaker Cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Construction | (8LIY4,0mm²)Y |
|---|
| Jacket material | FRNC |
|---|
| Jacket Ø mm | 16,40 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 8 |
|---|
| Inner conductor (audio) mm² | 4,00 |
|---|
| Inner conductor Ø (audio) mm | 2,26 |
|---|
| AWG (audio) | 11 |
|---|
| Copper strands (audio) | 48 |
|---|
| Copper strand Ø (audio) mm | 0,31 |
|---|
| Conductor insulation Ø mm | 4,00 |
|---|
| Weight per 1 m g | 485 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 2,25 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Temperature min. °C | -40 |
|---|
| Temperature max. °C | 85 |
|---|
| Width mm | 16,4 |
|---|
| Height mm | 16,4 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 95 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 28,956 |
|---|
| Surge impedance (audio) O | 52 |
|---|
| Insulation resist. per 1 km GO | 0,005 |
|---|
| Insulation resist. per 1000 feet GO | 0,0015 |
|---|
| Insulation resist. per 1 km (audio) GO | 0,005 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,0015 |
|---|
| Conductor resistance per 1 km O | 4,5 |
|---|
| Conductor resistance per 1000 ft. O | 1,3716 |
|---|
| Test voltage V | 2000 |
|---|
| BPVo-Euroclass | Cca |
|---|
