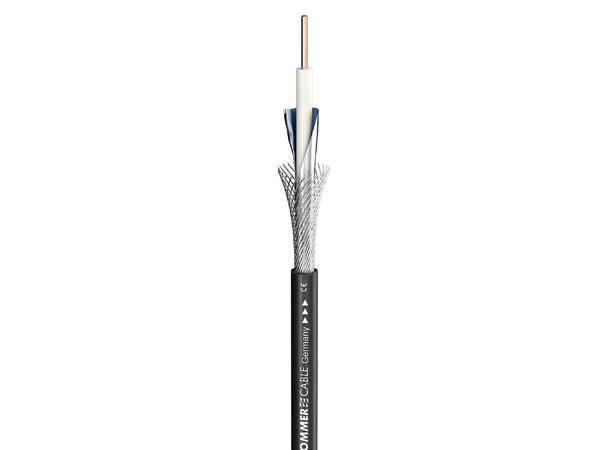

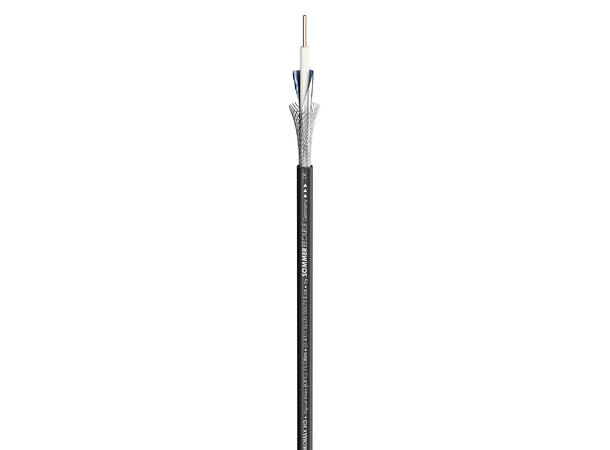

SOMMER Monomax 0.41/1.9 CPR Videokabel

1 x 0,41, PVC Ø 3,60 mm, sort, Eca

Varenr: 141695
Alt. varenr: 600-0041C
12,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

The slimness craze …

Has grabbed our new SC-MONOMAX HD 0.41/1.9. With its 3.6 mm (0.14 in.) in diameter the HD-SDI cable is ideal for almost invisible cable connections and super compact patching, e.g. in control cabinets where every square millimeter counts. When using the double thickness HD-SDI standard sizes 0.8/3.7, things can get very cramped with multi-bundles. On the other hand, thinner size 0.3/1.8 video lines are too fragile against kinks, bends and also more susceptible of heat accumulation which will badly strain the cable insulation over time and can also impair the transmission quality. The SC-MONOMAX HD 0.41/1.9 has a gas-injected insulation to ensure lowest attenuation values and a robust outer jacket which will keep up these excellent electrical properties even in the long run.


Advantages:

  • Low attenuation due to skin-gas-skin foamed insulation
  • Superb shielding by a combined Cu braid plus foil screen
  • Lowest tolerances in the characteristic impedance (±3 %)
  • Compact with a small outer diameter
  • Robust and durable cable construction in spite of ultra small design

Application:

  • As flexible HD-SDI video cable for switchgear construction
  • For all kinds of unbalanced interior wirings
  • For compact cable connections in the video and home cinema sector


Specifications:

Article number600-0041C
NameSC-Monomax 0.41/1.9 CPR-Version
EAN4049371377904
PropertiesDigital 75 O
PropertiesAnalog
Application areaStudio / Broadcast
Application areaInstallation
Applicationvideo cable
Colourblack
Colour detailedblack
Jacket materialPVC
Jacket Ø mm3,60
Number of Channels (video)1
Inner conductor Ø (video) mm0,41
AWG (video)26

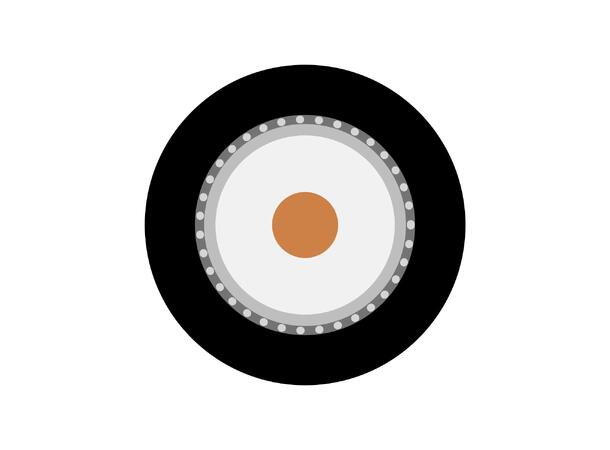

ShieldingCopper braiding tin-plated + AL / PT foil
Copper strands (video)1
Copper strand Ø (video) mm0,41
Conductor insulation Ø mm1,90
Weight per 1 m g14.18
UV-resistantyes
Fire load per m kWh0,06
Style variantround
Packing100 m spool
Velocity factor0,85
Width mm3,6
Height mm3,6
Capacity wire/electic screen at 1m (video) pF53
Capacity wire/electic screen at 1 ft. (video) pF16,1544
Damping at 50 MHz (100m & 20° C) dB11,4
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB3,4747
Damping at 200 MHz (100m & 20° C) dB22,1
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB6,7361
Damping at 470 MHz (100m & 20° C) dB32,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB10,0279
Damping at 862 MHz (100m & 20° C) dB44,8
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB13,655
Damping at 1000 MHz (100m & 20° C) dB48,8
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB14,8742
Damping at 1485 MHz (100m & 20° C) dB58,9
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB17,9527
Damping at 1750 MHz (100m & 20° C) dB63,5
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB19,3548
Damping at 2150 MHz (100m & 20° C) dB69,6
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB21,2141
Damping at 3000 MHz (100m & 20° C) dB84,7
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB25,8166
Impedance O75
Conductor resistance per 1 km O320
Conductor resistance per 1000 ft. O97,536
Shield. resistance per 1 km O26
Shield. resistance per 1000 ft. O7,9248
Old article number600-0041
BPVo-EuroclassEca
