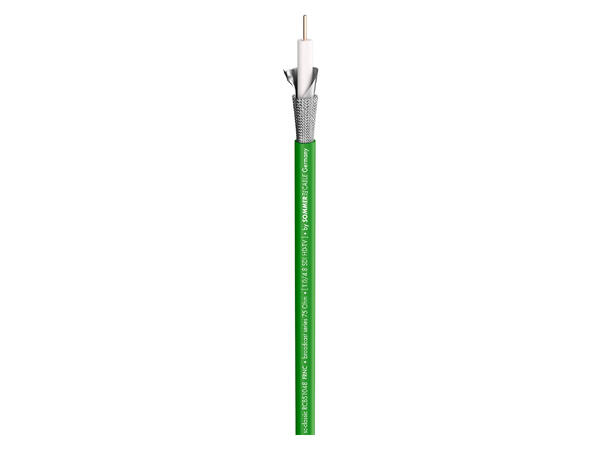

SOMMER RG Classic Broadcast Videokabel 1 x 1,00, FRNC Ø 7,10 mm, grønn

SOMMER RG Classic Broadcast Videokabel

1 x 1,00, FRNC Ø 7,10 mm, grønn

Varenr: 141708

Alt. varenr: 600-0144F

42,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Ytterkappe, materiale

PVC

FRNC

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m
1000m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Suited for short and long distance flights...

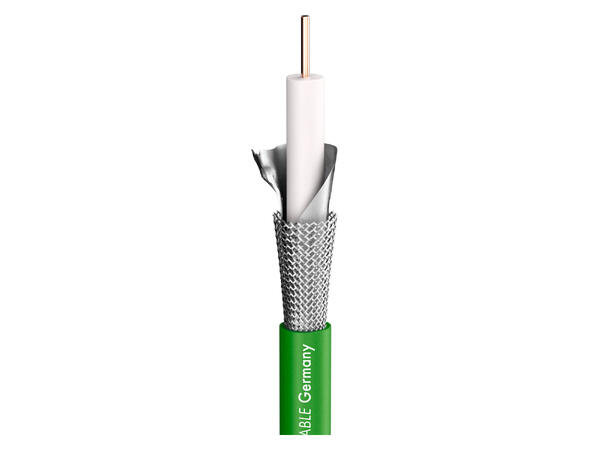

Our SC-RG Classic Broadcast 1.0/4.8 is suitable. It complies with all the requirements which are nowadays imposed on high-quality HD-SDI/HDTV cables and, owing to the use of high-quality materials, promises a long service life. To achieve ultra low damping values, we have equipped the cable with a solid wire of oxygen-free copper (OFC), a gas-injected insulation and a double shielding (Cu braid + AL/PT foil). Please note the transmission length for HD-SDI transfer as specified in the technical data. Of course, with analog video transmissions much longer transmission paths are possible.

Advantages:

Long life due to non-aging jacket
Consistent, optimised electrical values due to the use of a massive
OFC wire
Gas-injected insulation for best damping values

Application:

HD-SDI-video transmission in the professional broadcasting/studio sector
OB van technology
HF technology and antenna construction
For fixed installations

Specifications:

Article number	600-0144F
Name	SC-RG Classic Broadcast
EAN	4049371001816
Properties	HDTV
Properties	Digital 75 O
Properties	Halogen-free / LSZH
Properties	OFC oxygen free copper
Properties	Analog
Properties	FRNC flame retardant
Properties	SDI
Application area	Installation
Application area	ELA 100 V
Application	video cable
Colour	green
Colour detailed	green

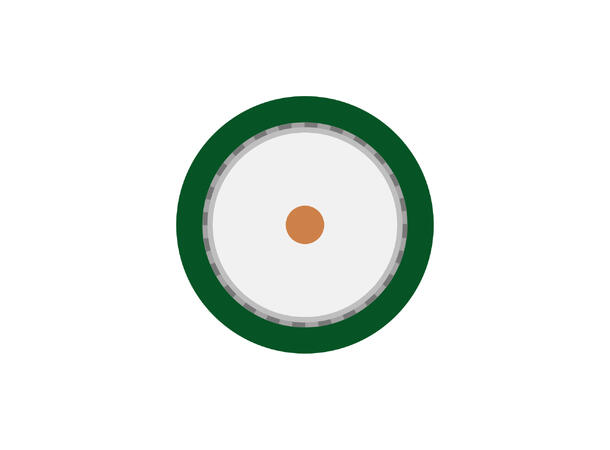

Construction	02YS(ST)CH1,0/4,8 HD-SDI
Jacket material	FRNC
Jacket Ø mm	7,10
Number of Channels (video)	1
Inner conductor (video)	1
Inner conductor (video) mm²	0,79
Inner conductor Ø (video) mm	1,00
AWG (video)	18
Shielding	Copper braiding tin-plated + AL / PT foil
Shielding factor %	100
Copper strands (video)	1
Copper strand Ø (video) mm	1,00
Conductor insulation material	Gas Injected-PE
Conductor insulation Ø mm	4,80
Weight per 1 m g	64
Fire load per m kWh	0,21
Style variant	round
Packing	1000 m spool
Packing	100 m spool
Packing	500 m spool
Velocity factor	0,82
Temperature min. °C	-30
Temperature max. °C	70

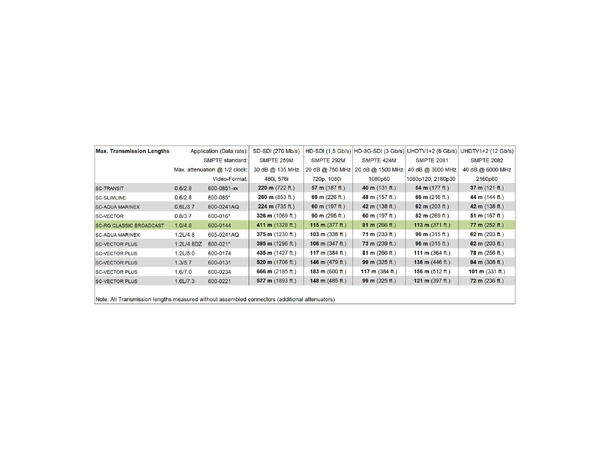

Max. transmission distance (HD-SDI) m	150
Max. transmission distance (3G) m	100
Width mm	7,1
Height mm	7,1
Capacity wire/electic screen at 1m (video) pF	53
Capacity wire/electic screen at 1 ft. (video) pF	16,1544

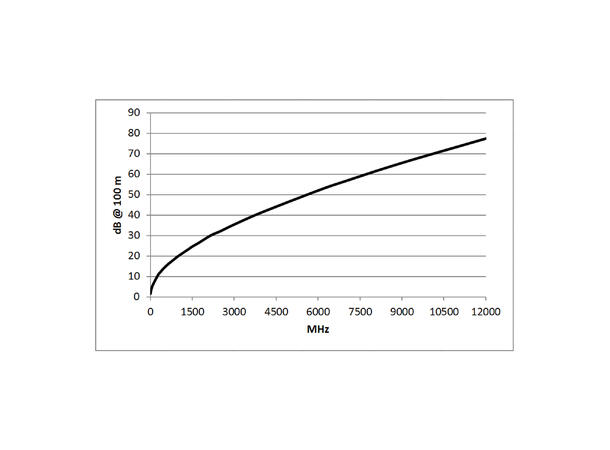

Damping at 50 MHz (100m & 20° C) dB	4,5
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	1,3716
Damping at 200 MHz (100m & 20° C) dB	8,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	2,7127
Damping at 470 MHz (100m & 20° C) dB	13,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	4,2367
Damping at 862 MHz (100m & 20° C) dB	18,5
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	5,6388
Damping at 1000 MHz (100m & 20° C) dB	20
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	6,096
Damping at 1485 MHz (100m & 20° C) dB	24,5
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	7,4676
Damping at 1750 MHz (100m & 20° C) dB	26,6
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	8,1077
Damping at 2150 MHz (100m & 20° C) dB	30
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	9,144
Damping at 3000 MHz (100m & 20° C) dB	35,4
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	10,7899
Damping at 6000 MHz (100m & 20° C) dB	52
Damping at 9000 MHz (100m & 20° C) dB	65,5
Damping at 12000 MHz (100m & 20° C) dB	77,4
Impedance O	75
Shield. resistance per 1 km O	7
Shield. resistance per 1000 ft. O	2,1336
BPVo-Euroclass	Fca
