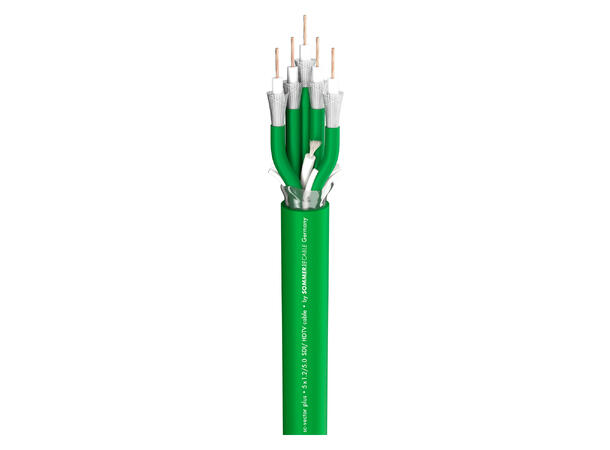

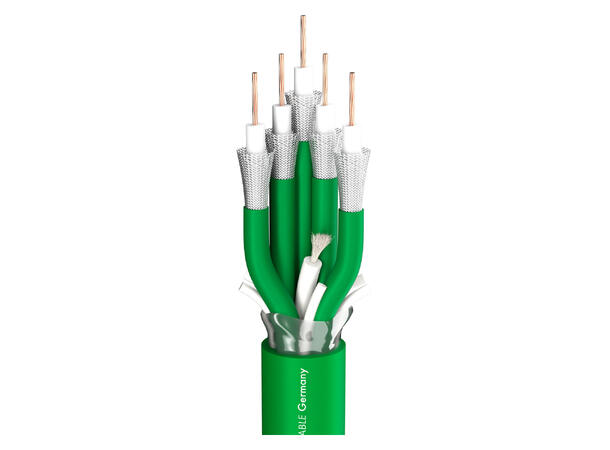

SOMMER Vector Plus 5 Videokabel

1 x 1,20, PVC self-ext. Ø22,10 mm, grønn

Varenr: 141717
Alt. varenr: 600-0174-05
259,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Grønn
Grønn
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

All the way to the horizon...

and then some more. This is the transmission range of the SC-Vector Plus 5 1.2/5.0, because with its special dimensions and construction it has been designed for long distance HD-SDI applications. Even as an analogue cable it is already pretty amazing: you can transmit video signals over distances of up to 1000 m and as an SDI cable it can be used for distances of up to 600 m. The SC-Vector Plus 5 1.2/5.0 has an excellent shielding 100 % made of a tinned copper mesh plus AL/PT foil. The cable is very flexible and also suitable for mobile use on a cable reel. It is available in a single coax or a 5 x coax version with a PVC and FRNC jacket (according to test type C, IEC60332.3c). With HD-SDI the transmission range depends on the bitrate used (compressed or uncompressed). At 1.485 Gb/s (uncompressed) the damping value is drawn on at half the bitrate (720 MHz). The achievable cable length at a damping value <30 dB is considered as a relevant parameter.


Advantages:

  • Superb damping values for long distances of up to 1000 m
  • Robust and durable outer jacket, reelable

Application:

  • Digital HD/SDI long distance transmission, 3G in duplex mode
  • Cabling for sporting events and big TV events; OB van technology


Specifications:

Article number600-0174-05
NameSC-Vector Plus 5
EAN4049371001427
PropertiesAnalog
Properties3G-SDI / UHD
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
PropertiesSDI
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Application areaStudio / Broadcast
Applicationvideo cable
Colourgreen
Colour detailedgreen

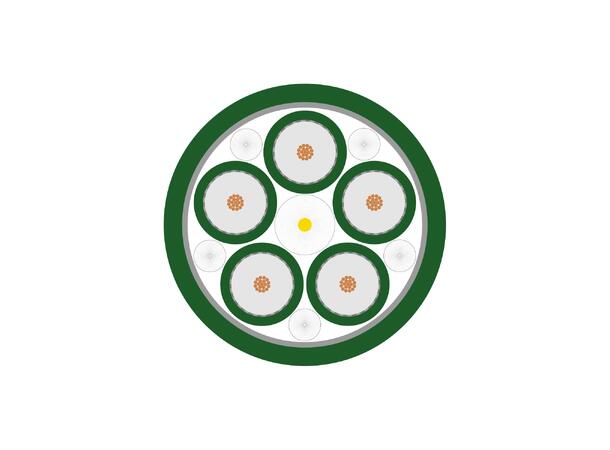

Construction5x02YS(ST)CH1,2/5,0
Jacket materialPVC self-extinguishing
Jacket Ø mm22,10
Number of Channels (video)1
Inner conductor (video)5
Inner conductor (video) mm²0,88
Inner conductor Ø (video) mm1,20
AWG (video)18
ShieldingAL / PT-foil + copper braiding 80 % tin-plated
Shielding factor %100
Copper strands (video)7
Copper strand Ø (video) mm0,40
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm5,00
Weight per 1 m g510
Fire load per m kWh2,1
Style variantround
Packingbulk stock
Velocity factor0,8
Temperature min. °C-10
Temperature max. °C80
Max. Transmission length (3G-SDI) m170
Max. Transmission length (6G-SDI) m70
Width mm22,1
Height mm22,1
Capacity wire/electic screen at 1m (video) pF52
Capacity wire/electic screen at 1 ft. (video) pF15,8496
Damping at 200 MHz (100m & 20° C) dB9,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB3,0175
Damping at 470 MHz (100m & 20° C) dB15,4
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB4,6939
Damping at 862 MHz (100m & 20° C) dB20,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB6,3703
Damping at 1000 MHz (100m & 20° C) dB22,8
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB6,9494
Damping at 1485 MHz (100m & 20° C) dB28
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB8,5344
Damping at 1750 MHz (100m & 20° C) dB30,5
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB9,2964
Damping at 2150 MHz (100m & 20° C) dB34,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB10,4546
Damping at 3000 MHz (100m & 20° C) dB41,5
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB12,6492
Impedance O75
Conductor resistance per 1 km O21
Conductor resistance per 1000 ft. O6,4008
Shield. resistance per 1 km O11
Shield. resistance per 1000 ft. O3,3528
BPVo-EuroclassFca
