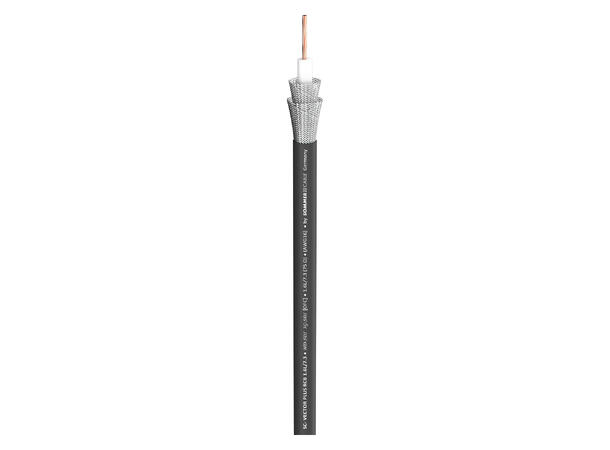

SOMMER Vector Plus RCB Videokabel 1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, sort

SOMMER Vector Plus RCB Videokabel

1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, sort

Varenr: 141725

Alt. varenr: 600-0221

139,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m
1000m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Simultaneous translators...

are true multitasking artists who expertly master the art to listen, translate and voice the translated content all at once. With the HD-SDI transmission, too, additional data such as 16 frame synchronous digital audio channels (AES-3 according to SMPTE 272M and 299M), timecode control data and error checking packages may be embedded alongside the 1080p high-resolution video signal transfer. This will spare you extra audio or control lines. For the high 3G-SDI bandwidths (2.97 Gbit/s according to SMPTE 424M), our 3G-SDI cable series is the perfect means of transport. Ultra-low damping values below 30 dB @ 2.97 Gbit/s are provided by
the large 1.6 OFC inner conductor with its special gas injected skin-foamskin insulation plus dual shielding. The solid wire version is the perfect choice for professional media-technical installations in TV studios and broadcasting vans, while the reelable litz wire version can shine at mobile transmissions with its flexible benefits.

Advantages:

Long life due to non-aging jacket
Constant optimised electrical values owing to intelligent cable design
Gas injected skin-foam-skin insulation for optimal damping values and long distances

Application:

Digital HD-SDI and 3G-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
Mobile HD-SDI (3G) transmissions
Professional media-technical permanent installation according to 3G standard

Specifications:

Article number	600-0221
Name	SC-Vector Plus RCB 1.6L/7.3
EAN	4049371050456
Properties	HDTV
Properties	3G-SDI / UHD
Properties	Analog
Properties	Digital 75 O
Properties	OFC oxygen free copper
Properties	SDI
Application area	Mobile outdoor / indoor
Application area	ELA 100 V
Application area	Installation
Application	video cable
Colour	black
Colour detailed	black

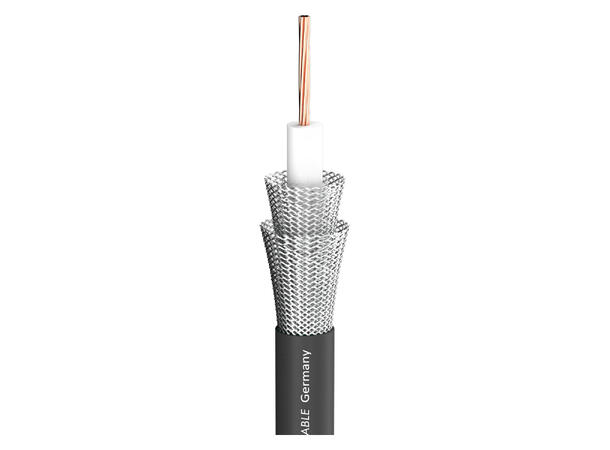

Construction	02YS(ST)CH1,6L/7,3
Jacket material	PVC
Jacket Ø mm	10,30
Number of Channels (video)	1
Inner conductor (video)	1
Inner conductor (video) mm²	1,54
Inner conductor Ø (video) mm	1,40
AWG (video)	16
Shielding	double Copper braiding tin-plated
Shielding factor %	100
Copper strands (video)	7
Copper strand Ø (video) mm	0,53
Conductor insulation material	Skin-Foam-Skin-PE
Conductor insulation Ø mm	7,30
Weight per 1 m g	140
UV-resistant	yes
Fire load per m kWh	0,58
Style variant	round
Packing	100 m spool
Packing	500 m spool
Packing	1000 m spool
Velocity factor	0,82
Temperature min. °C	-30
Temperature max. °C	80

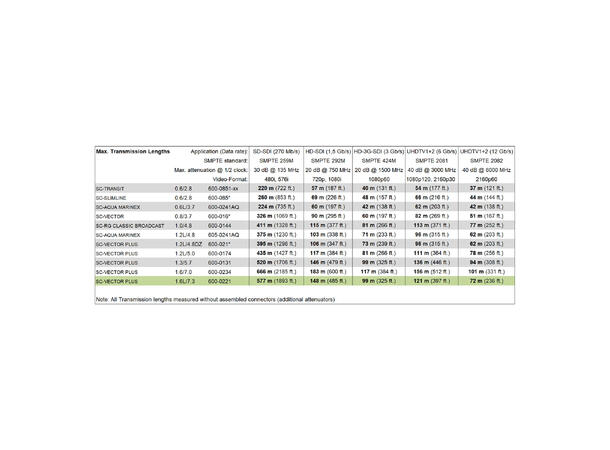

Max. Transmission length (3G-SDI) m	240
Max. Transmission length (6G-SDI) m	100
Width mm	10,3
Height mm	10,3
Capacity wire/electic screen at 1m (video) pF	52,4
Capacity wire/electic screen at 1 ft. (video) pF	15,9715

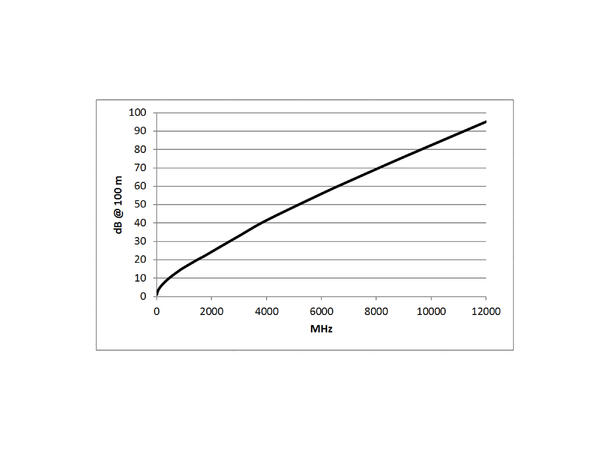

Damping at 200 MHz (100m & 20° C) dB	6,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	1,9812
Damping at 470 MHz (100m & 20° C) dB	10,3
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	3,1394
Damping at 862 MHz (100m & 20° C) dB	14,6
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	4,4501
Damping at 1000 MHz (100m & 20° C) dB	15,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	4,8463
Damping at 1485 MHz (100m & 20° C) dB	20,1
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	6,1265
Damping at 1750 MHz (100m & 20° C) dB	22,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	6,7666
Damping at 2150 MHz (100m & 20° C) dB	25,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	7,7114
Damping at 3000 MHz (100m & 20° C) dB	32,9
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	10,0279
Damping at 6000 MHz (100m & 20° C) dB	55,9
Damping at 9000 MHz (100m & 20° C) dB	75,9
Damping at 12000 MHz (100m & 20° C) dB	95,1
Impedance O	75
Shield. resistance per 1 km O	10
Shield. resistance per 1000 ft. O	3,048
BPVo-Euroclass	Fca
