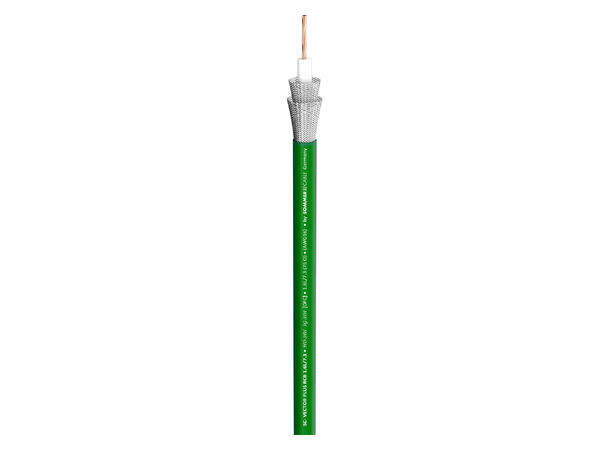

SOMMER Vector Plus RCB Videokabel 1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, grønn SOMMER Vector Plus RCB Videokabel 1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, grønn SOMMER Vector Plus RCB Videokabel 1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, grønn SOMMER Vector Plus RCB Videokabel 1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, grønn SOMMER Vector Plus RCB Videokabel 1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, grønn

SOMMER Vector Plus RCB Videokabel

1.6L/7.3, 1 x 1,40, PVC Ø10,30 mm, grønn

Varenr: 141726
Alt. varenr: 600-0224
137,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
  • 1000m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Simultaneous translators...

are true multitasking artists who expertly master the art to listen, translate and voice the translated content all at once. With the HD-SDI transmission, too, additional data such as 16 frame synchronous digital audio channels (AES-3 according to SMPTE 272M and 299M), timecode control data and error checking packages may be embedded alongside the 1080p high-resolution video signal transfer. This will spare you extra audio or control lines. For the high 3G-SDI bandwidths (2.97 Gbit/s according to SMPTE 424M), our 3G-SDI cable series is the perfect means of transport. Ultra-low damping values below 30 dB @ 2.97 Gbit/s are provided by

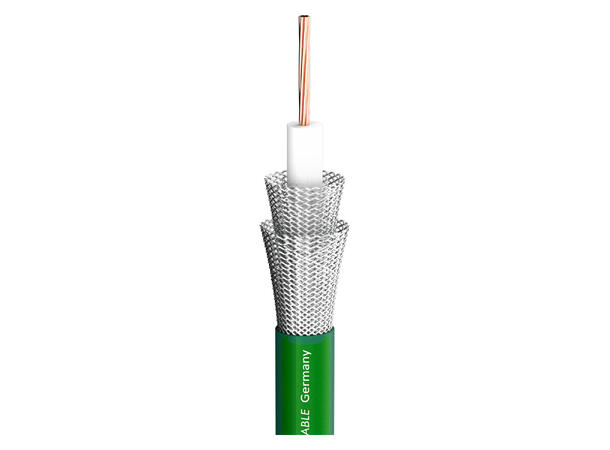

the large 1.6 OFC inner conductor with its special gas injected skin-foamskin insulation plus dual shielding. The solid wire version is the perfect choice for professional media-technical installations in TV studios and broadcasting vans, while the reelable litz wire version can shine at mobile transmissions with its flexible benefits.


Advantages:

  • Long life due to non-aging jacket
  • Constant optimised electrical values owing to intelligent cable design
  • Gas injected skin-foam-skin insulation for optimal damping values and long distances

Application:

  • Digital HD-SDI and 3G-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
  • Mobile HD-SDI (3G) transmissions
  • Professional media-technical permanent installation according to 3G standard


Specifications:

Article number600-0224
NameSC-Vector Plus RCB 1.6L/7.3
EAN4049371050463
PropertiesHDTV
Properties3G-SDI / UHD
PropertiesAnalog
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
PropertiesSDI
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Applicationvideo cable
Colourgreen
Colour detailedgreen

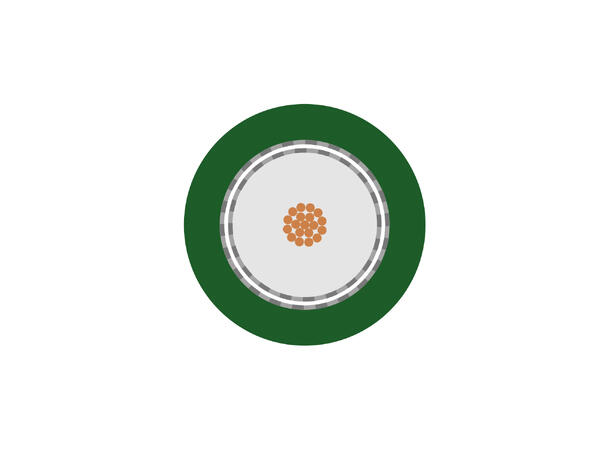

Construction02YS(ST)CH1,6L/7,3
Jacket materialPVC
Jacket Ø mm10,30
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²1,54
Inner conductor Ø (video) mm1,40
AWG (video)16
Shieldingdouble Copper braiding tin-plated
Shielding factor %100
Copper strands (video)7
Copper strand Ø (video) mm0,53
Conductor insulation materialSkin-Foam-Skin-PE
Conductor insulation Ø mm7,30
Weight per 1 m g140
Fire load per m kWh0,58
Style variantround
Packing1000 m spool
Packing100 m spool
Packing500 m spool
Velocity factor0,82
Temperature min. °C-30
Temperature max. °C80

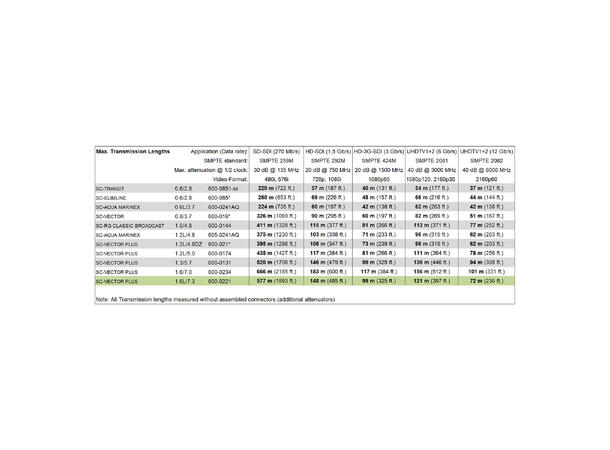

Max. Transmission length (3G-SDI) m240
Max. Transmission length (6G-SDI) m100
Width mm10,3
Height mm10,3
Capacity wire/electic screen at 1m (video) pF52,4
Capacity wire/electic screen at 1 ft. (video) pF15,9715

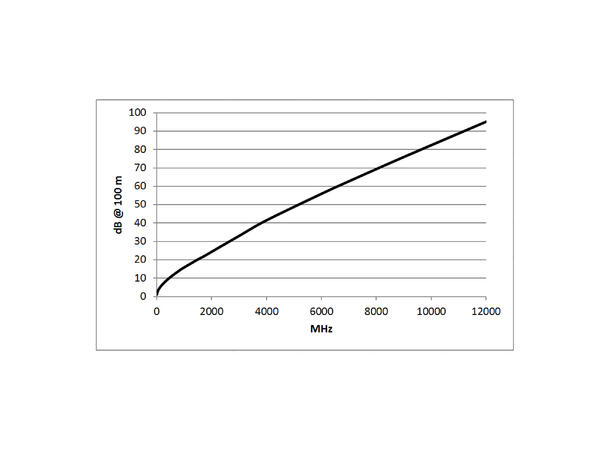

Damping at 200 MHz (100m & 20° C) dB6,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB1,9812
Damping at 470 MHz (100m & 20° C) dB10,3
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB3,1394
Damping at 862 MHz (100m & 20° C) dB14,6
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB4,4501
Damping at 1000 MHz (100m & 20° C) dB15,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB4,8463
Damping at 1485 MHz (100m & 20° C) dB20,1
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB6,1265
Damping at 1750 MHz (100m & 20° C) dB22,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB6,7666
Damping at 2150 MHz (100m & 20° C) dB25,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB7,7114
Damping at 3000 MHz (100m & 20° C) dB32,9
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB10,0279
Damping at 6000 MHz (100m & 20° C) dB55,9
Damping at 9000 MHz (100m & 20° C) dB75,9
Damping at 12000 MHz (100m & 20° C) dB95,1
Impedance O75
Shield. resistance per 1 km O10
Shield. resistance per 1000 ft. O3,048
BPVo-EuroclassFca
