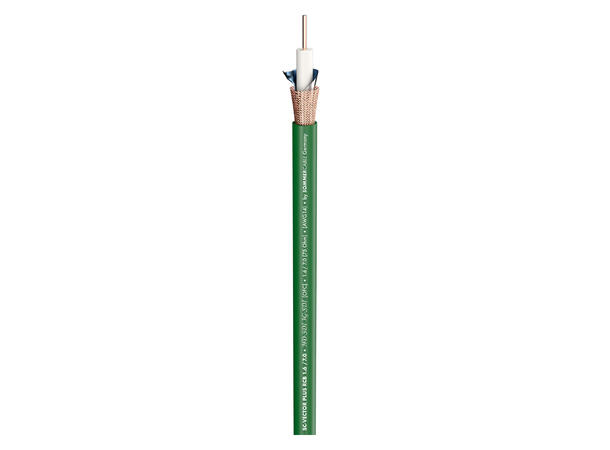

SOMMER Vector Plus RCB Videokabel 1.6L/7.0, 1 x 1,60, PVC Ø10,20 mm, grønn

SOMMER Vector Plus RCB Videokabel

1.6L/7.0, 1 x 1,60, PVC Ø10,20 mm, grønn

Varenr: 141727

Alt. varenr: 600-0234

61,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m
1000m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Simultaneous translators...

Advantages:

Long life due to non-aging jacket
Constant optimised electrical values owing to intelligent cable design
Gas injected skin-foam-skin insulation for optimal damping values and long distances

Application:

Digital HD-SDI and 3G-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
Professional media-technical permanent installation according to 3G standard

Specifications:

Article number	600-0234
Name	SC-Vector Plus RCB 1.6L/7.0
EAN	4049371001823
Properties	Analog
Properties	Digital 75 O
Properties	OFC oxygen free copper
Properties	SDI
Properties	HDTV
Properties	3G-SDI / UHD
Application area	ELA 100 V
Application area	Installation
Application area	Mobile outdoor / indoor
Application	video cable
Colour	green
Colour detailed	green

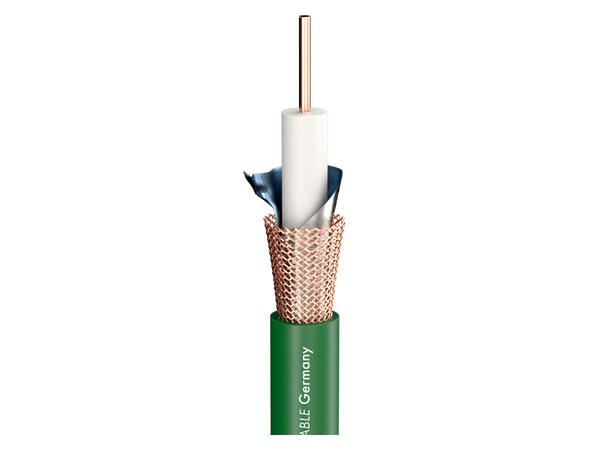

Construction	02YS(ST)CH1,6L/7,0
Jacket material	PVC
Jacket Ø mm	10,20
Number of Channels (video)	1
Inner conductor (video)	1
Inner conductor (video) mm²	2,01
Inner conductor Ø (video) mm	1,60
AWG (video)	14
Shielding	Copper braiding tin-plated + AL / PT foil
Shielding factor %	100
Copper strands (video)	1
Copper strand Ø (video) mm	1,60
Conductor insulation material	Gas Injected-PE
Conductor insulation Ø mm	7,00
Weight per 1 m g	101,84
Fire load per m kWh	0,73
Style variant	round
Packing	1000 m spool
Packing	100 m spool
Packing	500 m spool
Velocity factor	0,8
Temperature min. °C	-25
Temperature max. °C	30

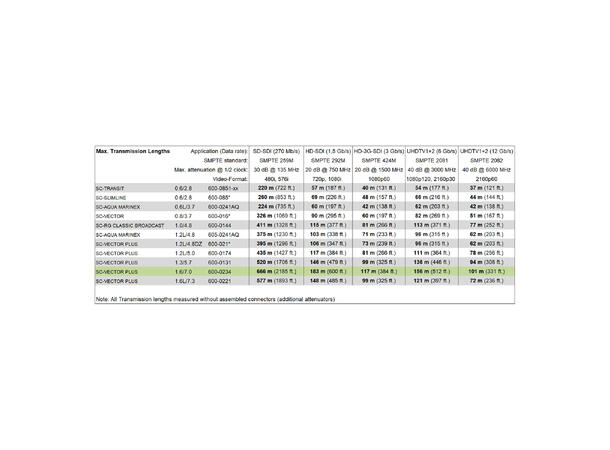

Max. Transmission length (3G-SDI) m	240
Max. Transmission length (6G-SDI) m	120
Width mm	10,2
Height mm	10,2
Capacity wire/electic screen at 1m (video) pF	53
Capacity wire/electic screen at 1 ft. (video) pF	16,1544

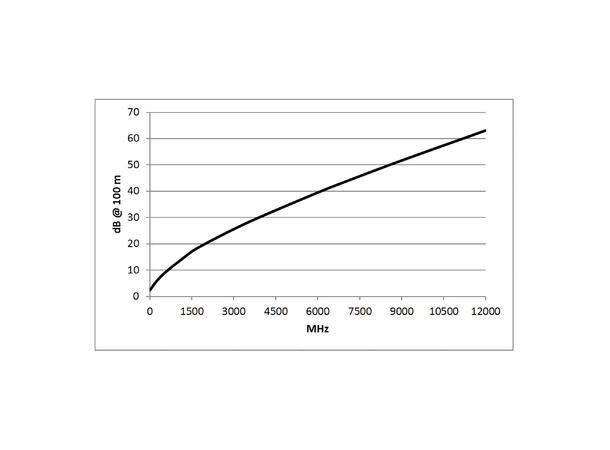

Damping at 5 MHz (100m & 20° C) dB	2,4
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB	0,7315
Damping at 200 MHz (100m & 20° C) dB	5,3
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	1,6154
Damping at 470 MHz (100m & 20° C) dB	8,4
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	2,5603
Damping at 862 MHz (100m & 20° C) dB	11,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	3,6271
Damping at 1000 MHz (100m & 20° C) dB	13
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	3,9624
Damping at 1485 MHz (100m & 20° C) dB	17
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	5,1816
Damping at 1750 MHz (100m & 20° C) dB	18,7
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	5,6998
Damping at 2150 MHz (100m & 20° C) dB	21
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	6,4008
Damping at 3000 MHz (100m & 20° C) dB	25,6
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	7,8029
Damping at 6000 MHz (100m & 20° C) dB	39,5
Damping at 9000 MHz (100m & 20° C) dB	51,7
Damping at 12000 MHz (100m & 20° C) dB	63,1
Impedance O	75
Shield. resistance per 1 km O	10
Shield. resistance per 1000 ft. O	3,048
BPVo-Euroclass	Fca
