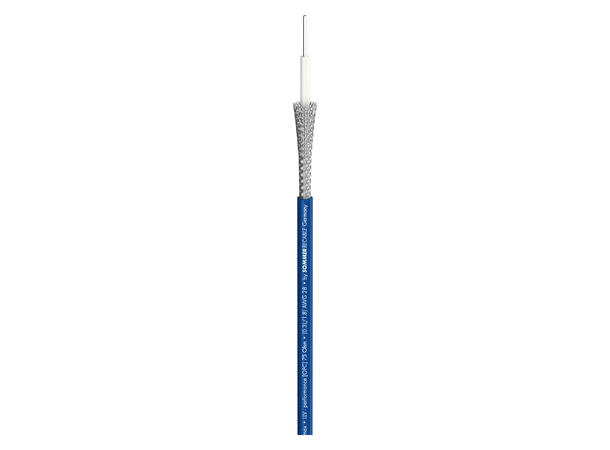

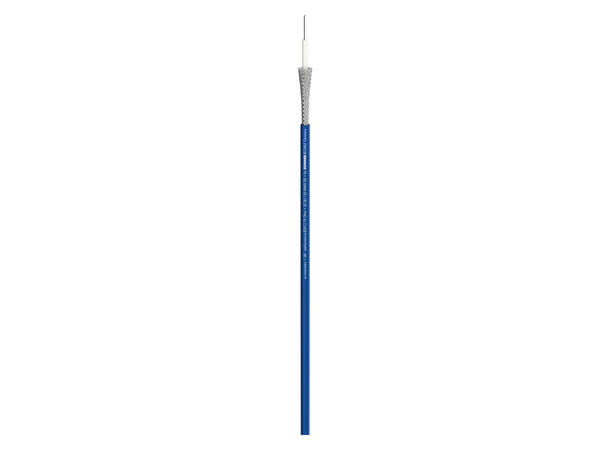

SOMMER Monomax Videokabel

1 x 0,32, Antistatic-PVC Ø 2,70 mm, blå

Varenr: 141733
Alt. varenr: 600-0252-01
19,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Hvit
Hvit
Sort
Sort
Blå
Blå
Rød
Rød
Grønn
Grønn

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Small but mighty...

because on the whole the SC-Monomax is basically a single lead like it can be found in the TRANSIT MINI FLEX multi-coax cable. It has the dense shielding (copper mesh screen 95 %) and the same flexible litz construction, making it the perfect patch cable (e.h. for control cabinet construction). It is equipped with traditional 75 O BNC0.3/1.8 BNC connectors. It is available in RGBHV colours (red, green, blue, white, and black). The maximum transmission length for this patch cable is approx. 30 – 50 metres, depending on the application.


Advantages:

  • Available in five colours
  • Excellent shielding due to tight copper mesh screen (95 %)
  • Very reliable and with closest tolerances on wave impedance (±3 %)
  • Compact with a small outer diameter
  • Low damping values despite miniature construction

Application:

  • Flexible video cable for control cabinet construction
  • Unbalanced interior wiring


Specifications:

Article number600-0252-01
NameSC-Monomax
EAN4049371001496
PropertiesAnalog
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
Application areaInstallation
Application areaStudio / Broadcast
Applicationvideo cable
Colourblue
Colour detailedblue
ConstructionLI2Y0,32mm(ST)CY
Jacket materialAntistatic-PVC
Jacket Ø mm2,70
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,08
Inner conductor Ø (video) mm0,32
AWG (video)28
ShieldingCopper braiding tin-plated
Shielding factor %95
Copper strands (video)7
Copper strand Ø (video) mm0,12
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,60
Weight per 1 m g11
Fire load per m kWh0,27
Style variantround
Packing100 m spool
Velocity factor0,8
Temperature min. °C-25
Temperature max. °C70
Width mm2,7
Height mm2,7
Capacity wire/electic screen at 1m (video) pF56
Capacity wire/electic screen at 1 ft. (video) pF17,0688

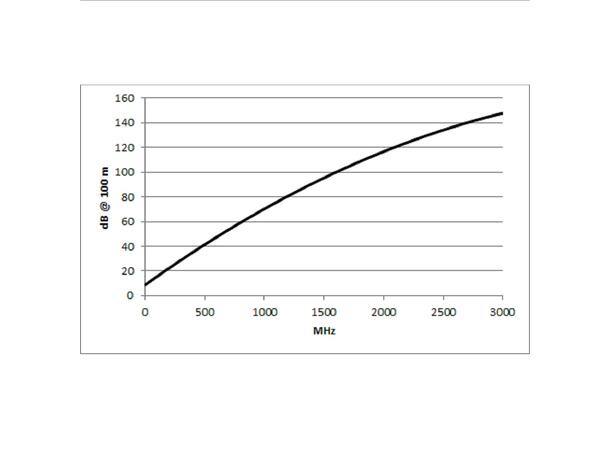

Damping at 5 MHz (100m & 20° C) dB4,3
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB1,3106
Damping at 50 MHz (100m & 20° C) dB15
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB4,572
Damping at 100 MHz (100m & 20° C) dB21,5
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB6,5532
Damping at 1485 MHz (100m & 20° C) dB94,5
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB28,8036
Damping at 3000 MHz (100m & 20° C) dB148
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB45,1104
Impedance O75
Return loss dB20
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
