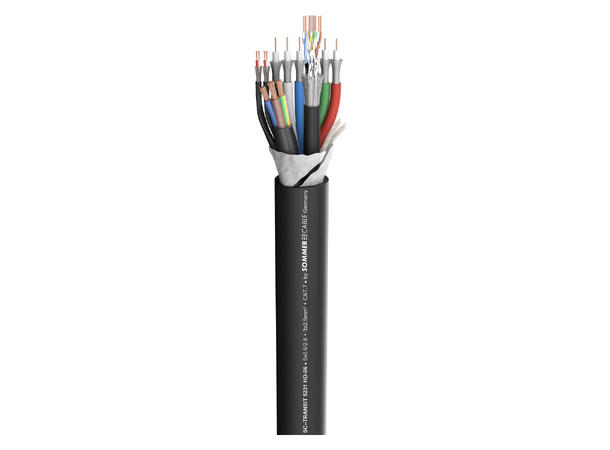

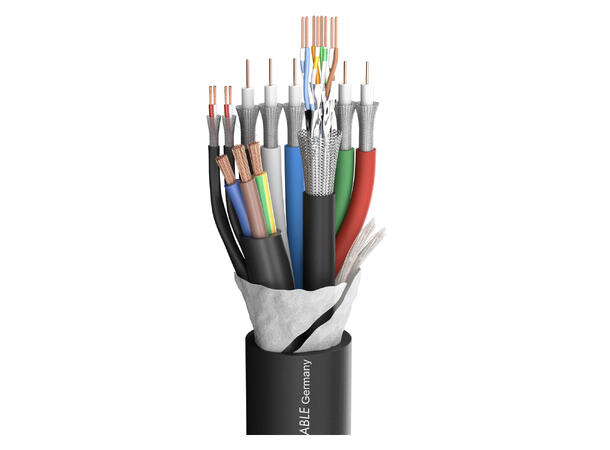

SOMMER Transit MC5231 HD-0.8 Videokabel

power/video/audio/CAT7.e, PVC, sort

Varenr: 141755
Alt. varenr: 600-0621-05
323,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

A real entertainer...

can mostly not only act, dance and sing well, but will often amaze with various extra talents, too. Our versatile, flexible live entertainer Transit MC5231 HD-0.8 offers 5 x 0,60 mm HD video lines for your eyes, two AES/EBU audio lines for your ears, 3 x 2,50 mm² for solid power and also a 10 GBit-CAT.7 line for the always up-to-date background information. He feels at home on all stages and in all arenas of the world and speaks all languages, be they digital or analogue – a real entertainer.


Advantages:

  • Dependable and very high-quality image & sound and network transmission
  • Audio lines AES/EBU or DMX capable
  • Small outer diameter, flexible and easy to reel

Application:

  • Permanent installation (theatres, sporting arenas, media and congress centres)
  • For audio & video transmission
  • For audio and video transmission, MADI live and studio applications


Specifications:

Article number600-0621-05
NameTransit MC5231 HD-0.8
EAN4049371193535
PropertiesDigital 75 O
PropertiesAnalog
PropertiesSDI
PropertiesDigital 110 O AES / EBU
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaInstallation
Applicationhybrid cable
Colourblack
Colour detailedblack

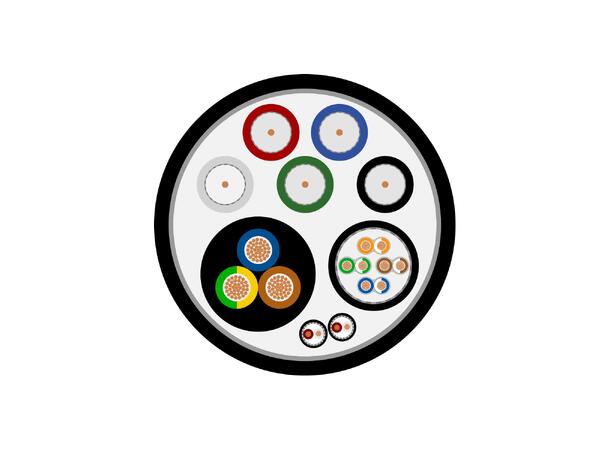

Construction5LI2YSCY0,60mm+2(2LI2Y0,14mm²)DY+(3LIY2,5mm²)Y+SFTP4x2xAWG24/1Y
Construction (power)(3LIY2,5mm²)Y
Construction (network)SFTP 4x2x0,53mm
Jacket materialPVC
Jacket Ø mm22,50
Number of Channels (audio)2
Number of Channels (video)1
Number of Channels (power)1
Number of Channels (network)1
Inner conductor (audio)2
Inner conductor (video)5
Inner conductor (power)3
Inner conductor (network)8
Inner conductor (audio) mm²0,15
Inner conductor (video) mm²0,28
Inner conductor (power) mm²2,50
Inner conductor (network) mm²0,22
Inner conductor Ø (audio) mm0,44
Inner conductor Ø (video) mm0,60
Inner conductor Ø (power) mm1,78
Inner conductor Ø (network) mm0,53
AWG (audio)26
AWG (video)23
AWG (power)13
AWG (network)24
Shielding (video)Copper braiding + AL / PT foil
Shielding (network)Copper braiding + AL / PT foil
Shielding factor %100
Copper strands (audio)19
Copper strand Ø (audio) mm0,10
Wire insulation material (video)Foam / Skin-PE
Conductor insulation Ø (video) mm2,80
Weight per 1 m g670
UV-resistantyes
Fire load per m kWh1,58
Style variantround
Packingbulk stock
CAT-TypeCAT.7
Temperature min. °C-20
Temperature max. °C75
Width mm24,8
Height mm24,8
Capac. cond./cond. per 1 m (audio) pF53
Capacity wire/wire at 1 ft. (audio) pF16,1544
Capacity wire/electic screen at 1m (video) pF55
Capacity wire/electic screen at 1 ft. (video) pF16,764

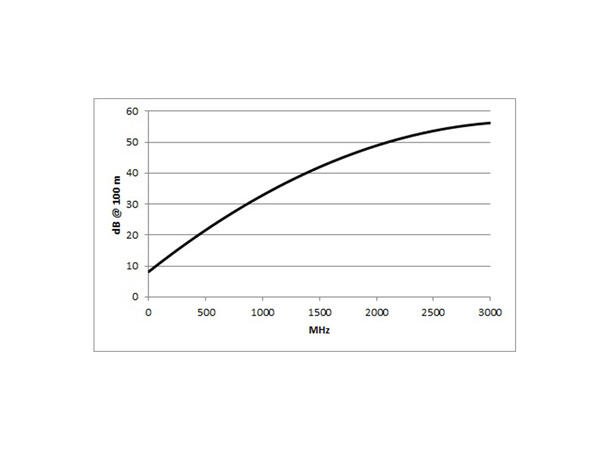

Damping at 5 MHz (100m & 20° C) dB8,5
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB2,5908
Damping at 50 MHz (100m & 20° C) dB9,6
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB2,9261
Damping at 100 MHz (100m & 20° C) dB11
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB3,3528
Damping at 200 MHz (100m & 20° C) dB13,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB4,2062
Damping at 470 MHz (100m & 20° C) dB20,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB6,3703
Damping at 862 MHz (100m & 20° C) dB29,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB9,1135
Damping at 1000 MHz (100m & 20° C) dB32,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB10,0279
Damping at 1485 MHz (100m & 20° C) dB41,6
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB12,6797
Damping at 1750 MHz (100m & 20° C) dB45,7
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB13,9294
Damping at 2150 MHz (100m & 20° C) dB50,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB15,3924
Damping at 3000 MHz (100m & 20° C) dB56,2
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB17,1298
Impedance O75
Surge impedance (audio) O100
BPVo-EuroclassFca
