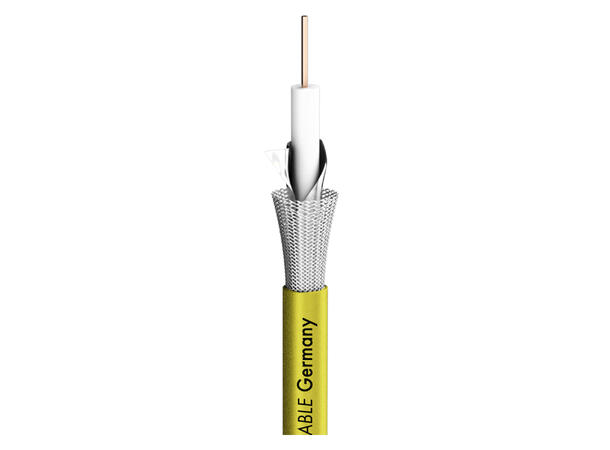

SOMMER Slimline Videokabel 1 x 0,60, FRNC Ø 4,20 mm, gul

SOMMER Slimline Videokabel

1 x 0,60, FRNC Ø 4,20 mm, gul

Varenr: 141771

Alt. varenr: 600-0857F

19,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Farge

Sort

Grønn

Gul

Oransje

Lilla

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m
1000m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Looking for the superstar...

among the video and sat cables? The SC-Slimline RCB meets all requirements put on high-quality HD-SDI/HDTV cables these days and, owing to the use of high-grade materials, promises a long service life. To achieve super low damping values, we have fitted the cable with a massive OFC (oxygen-free copper) wire, a gas-injected insulation and a dual screen (Cu mesh screen + AL/PT foil).

Advantages:

Long life due to non-aging jacket
Consistent, optimised electrical values due to the use of a massive
OFC wire
Gas-injected insulation for best damping values

Application:

HD-SDI-video transmission in the professional broadcasting/studio sector
OB van technology
Permanent installation, HF technology and antenna construction

Specifications:

Article number	600-0857F
Name	SC-Slimline
EAN	4049371051446
Properties	HDTV
Properties	Digital 75 O
Properties	Halogen-free / LSZH
Properties	OFC oxygen free copper
Properties	Analog
Properties	FRNC flame retardant
Properties	SDI
Application area	ELA 100 V
Application area	Installation
Application	video cable
Colour	yellow
Colour detailed	yellow
Construction	02YS(ST)CH0,6/2,8 HD-SDI
Jacket material	FRNC
Jacket Ø mm	4,20
Number of Channels (video)	1
Inner conductor (video)	1
Inner conductor (video) mm²	0,28
Inner conductor Ø (video) mm	0,60
AWG (video)	23
Shielding	Copper braiding tin-plated + AL / PT foil
Shielding factor %	100
Copper strands (video)	1
Copper strand Ø (video) mm	0,60
Conductor insulation material	Gas Injected-PE
Conductor insulation Ø mm	2,80
Weight per 1 m g	22
Fire load per m kWh	0,06
Style variant	round
Packing	100 m spool
Packing	500 m spool
Packing	1000 m spool
Velocity factor	0,82
Temperature min. °C	-30
Temperature max. °C	70
Max. transmission distance (SDI) m	120
Max. transmission distance (HD-SDI) m	100
Max. transmission distance (3G) m	30
Width mm	4,2
Height mm	4,2
Capacity wire/wire at 1m (video) pF	53
Capacity wire/wire at 1 ft. (video) pF	16,1544
Damping at 5 MHz (100m & 20° C) dB	11,9
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB	3,6271
Damping at 50 MHz (100m & 20° C) dB	12,9
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	3,9319
Damping at 100 MHz (100m & 20° C) dB	13,3
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB	4,0538
Damping at 200 MHz (100m & 20° C) dB	14,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	4,511
Damping at 470 MHz (100m & 20° C) dB	19,4
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	5,9131
Damping at 862 MHz (100m & 20° C) dB	26,8
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	8,1686
Damping at 1000 MHz (100m & 20° C) dB	29,7
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	9,0526
Damping at 1485 MHz (100m & 20° C) dB	40,7
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	12,4054
Damping at 1750 MHz (100m & 20° C) dB	47,6
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	14,5085
Damping at 2150 MHz (100m & 20° C) dB	58,7
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	17,8918
Damping at 3000 MHz (100m & 20° C) dB	85,9
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	26,1823
Impedance O	75
Shield. resistance per 1 km O	90
Shield. resistance per 1000 ft. O	27,432
BPVo-Euroclass	Fca
