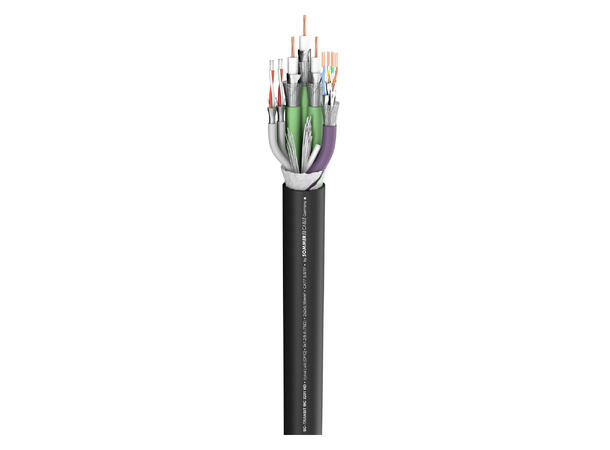

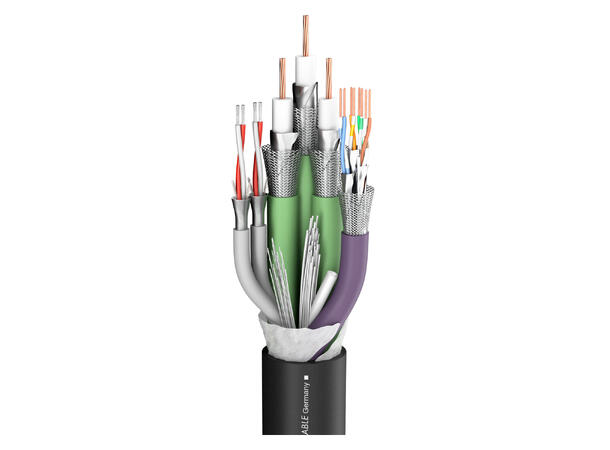

SOMMER Transit MC3201 HD-SDI Videokabel

video/audio/CAT.7, Soft-PVC, sort

Varenr: 141787
Alt. varenr: 600-2781
279,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

The allround long distance specialist...

Handles different jobs (analog, digital audio signals and picture) at the same time – and this with constant performance over long distances. Analog video signals can be transmitted over 1000 m (3,281 ft.), SDI signals over 500 m (1,640 ft.) and HD-SDI over 150 m (492 ft.) and more. Via the integrated 10 Gbit network cable you can send additional digital audio signals (ethersound etc.) with high performance. With this all-rounder you're well prepared for the latest transmission standards.


Advantages:

  • 10 Gbit capable network and HD-SDI compliant video transmission in one cable
  • Excellent shielding
  • Super low damping values for long distance transmissions

Application:

  • Digital HD-SDI long distance transmission including digital audio network and power supply
  • Ideal for broadcasting van applications, sporting events and big events
  • Installation (Broadcast, studio, conference rooms, building technology)


Specifications:

Article number600-2781
NameTransit MC 3201 HD-SDI
EAN4049371358231
PropertiesOFC oxygen free copper
PropertiesDigital 75 O
PropertiesSDI
PropertiesAnalog
Application areaMobile outdoor / indoor
Application areaStudio / Broadcast
Application areaInstallation
Applicationhybrid cable
Colourblack
Colour detailedblack

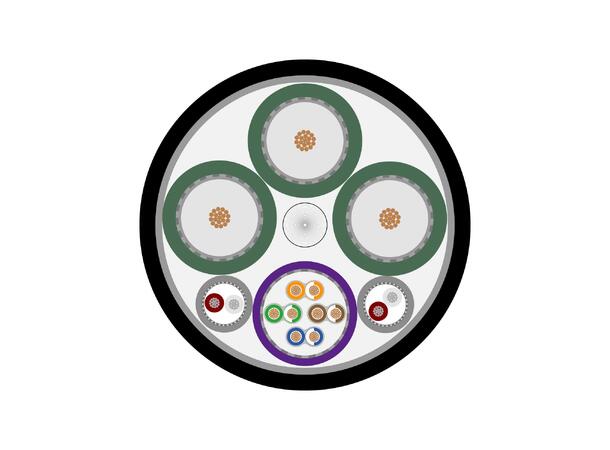

Construction3LI2YSCY0,1,2mm+2(2LI2Y0,15mm²)DY+SFTP4x2xAWG26/7Y
Construction (audio)2 x 2 x 0,15mm²
Construction (video)3 x 1,2/5,0
Construction (network)SFTP 4x2x0,14mm²
Jacket materialSoft-PVC
Jacket material (audio)PVC
Jacket material (video)PVC
Jacket material (power)PVC
Jacket material (network)PVC
Jacket Ø mm20,50
Jacket Ø (audio) mm3,00
Jacket Ø (video) mm6,95
Jacket Ø (network) mm6,40
Number of Channels (audio)2
Number of Channels (video)1
Number of Channels (network)1
Inner conductor (audio)2
Inner conductor (video)3
Inner conductor (network)8
Inner conductor (audio) mm²0,15
Inner conductor (video) mm²1,13
Inner conductor (network) mm²0,14
Inner conductor Ø (audio) mm0,44
Inner conductor Ø (video) mm1,20
Inner conductor Ø (network) mm0,42
AWG (audio)25
AWG (video)18
AWG (network)26
Shielding (audio)Copper spiral
Shielding (video)Copper braiding + AL / PT foil
Shielding (network)Copper braiding + AL / PT-foil per wire pair (CAT)
Shielding factor %100
Copper strands (audio)19
Copper strands (network)7
Copper strand Ø (audio) mm0,10
Copper strand Ø (network) mm0,16
Wire insulation material (video)Foam / Skin-PE
Conductor insulation Ø (video) mm5,00
Weight per 1 m g580
UV-resistantyes
Fire load per m kWh3,57
Style variantround
Packingbulk stock
CAT-TypeCAT.7
Velocity factor0,77
Temperature min. °C-20
Temperature max. °C75
Width mm20,5
Height mm20,5
Capacity wire/wire at 1m (network) pF43
Capacity wire/wire at 1 ft. (network) pF13,1064
Capacity wire/electic screen at 1m (video) pF52
Capacity wire/electic screen at 1 ft. (video) pF15,8496
Damping at 50 MHz (100m & 20° C) dB16,9
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB5,1511
Damping at 100 MHz (100m & 20° C) dB21,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB6,4618
Damping at 470 MHz (100m & 20° C) dB50,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB15,3924
Damping at 862 MHz (100m & 20° C) dB77
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB23,4696
Damping at 1000 MHz (100m & 20° C) dB85,4
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB26,0299
Damping at 1485 MHz (100m & 20° C) dB109,6
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB33,4061
Damping at 1750 MHz (100m & 20° C) dB120,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB36,637
Damping at 2150 MHz (100m & 20° C) dB131,8
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB40,1726
Damping at 3000 MHz (100m & 20° C) dB140,5
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB42,8244
Impedance (video) O75
Impedance (network) O100
Insulation resist. per 1 km (network) GO5
Insulation resist. per 1000 feet (network) GO1,524
Conductor resistance per 1 km (network) O143
Conductor resistance per 1000 ft. (network) O43,5864
Shield. resistance per 1 km O12
Shield. resistance per 1000 ft. O3,6576
Max. delay (skew)20 ns @ 100 MHz/100 m
BPVo-EuroclassFca
