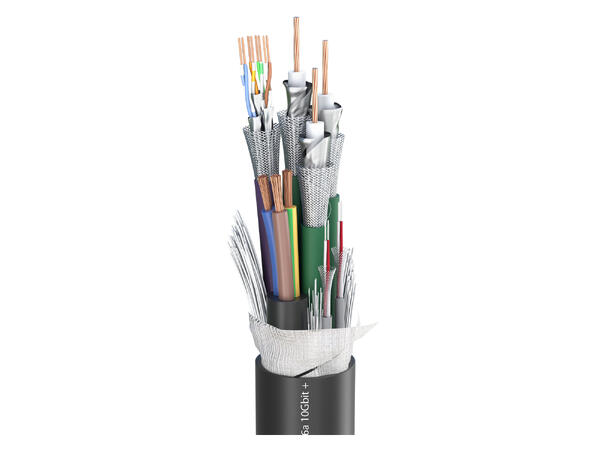

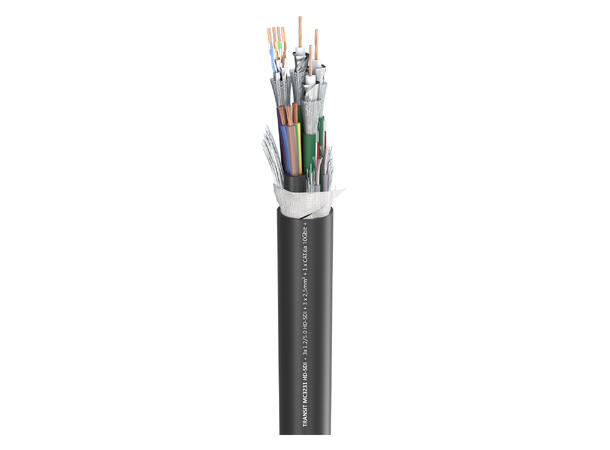

SOMMER Transit MC3231 HD-SDI Videokabel

power/video/audio/CAT.7, Soft-PVC, sort

Varenr: 141788
Alt. varenr: 600-2791
419,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
40 på lager i Oslo
BeskrivelseLenker & dokumenter
Beskrivelse

The allround long distance specialist...

Handles the different disciplines of sound, video and data transmission simultaneously – and this with a constant performance over long distances. Analog video signals can be transmitted over 1000 m (3,281 ft.), SDI signals over 500 m (1,640 ft.) and HD-SDI over 150 m (492 ft.) and more. The integrated 10Gbit network cable allows you to send additional digital audio signals (Ethersound etc.) with high performance. For supplying your periphery we have also included a 3 x 2,50 mm² load element. With this allrounder you are well equipped for the latest transmission standards.


Advantages:

  • 10 Gbit capable network and HD-SDI compliant video transmission in one cable
  • Excellent shielding
  • Super low damping values for long distance transmissions

Application:

  • Digital HD-SDI long distance transmission including digital audio network and power supply
  • Ideal for broadcasting van applications, sporting events and big events
  • Installation (Broadcast, studio, conference rooms, building technology)


Specifications:

Article number600-2791
NameTransit MC 3231 HD-SDI
EAN4049371003988
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
PropertiesAnalog
PropertiesSDI
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Applicationhybrid cable
Colourblack
Colour detailedblack

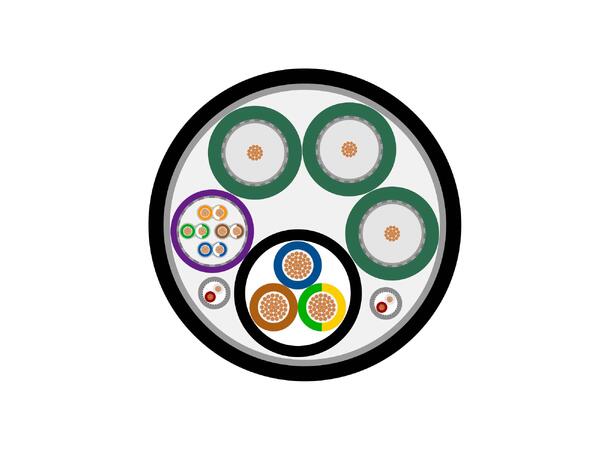

Construction3LI2YSCY0,1,2mm+2(2LI2Y0,15mm²)DY+(3LIY2,5mm²)Y+SFTP4x2xAWG26/7Y
Construction (audio)2 x 2 x 0,15mm²
Construction (video)3 x 1,2/5,0
Construction (power)(3LIY2,5mm²)Y
Construction (network)SFTP 4x2x0,14mm²
Jacket materialSoft-PVC
Jacket material (audio)PVC
Jacket material (video)PVC
Jacket material (power)PVC
Jacket material (network)PVC
Jacket Ø mm24,00
Jacket Ø (audio) mm3,00
Jacket Ø (video) mm6,95
Jacket Ø (power) mm10,20
Jacket Ø (network) mm6,40
Number of Channels (audio)2
Number of Channels (video)3
Number of Channels (power)1
Number of Channels (network)1
Inner conductor (audio)2
Inner conductor (video)3
Inner conductor (power)3
Inner conductor (network)8
Inner conductor (audio) mm²0,15
Inner conductor (video) mm²1,13
Inner conductor (power) mm²2,50
Inner conductor (network) mm²0,14
Inner conductor Ø (audio) mm0,44
Inner conductor Ø (video) mm1,20
Inner conductor Ø (power) mm1,78
Inner conductor Ø (network) mm0,42
AWG (audio)25
AWG (video)18
AWG (power)13
AWG (network)26
Shielding (audio)Copper spiral
Shielding (video)Copper braiding + AL / PT foil
Shielding (network)Copper braiding + AL / PT-foil per wire pair (CAT)
Shielding factor %100
Copper strands (audio)19
Copper strands (network)7
Copper strand Ø (audio) mm0,10
Copper strand Ø (network) mm0,16
Wire insulation material (video)Foam / Skin-PE
Conductor insulation Ø (video) mm5,00
Weight per 1 m g580
UV-resistantyes
Fire load per m kWh3,57
Style variantround
Packingbulk stock
CAT-TypeCAT.7
Velocity factor0,77
Temperature min. °C-20
Temperature max. °C75
Width mm24
Height mm24
Capacity wire/wire at 1m (network) pF43
Capacity wire/wire at 1 ft. (network) pF13,1064
Capacity wire/electic screen at 1m (video) pF52
Capacity wire/electic screen at 1 ft. (video) pF15,8496

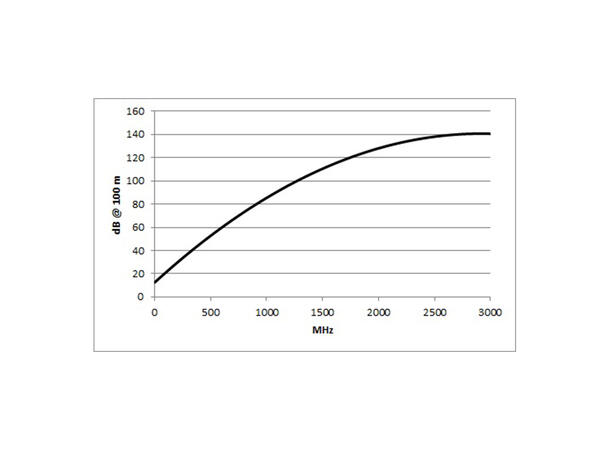

Damping at 50 MHz (100m & 20° C) dB16,9
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB5,1511
Damping at 100 MHz (100m & 20° C) dB21,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB6,4618
Damping at 470 MHz (100m & 20° C) dB50,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB15,3924
Damping at 862 MHz (100m & 20° C) dB77
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB23,4696
Damping at 1000 MHz (100m & 20° C) dB85,4
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB26,0299
Damping at 1485 MHz (100m & 20° C) dB109,6
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB33,4061
Damping at 1750 MHz (100m & 20° C) dB120,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB36,637
Damping at 2150 MHz (100m & 20° C) dB131,8
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB40,1726
Damping at 3000 MHz (100m & 20° C) dB140,5
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB42,8244
Impedance (video) O75
Impedance (network) O100
Insulation resist. per 1 km (network) GO5
Insulation resist. per 1000 feet (network) GO1,524
Conductor resistance per 1 km (network) O143
Conductor resistance per 1000 ft. (network) O43,5864
Shield. resistance per 1 km O12
Shield. resistance per 1000 ft. O3,6576
Max. delay (skew)20 ns @ 100 MHz/100 m
BPVo-EuroclassFca
