SOMMER Transit HS HDMI/Ether. Videokabel 1 x 0,50, PVC Ø 9,60 mm, sort

SOMMER Transit HS HDMI/Ether. Videokabel

1 x 0,50, PVC Ø 9,60 mm, sort

Varenr: 141799

Alt. varenr: 612-0251

184,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

200 på lager i Oslo

Beskrivelse

One for everything...

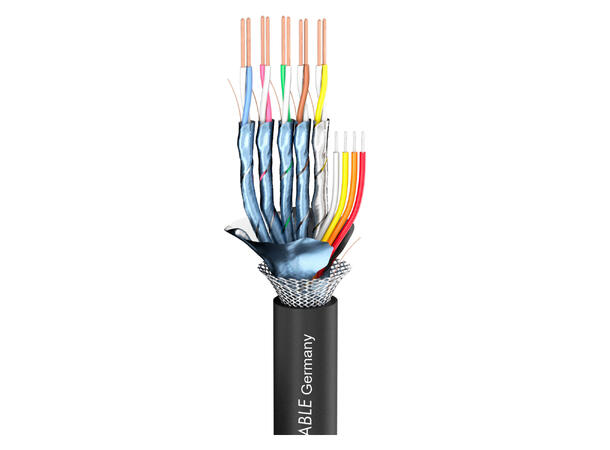

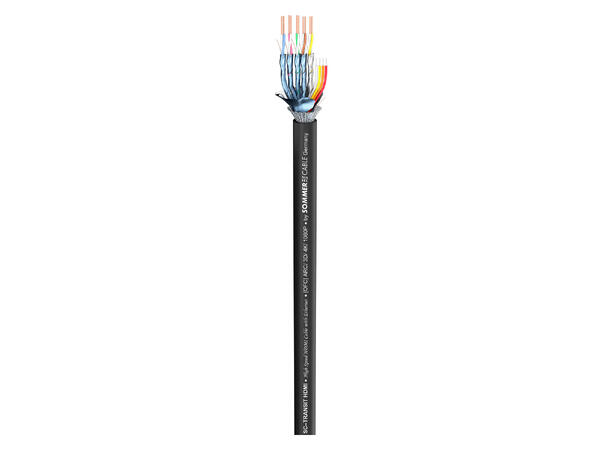

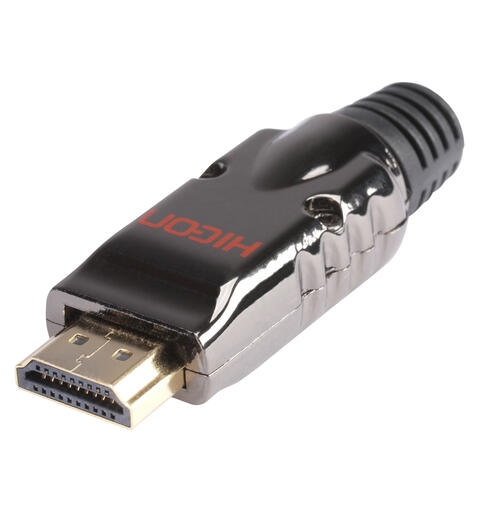

The Transit high speed HDMI with Ethernet is definitely a top-quality HDMI cable for the transmission of digital video and sound data, especially for the professional media engineering and entertainment electronics sector. Combined with our HICON HDMI connector HI-HD-M, it can transmit (given a professional processing) the 4 times Full-HD resolution (3840 x 2160 pixels @ 30 Hz; 4096 x 2160 pixels @ 40 Hz) plus ethernet and audio return channel signals. It is suitable for “3D videos“ and 4K transmissions and is downward compatible with all previous HDMI versions. Depending on the hardware or the interface quality, even greater transmission distances of up to 25 m (82 ft.) are achievable due to the large cross-section. The cable has a sloid triple shielding against external interference.

Advantages:

1080p image resolution (Full HD), 2K, 4K
Large cross-section for increased transmission distances
Solid triple shielding against external interference
Current standard, downward compatible with previous standards

Application:

Digital transmission of audio and video data using the latest HDMI standard
Professional media technology and home entertainment
Laying in cable conduits

Specifications:

Article number	612-0251
Name	Transit high speed HDMI with Ethernet
EAN	4049371003568
Properties	HDTV
Properties	Digital 110 O
Properties	OFC oxygen free copper
Application area	Installation
Application area	Studio / Broadcast
Application	HDMI-cable
Colour	black
Colour detailed	black

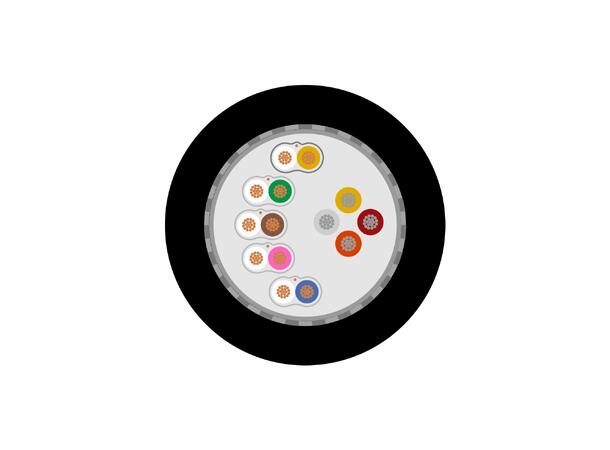

Construction	(5(2LI2YS0,50mm))+(1(2LI2Y0,14mm²))+(LIY2x0,14mm²)(ST)CY
Jacket material	PVC
Jacket Ø mm	9,60
Number of Channels (video)	1
Inner conductor (video)	10
Inner conductor (network)	4
Inner conductor (network) mm²	0,14
Inner conductor Ø (video) mm	0,50
AWG (video)	24
Shielding	cross braiding tin-plated + AL/PT-foil + drain wire
Shielding factor %	100
Copper strand Ø (video) mm	0,50
Conductor insulation material	Foam / Skin-PE / PE
Conductor insulation Ø mm	1,40
Weight per 1 m g	107
UV-resistant	yes
Style variant	round
Packing	bulk stock
Velocity factor	0,73
Temperature min. °C	0
Temperature max. °C	80
Width mm	9,6
Height mm	9,6
Capacity wire/wire at 1m (video) pF	90
Capacity wire/wire at 1 ft. (video) pF	27,432

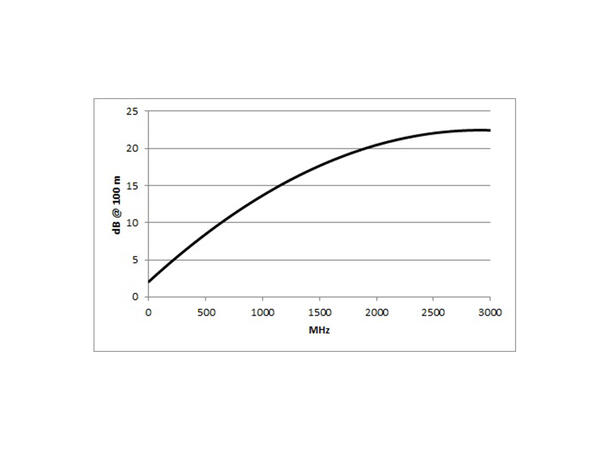

Damping at 50 MHz (100m & 20° C) dB	2,8
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	0,8534
Damping at 100 MHz (100m & 20° C) dB	3,9
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB	1,1887
Damping at 200 MHz (100m & 20° C) dB	5,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	1,7983
Damping at 470 MHz (100m & 20° C) dB	8,1
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	2,4689
Damping at 862 MHz (100m & 20° C) dB	12,3
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	3,749
Damping at 1000 MHz (100m & 20° C) dB	13,7
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	4,1758
Impedance O	100
Insulation resist. per 1 km GO	10
Insulation resist. per 1000 feet GO	3,048
Insulation resist. per 1 km (video) GO	10
Insulation resist. per 1000 feet (video) GO	3,048
Conductor resistance per 1 km O	90
Conductor resistance per 1000 ft. O	27,432
BPVo-Euroclass	Fca
