The compact 'all in one' solution
in a round jacket for the ambitious guitarist and keyboard player . The SC-TRICONE 241P is a highly flexible, professional hybrid cable for the complete wiring of amps, MIDI components, effects boards, synthesizers, DJ equipment and many other areas . Also perfectly suitable for the 4-cable method .

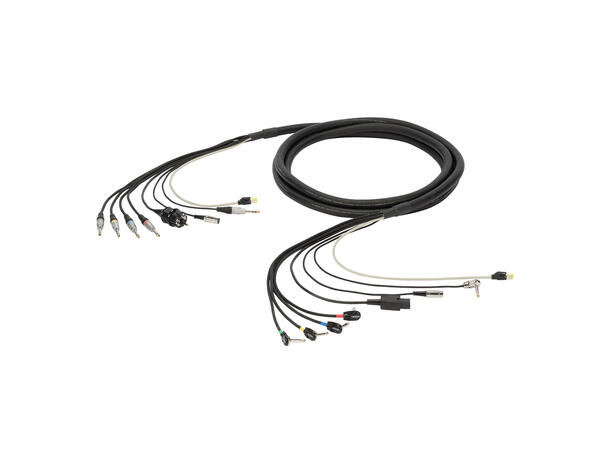

Construction: 4 x instrument cables (coaxial), 2 x AF-cable (balanced), 1 x CAT .5, 1 x power 3 x 0 .75 mm² / AWG18 .
TheSC-TRICONE 241P is equipped with professional HICON jack and network connectors plus 5-pin REAN MIDI connectors and Schuko/IEC mains connectors . The splice length is 60 cm / 2 .0 ft . on both sides .
Attention !!!
The German safety plug we use (type EF 7/7) is compatible with the power outlets in France and Belgium. / B
Configuration:
1 x IEC, 3-pole , plastic-, screw-type-female connector, nickel plated contact(s), straight, max. 1,5 mm², black (KAGE-FC230/10-SW)
4 x HICON jack (6,3mm) 2-pole metal-Soldering-male connector, nickel plated with Goldtip pin, angled/Pancake, black (HI-J63MA05)
1 x REAN Midi, 5-pol , metal-, Soldering-male connector, silver plated contact(s), straight, silver-grey (NYS322)
1 x HICON jack (6,3mm) 3-pole metal-Soldering-male connector, nickel plated with Goldtip pin, angled, black (HI-J63SA05)
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
1 x Mennekes SCHUKO, 2-pole , plastic-, screw-type-male connector, nickel plated contact(s), straight, max. 2,5 mm², black (SCHU-MC230/16PSW)
4 x HI-J63M-D
1 x REAN Midi, 5-pol , metal-, Soldering-male connector, silver plated contact(s), straight, silver-grey (NYS322)
1 x HI-J63S-D
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
Specifications:
| Length ft | 19,68 |
|---|
| Article number | GMGD-241P-0600 |
|---|
| EAN | 4049371224383 |
|---|
| Length m | 6 |
|---|
| Article number | GMGD-241P |
|---|
| Name | SC-TRICONE 241P |
|---|
| Brand | Sommer cable |
|---|
| Application | Instrument Cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Connector-Brand | HICON |
|---|
| Type | jack |
|---|
| Type | RJ45 |
|---|
| Type | MIDI |
|---|
| Type | Schuko |
|---|
| Type (detailed) | jack male 6,3 mm stereo |
|---|
| Type (detailed) | IEC cable socket |
|---|
| Type (detailed) | jack male 6,3 mm mono |
|---|
| Type (detailed) | Schuko connector male |
|---|
| Type (detailed) | NYS 322 |
|---|
| Type (detailed) | RJ45C6A male |
|---|
