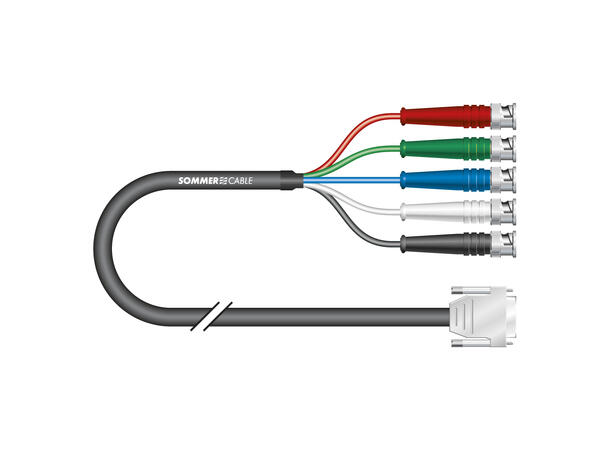

SOMMER CABLE offers a series of premade 75 O video multicores for different applications. With the mini-coaxial Transit Mini Flex cable (black cable colour) we supply a flexible type for patch applications that is suitable for an error-free transmission over distances of approx. 30 m. The splice length is ca. 0.20 m. We use HICON high-quality BNC connectors.
Configuration:
0,75 m video cable Transit MINI Flex; 1 x 0,32; Antistatic-PVC Ø 9,60 mm; black (600-0251-05)
1 x SUB-D/HD (VGA), 15-pole , metal-, Soldering-male connector, straight, silver-grey (SUBD15HDCML)
1 x SUB-D/EMC full metal shell, metal-, straight, silver-grey (SUBD0915GM)
5 x HICON BNC crimp-male connector 0.3/1.8, straight, nickel coloured (BNC0.3/1.8)
1 x Cardboard packaging for blister hooks, Design Sommer cable
Specifications:
| Length ft | 2,46 |
|---|
| Article number | ML3C-05-0075 |
|---|
| EAN | 4049371039871 |
|---|
| Length m | 0,75 |
|---|
| Article number | ML3C-05 |
|---|
| Name | Transit Mini Flex |
|---|
| Brand | Sommer cable |
|---|
| Application | monitor cable |
|---|
| Inner conductor | 5 |
|---|
| Inner conductor mm² | 0,08 |
|---|
| Connector-Brand | HICON |
|---|
| Type | HD-SUB-D |
|---|
| Type | BNC |
|---|
| Type (detailed) | BNC male 75 O |
|---|
| Type (detailed) | HD-SUB-D 15-pole male |
|---|
