The robust LAN connection for mobile applications. For the cable we use the PUR version of our SC-Mercator CAT.7 PUR cable. The HIROSE RJ45 connectors are protected by the HICON RJ45 protective housing in XLR design which matches D-flange RJ45 panel-mount sockets from NEUTRIK (CAT.5e) and HICON.

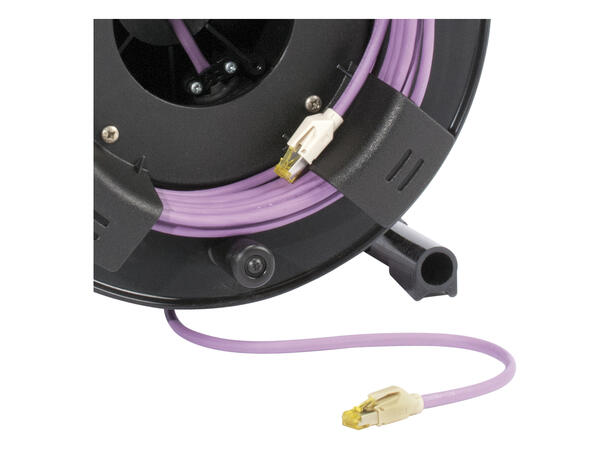

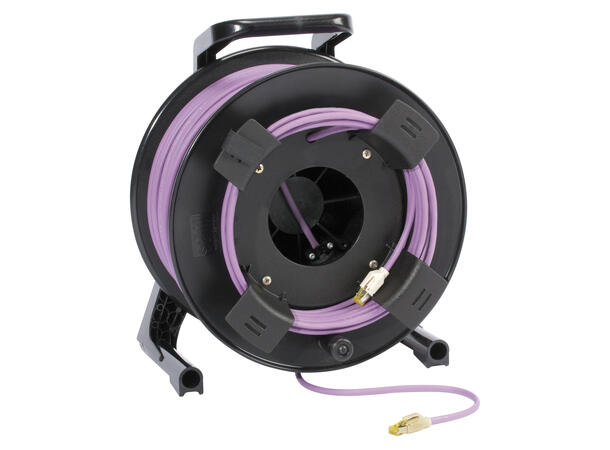

We deliver a lightweight and very robust cable reel GT310 from SCHILL.
Miscellaneous:
- Configuration 1:1
- For Ethersound Applications > 100m and for Ethernet applications > 85m we recommend the CAT.7 PUR XL.
Configuration:
70,00 m SC-Mercator CAT.7 PUR; PUR; purple, Ø 6,50 mm (581-0078)
1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
1 x SCHILL Winding attachment, for cable splice for GT310, HT and SK-Modelle (KOMB.RM)
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
Specifications:
| Length ft | 229,66 |
|---|
| Article number | P7HSG7000-VI |
|---|
| EAN | 4049371122108 |
|---|
| Colour | purple |
|---|
| Length m | 70 |
|---|
| Article number | P7HSG |
|---|
| Name | SC-Mercator CAT.7 PUR |
|---|
| Brand | Sommer cable |
|---|
| Application | network cable |
|---|
| Inner conductor | 8 |
|---|
| Inner conductor mm² | 0,14 |
|---|
| Connector-Brand | HIROSE |
|---|
| Additional function | on cable spool |
|---|
| Type | RJ45 |
|---|
| Type (detailed) | RJ45 male |
|---|
