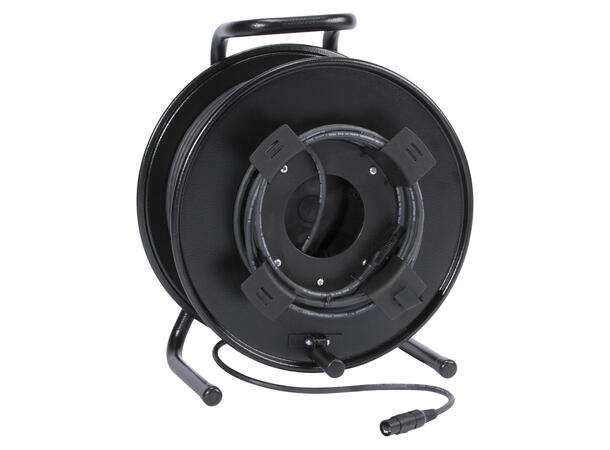

The robust LAN connection for mobile applications. For the cable we use the PUR version of our SC-MERCATOR CAT.7 cable. The HIROSE RJ45 connectors are protected by the HICON RJ45 protective housing in XLR design which matches D-flange RJ45 panel-mount sockets from NEUTRIK (CAT.5e) and HICON. We deliver a light and tough cable reel, HT380 from SCHILL.
Miscellaneous:
Configuration:
90,00 m SC-Mercator CAT.7 PUR XL; PUR; black, Ø 8,50 mm (581-0251)
1 x SCHILL Kabeltrommel, HT380-SW, core: 178 mm, thread width: 142 mm, metal (HT380-SW)
1 x RJ45 CAT.6a, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, silver-grey (RJ45C6XL)
1 x HICON Connector housing XLR format for RJ45C6XL/SC-Mercator CAT.7 PUR XL, black (HI-C6XL-HD)
1 x SCHILL Winding attachment, for cable splice for GT310, HT and SK-Modelle (KOMB.RM)
1 x +FEDERKLAMMER16
1 x RJ45 CAT.6a, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, silver-grey (RJ45C6XL)
1 x HICON Connector housing XLR format for RJ45C6XL/SC-Mercator CAT.7 PUR XL, black (HI-C6XL-HD)
Specifications:
| Article number | X7B5H9000-SW-SW |
|---|
| Name | SC-Mercator CAT.7 PUR XL |
|---|
| EAN | 4049371212182 |
|---|
| Brand | Sommer cable |
|---|
| Application | network cable |
|---|
| Colour | black |
|---|
| Inner conductor | 8 |
|---|
| Inner conductor mm² | 0,26 |
|---|
| Connector-Brand | HIROSE |
|---|
| Connector-Brand | HICON |
|---|
| Additional function | on cable spool |
|---|
| Type | RJ45 |
|---|
| Type (detailed) | RJ45C6XL with HI-C6XL-HD |
|---|
| Length m | 90 |
|---|
