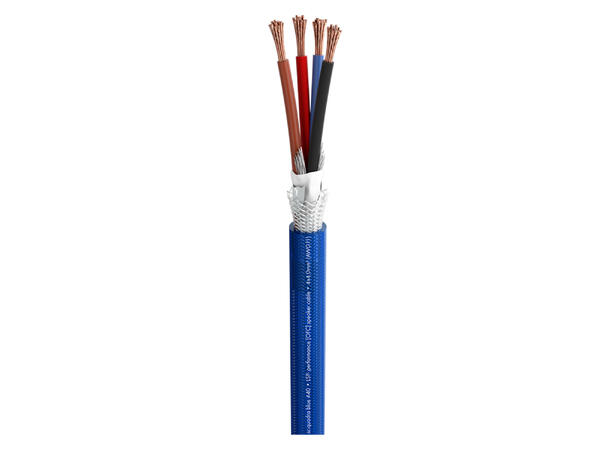

SOMMER 485-0052-440 Høyttalerkabel Blå. 4 x 4mm2 SOMMER 485-0052-440 Høyttalerkabel Blå. 4 x 4mm2

SOMMER 485-0052-440 Høyttalerkabel

Blå. 4 x 4mm2

Varenr: 142591
Alt. varenr: 485-0052-440
620,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ledere
2
2
4
4

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
50m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

A light at the end of the tunnel…

will appear in front of your eyes when you connect the new SC-QUADRA BLUE to your reference-HiFi-system. Harmony not only in design, but also in sound is what the SC-QUARDEA BLUE will offer to you: absolutely linear cable tempting you to play experiment, as a bi-amping as well as bi-wiring connection or just as a simple input cable.
We have straded the copper litz to utilize the advantages of the solid copper wires. This results in outstanding conductivity and excellent damping values, which are especially important for longer lengths. Even for excessive lengths the SC-QUADRA BLUE works with almost no loss.

Allow yourself and your HiFi-system one of the best and most beautiful speaker cables we were able to develop over the last ten years.


Advantages:

  • Extremely fast and linear transmission, even with excessive lengths
  • Very easy to handle
  • Numerous connecting options (bi-amping, bi-wiring, twinaxial cable)
  • Excellent shielding against interference by AL / PT-foil and CU-cross braided shield construction
  • Use of ultra-grade copper quality with conductor smoothing (OFC Class6N, 99.9999%)

Application:

  • High quality HiFi-speaker multicore for higher demands
  • Stereo or bi-wiring connection with one cable


Specifications:

Article number485-0052-440
NameSC-Quadra Blue
EAN4049371003094
PropertiesAnalog
PropertiesOFC oxygen free copper
Application areaInstallation
Application areaStudio / Broadcast
ApplicationSpeaker Cable HighEnd, screened
Colourblue
Colour detailedblue
Construction(4LIY4,0mm²)(ST)CY
Construction (audio)(4LIY4,0mm²)CY
Jacket materialPVC
Jacket Ø mm15,50
Number of Channels (audio)1
Inner conductor (audio)4
Inner conductor (audio) mm²4,00
AWG (audio)11
ShieldingCopper braiding
Shielding (audio)Copper braiding tin-plated + AL / PT foil
Shielding factor %100
Copper strands (audio)504
Copper strand Ø (audio) mm0,10
Conductor insulation materialSkin-PE gas-injected
Conductor insulation Ø mm4,10
Weight per 1 m g340
Fire load per m kWh0,55
Style variantround
Packing50m spool
Packingbulk stock
Temperature min. °C-20
Temperature max. °C70
Width mm15,5
Height mm15,5
Capac. cond./cond. per 1 m (audio) pF65
Capacity wire/wire at 1 ft. (audio) pF19,812
Insulation resist. per 1 km GO0,005
Insulation resist. per 1000 feet GO0,0015
Insulation resist. per 1 km (audio) GO0,005
Insulation resist. per 1000 feet (audio) GO0,0015
Conductor resistance per 1 km O4,5
Conductor resistance per 1000 ft. O1,3716
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
