SOMMER 800-0104 Albedo Hi-Fi kabel

Grønn. Balansert

Varenr: 142594

Alt. varenr: 800-0104

143,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Article number	800-0104
Name	SC-Albedo MKII
EAN	4049371003223
Properties	OFC oxygen free copper
Properties	Analog
Application area	Studio / Broadcast
Application area	Installation
Application	NF-Phono cable, HighEnd
Colour	green
Colour detailed	green
Signal transmission	symmetrical

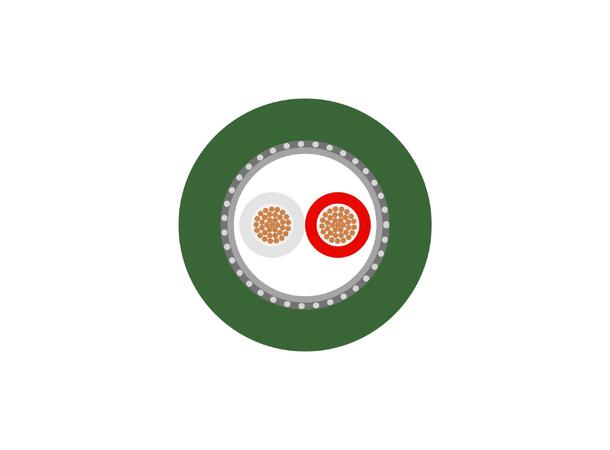

Construction	(2LI2Y0,20mm²)(ST)DY
Jacket material	PVC
Jacket Ø mm	5,90
Number of Channels (audio)	1
Inner conductor (audio)	2
Inner conductor (audio) mm²	0,20
AWG (audio)	24
Shielding	Copper spiral sleeve + AL / PT foil
Shielding factor %	100
Copper strands (audio)	102
Copper strand Ø (audio) mm	0,05
Conductor insulation material	PP
Weight per 1 m g	32
Fire load per m kWh	0,13
Style variant	round
Packing	bulk stock
Temperature min. °C	-30
Temperature max. °C	70
Width mm	5,9
Height mm	5,9
Capac. cond./cond. per 1 m (audio) pF	65
Capacity wire/wire at 1 ft. (audio) pF	19,812
Capac. cond./shield. per 1 m (audio) pF	110
Capacity wire/electic screen at 1 ft. (audio) pF	33,528
Insulation resist. per 1 km GO	1
Insulation resist. per 1000 feet GO	0,3048
Insulation resist. per 1 km (audio) GO	1
Insulation resist. per 1000 feet (audio) GO	0,3048
Conductor resistance per 1 km O	148
Conductor resistance per 1000 ft. O	45,1104
Shield. resistance per 1 km O	30
Shield. resistance per 1000 ft. O	9,144
BPVo-Euroclass	Fca
