HDMI (High Definition Multimedia Interface) is an all-digital interface that was developed by the consumer electronics branch in cooperation with the motion picture industry. HDMI transmits digital video and multi-channel audio data loss-free and bi-directional without data compression via a 19-pole compact connector with a max. bandwidth of 18,0 Gbit/s (HDMI® 2.0) or 10.22 Gbit/s (HDMI®1.4) max. resolution UHD/4K@60fps). A audio return channel (ARC) as well as the ethernet function are integrated. A universal remote control of all devices connected via HDMI is possible with the built-in AV link protocol.
Miscellaneous:
Configuration:

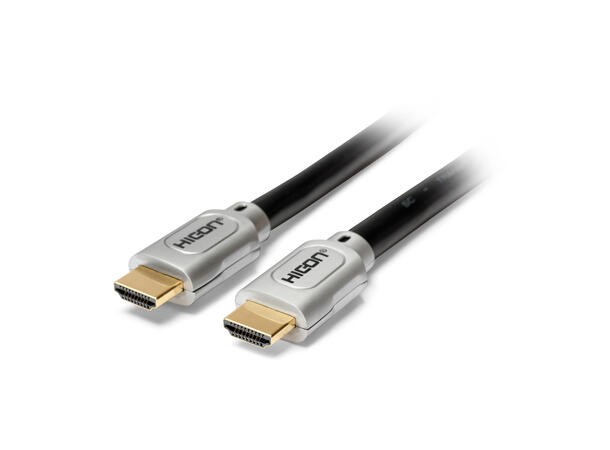

11,00 m HDMI-cable Transit high speed HDMI with Ethernet; 1 x 0,50; PVC Ø 9,60 mm; black (612-0251)
1 x HICON HDMI, 19-pol , metal-, IDC-female connector, gold plated contact(s), straight, silver-grey (HI-HD-MSK)
1 x HICON HDMI, 19-pol , metal-, IDC-female connector, gold plated contact(s), straight, silver-grey (HI-HD-MSK)
Specifications:
| Article number | HQHD-1100 |
|---|
| EAN | 4049371104128 |
|---|
| Length m | 11 |
|---|
| Article number | HQHD |
|---|
| Name | HDMI® HighSpeed-Cable with Ethernet & ARC, 4K, HQ |
|---|
| Brand | Sommer cable |
|---|
| Application | multimedia cable |
|---|
| Inner conductor | 14 |
|---|
| Inner conductor mm² | 0,22 |
|---|
| Connector-Brand | HICON |
|---|
| Additional function | High Speed with Ethernet, highflex, Conference-Serie High Quality |
|---|
| Type | HDMI |
|---|
| Type (detailed) | HDMI male |
|---|
