CABLE REELS– LOADED & PREWIRED

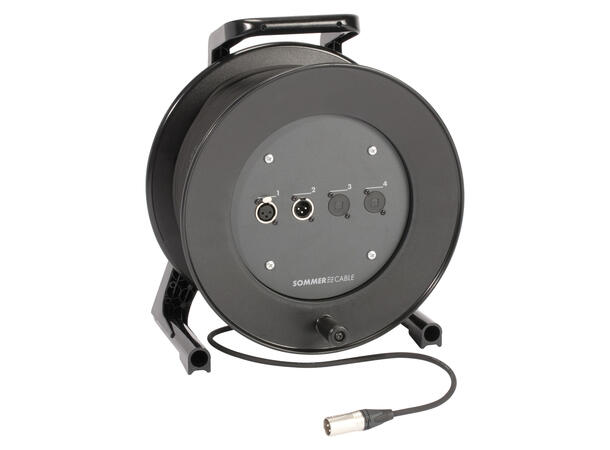

We supply a light-weight and very sturdy GT310 cable reel made by SCHILL which has a locking brake and a convenient carrying handle. It is loaded with our stage-proof and flexible SC-PRIMUS or SC-SOURCE microphone cables. The reel has a front panel and one NEUTRIK NC3MDLX and NC3FDLX socket or connector resp., the cable is terminated with either an NC3MXX cable connector or the Convertcon NC3FM-C and a transparent shrink-on tube for your personal labelling.
Configuration:
50,00 m Microphone Cable SC-Source MKII; 2 x 0,25 mm²; PVC Ø 6,50 mm; blue (200-0102)
1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), Type D M3, nickel coloured (NC3FDLX-M3)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), Type D M3, nickel coloured (NC3MDLX-M3)
1 x Sommer cable Front panel with 4 D-holes (XLR, etc.) for GT310, HT with Core-Ø 240 and sk-model, anthracite RAL7016 (RUND04)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel coloured (NC3MXX)
1 x NEUTRIK Cover cap for XLR MXX, XLR FXX black (BXX0)
Specifications:
| Length ft | 164,04 |
|---|
| Article number | SCDYG5000-BL |
|---|
| EAN | 4049371149570 |
|---|
| Colour | blue |
|---|
| Length m | 50 |
|---|
| Article number | SCDYG |
|---|
| Name | SC-Source MKII Highflex |
|---|
| Brand | Sommer cable |
|---|
| Application | Microphone Cable |
|---|
| Inner conductor | 2 |
|---|
| Inner conductor mm² | 0,25 |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Additional function | on cable spool |
|---|
| Type | XLR |
|---|
| Type (detailed) | XLR 3-pole female |
|---|
| Type (detailed) | XLR 3-pole male |
|---|
