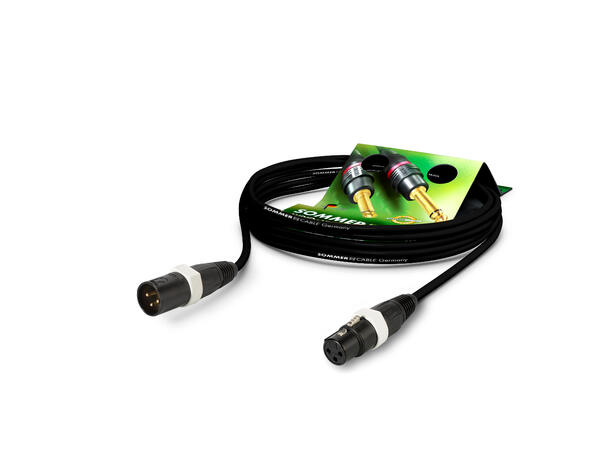

The SC-SQUARE 4-CORE MKII HIGHFLEX tonmeister cable has a helical mesh screen with metallised foil fleece and 4 x AWG25 wires with the opposite leads
combined pairwise. This is to optimise the electrical and capacitive values (37pF wire/wire) while ensuring a linear sound transmission.
The thick PVC jacket is robust and highly flexible. The screen is protected by an insulating sleeve. We supply this cable with gold-plated NEUTRIK NC3MX-B and NC3FX-B connectors and a transparent 2“ (5 cm) shrink-on tube (unshrinked) for your individual labels. For identification purposes we use removable colour code rings.
Configuration:
0,50 m Microphone Cable SC-Square 4-Core MKII; 4 x 0,20 mm²; PVC Ø 6,50 mm; black (200-0301)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, gold plated contact(s), straight, chrome-plated (NC3FX-B)
1 x NEUTRIK Code ring for XLR MX, XLR FX white (XCR9)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, chrome-plated (NC3MX-B)
1 x NEUTRIK Code ring for XLR MX, XLR FX white (XCR9)
0,1 x BTM095/TR
1 x Cardboard packaging for blister hooks, Design Sommer cable
Specifications:
| Length ft | 1,64 |
|---|
| Article number | SQ35U0050-SW-WS |
|---|
| EAN | 4049371154222 |
|---|
| Colour | black |
|---|
| Length m | 0,5 |
|---|
| Article number | SQ35U |
|---|
| Name | SC-Square 4-Core MKII Highflex |
|---|
| Brand | Sommer cable |
|---|
| Application | Microphone Cable |
|---|
| Inner conductor | 4 |
|---|
| Inner conductor mm² | 0,20 |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Type | XLR |
|---|
| Type (detailed) | XLR 3-pole female, Gold contact |
|---|
| Type (detailed) | XLR 3-pole male, Gold contact |
|---|
