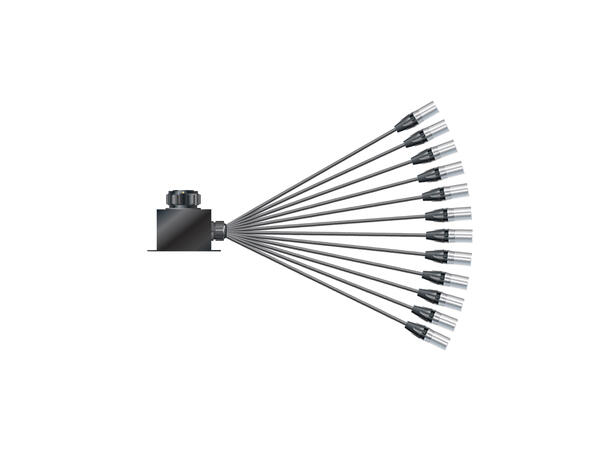

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK; alternatively we also offer a version with NEUTRIK Convertcons on the returns.
Configuration:
14,40 m Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; black (200-0401)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Panel socket, bayonet husk, black (HI-LK037FP)
1 x HICON Round-LK 37 female (CIR28), Cover cap, Bajonet, black (HI-LKCAP-F37)
1 x VE-HOUSING
12 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel coloured (NC3MXX)
Specifications:
| Length ft | 3,94 |
|---|
| Article number | ISV4-M12/00-0120 |
|---|
| EAN | 4049371030687 |
|---|
| In | 12 |
|---|
| Out | 00 |
|---|
| Configuration | separate grounding |
|---|
| Length m | 1,2 |
|---|
| Article number | MCORE-LKSP |
|---|
| Name | Multicore-Kabel Rund-LK <-> Spleiss |
|---|
| Application | Multicore cable with round LK connector -> Splice |
|---|
| Additional function | seperate grounding |
|---|
| Old article number | QMAR-M |
|---|
