We use the high-grade, silver-plated 8 mm and 11 mm SC-POLARIS Triax cable with a halogen-free, UV-resistant PUR jacket (–40 °C) and fit it with DAMAR & HAGEN, Fischer or LEMO-SMTE 311 M connectors incl. protective caps.
Configuration:

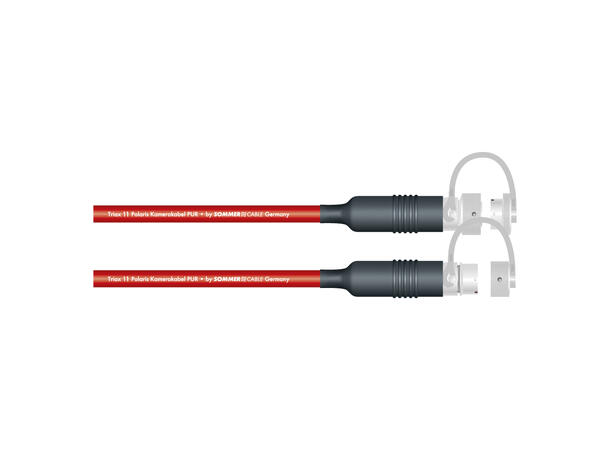

20,00 m Camera / TRIAX SC-Polaris; 1 x 1,40; PUR Ø 11,00 mm; red (601-0303)
1 x 1-3980-4700-1
1 x 2-1779-7463-1
1 x DAMAR & HAGEN Protection sleeve support for TRIAX-Connectors (2-3056-3363-2)
1 x Sommer cable Protective Bag for 30-pin Siemens type male/female + Triax connectors,
later assembly, grey (BAG-SIEM-O)
1 x 1-4000-4740-1
1 x 2-1780-7463-1
1 x DAMAR & HAGEN Protection sleeve support for TRIAX-Connectors (2-3056-3363-2)
1 x Sommer cable Protective Bag for 30-pin Siemens type male/female + Triax connectors,
later assembly, grey (BAG-SIEM-O)
1 x Cardboard packaging for blister hooks, Design Sommer cable
Specifications:
| Length ft | 65,62 |
|---|
| Article number | PO3E-11-2000 |
|---|
| EAN | 4049371047036 |
|---|
| Length m | 20 |
|---|
| Article number | PO3E-11 |
|---|
| Name | SC-Polaris MKII Highflex |
|---|
| Brand | Sommer cable |
|---|
| Application | Triax cable |
|---|
| Inner conductor | 1 |
|---|
| Connector-Brand | DAMAR & HAGEN |
|---|
| Type | Triax |
|---|
| Type (detailed) | Triax 11 male |
|---|
| Type (detailed) | Triax 11 female |
|---|
