Miscellaneous:
- Screen PIN 1, + = PIN 2, – = PIN 3
Configuration:

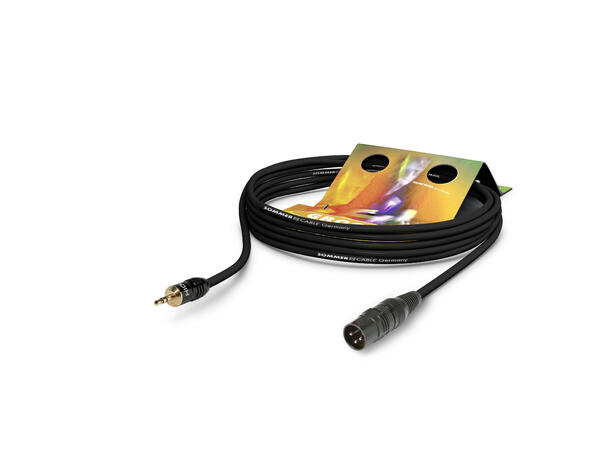

0,25 m Microphone Cable Club Series MKII; 2 x 0,34 mm²; PVC Ø 6,50 mm; black (200-0051)
1 x HICON Mini-jack (3,5mm), 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, black (HI-J35S02)
1 x HICON XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, black (HI-X3CM-M)
1 x HICON Metal cap, HICON-XLR metal cap, metal black (HI-XCAP0)
1 x HICON Code ring for HICON XLR straight transparent (HI-XC-TR)
1 x Cardboard packaging for blister hooks, Design Groove+
Specifications:
| Length ft | 0,82 |
|---|
| Article number | CSDQ-0025-SW |
|---|
| EAN | 4049371024181 |
|---|
| Colour | black |
|---|
| Length m | 0,25 |
|---|
| Article number | CSDQ |
|---|
| Name | Club Series MKII |
|---|
| Brand | Sommer cable |
|---|
| Application | Patch- / Insertcable |
|---|
| Inner conductor | 2 |
|---|
| Inner conductor mm² | 0,34 |
|---|
| Connector-Brand | HICON |
|---|
| Additional function | symmetrical |
|---|
| Type | jack (3,5 mm) |
|---|
| Type | XLR |
|---|
| Type (detailed) | XLR 3-pole male |
|---|
| Type (detailed) | Mini-jack male 3,5 mm stereo |
|---|
