SOMMER Aqua Marinex CAT.6-kabel PUR-SR, Ø 8,30 mm, sort SOMMER Aqua Marinex CAT.6-kabel PUR-SR, Ø 8,30 mm, sort

SOMMER Aqua Marinex CAT.6-kabel

PUR-SR, Ø 8,30 mm, sort

Varenr: 145945
Alt. varenr: 580-0241AQ
229,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

The dream of all IT pros is coming true, ...

for now your swimming pool will be integrated in your network environment, too! The SC-AQUA MARINEX CAT.6 PUR-SR network cable has the mechanical construction of a CAT.6 cable to meet the CAT.5e standard (Class D, 100 MHz at 100 m cable length) both in mobile and underwater use with respect to data. This cable has an extremely versatile field of applications. It may be used for controlling light signals or other visual effects, for realtime data transmission on dive sessions, as a computer link in sediment engineering, as a transmission cable in fish farming or in tunnel construction. It’s the ideal network line for a high-class installation in ship and boat building. Of course, the AQUA MARINEX cable series can also be used in the PA business or in the broadcasting van. The cables are slightly stiffer than standard PVC lines, yet way tougher. The SC-AQUA MARINEX CAT.6 PUR-SR network cable remains cold flexible down to –40 °C, which makes it your prime choice for winter events.


Advantages:

  • Sea- and freshwater resistant outer jacket
  • Transversely watertight by water-absorbing, pressure-compensating guard band
  • Halogen-free
  • Cold-flexible and reelable
  • UV- and microbe-resistant

Application:

  • Permanent laying in a max. water depth of 50 m
  • Installation on boats, ships and yachts
  • Demanding outdoor installation (e.g. at longtime events)
  • In- and outdoor installation in leisure parks and water oases
  • Outdoor laying in the snow
  • Reelable, for the broadcasting van technology


Specifications:

Article number580-0241AQ
NameSC-AQUA MARINEX CAT.6 PUR-SR
EAN4049371194495
PropertiesPUR
PropertiesHalogen-free / LSZH
PropertiesUnderwater / submerged
PropertiesAnalog
PropertiesDigital 75 O
Application areaELA 100 V
Application areaInstallation
Application areaMobile outdoor / indoor
Application areaStage / live
ApplicationCat.6
Colourblack
Colour detailedblack

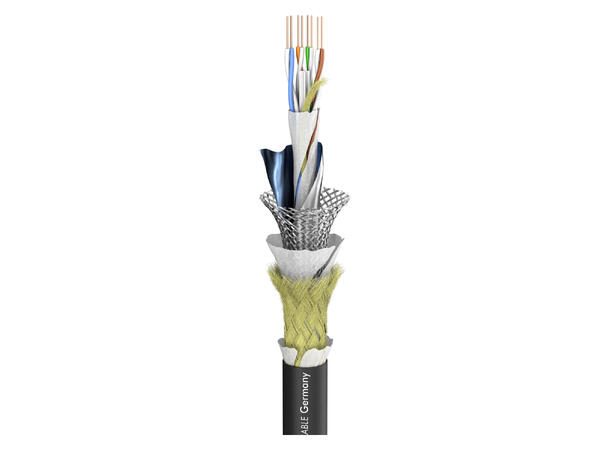

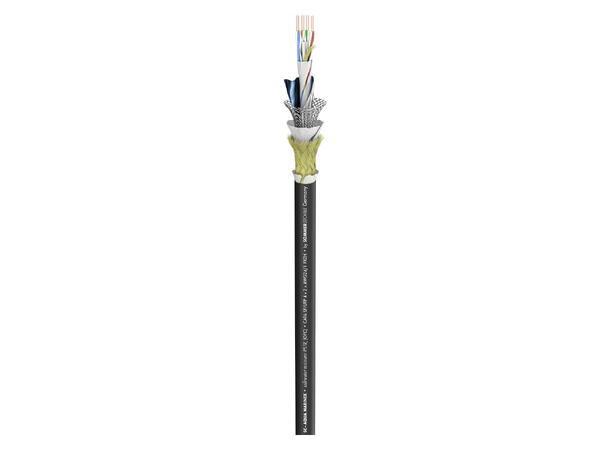

Construction (network)SF/UTP 4x2x0,51mm
Jacket materialPUR-SR
Jacket Ø mm8,30
Inner conductor Ø (network) mm0,51
AWG (network)24
ShieldingCopper braiding, tin-plated + AL / PT-foil + special protective banding
Shielding factor %100
Copper strands (network)1
Copper strand Ø (network) mm0,51
Conductor insulation materialHDPE
Weight per 1 m g84
UV-resistantyes
Fire load per m kWh0,57
Style variantround
Packingbulk stock
CAT-TypeCAT.6
Temperature min. °C-45
Temperature max. °C90
Width mm8,3
Height mm8,3
Capacity wire/wire at 1m (network) pF40
Capacity wire/wire at 1 ft. (network) pF12,192
Impedance (network) O100
Insulation resist. per 1 km (network) GO5
Insulation resist. per 1000 feet (network) GO1,524
Max. delay (skew)30ns @100MHz/100m
BPVo-EuroclassFca
