SOMMER LDFEHL04/00-3H00 Multimode

300m. HI-FIBER 4 x LC han/han. GT380

Varenr: 148841
Alt. varenr: LDFEHL04/00-3H00
50 734,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

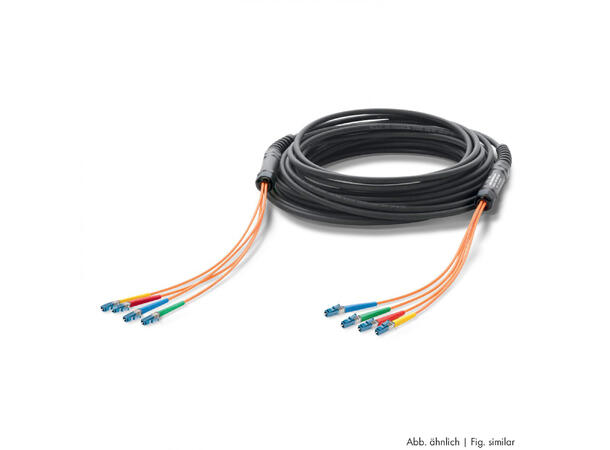

A high-speed OM3 fiber optical line...

with a halogen-free jacket for permanent installation is the basis for the ready-made LC and SC breakout cables. The breakouts are delivered on a sturdy wood reel (cable lengths < 30 m are delivered on a smaller space-saving plastic ring). The splice point has a solid double screw connection with a special silicone insert which protects and guides the hollow-core wires and also provides a good strain relief. The PE version has a longitudinal water-tight special jacket which is suitable for underground laying and offers rodent protection. The quality connectors we use are made in Germany, assembled by hand, machinepolished and measured professionally. Each cable is supplied with a test protocol.


Configuration:


300,00 m Optical fiber SC-Octopus-G; 4 x 50/125 µm OM3; PUR Ø 8,50 mm; black (590-0111-04-OM3)
1 x SCHILL Kabeltrommel, HT485-SW, core: 178 mm, thread width: 210 mm, metal (HT485-SW)

1 x HICON 4 x LC, metal-, Patch-female connector, Type D M3, black (HI-FIBER4-FD)
1 x HICON Protective cap with fastening cord for HI-FIBER4-FD (HI-FIBER4-FCAP)
1 x Sommer cable Front panel with 1 D-hole (XLR, etc.) for GT310, HT and SK-Modelle, anthracite RAL7016 (RUND01)

1 x HICON Push-Pull 4 x LC, metal-, Patch-male connector, straight, silver (HI-FIBER4-MC)



Specifications:

EAN4049371316651
Length m300
ReelH
ReelHT series
Article numberMCORE-LWL
BrandSommer cable
ApplicationDigital Fiber Distribution System
CableMultimode Fiber Optical Cable
TypeLC
Type (detailed)LC
Old article numberOALY-L
